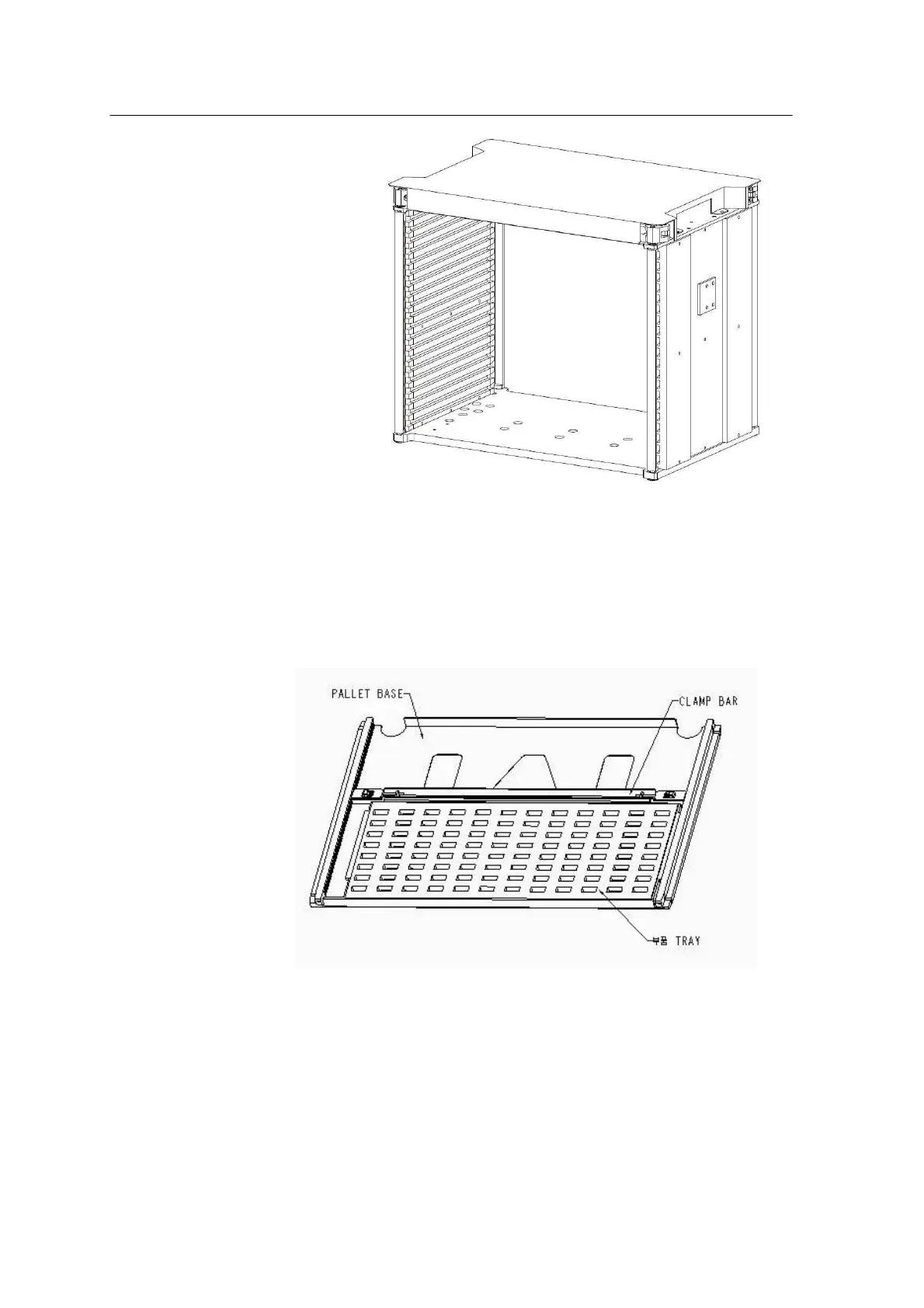

<그림 2-6 가 Magazine Assembly>
► Pallet Assembly: A plate that loads tray containing various parts.
Protects tray and helps safe loading of tray.
<그림 2-7 가 Pallet Assembly>
Operation
1. Y Axis
Transfers the pallet loaded in the magazine along the Y axis.
