Kaleido-X (4RU) Installation
Overview of the Kaleido-X System
Overview of the Kaleido-X System

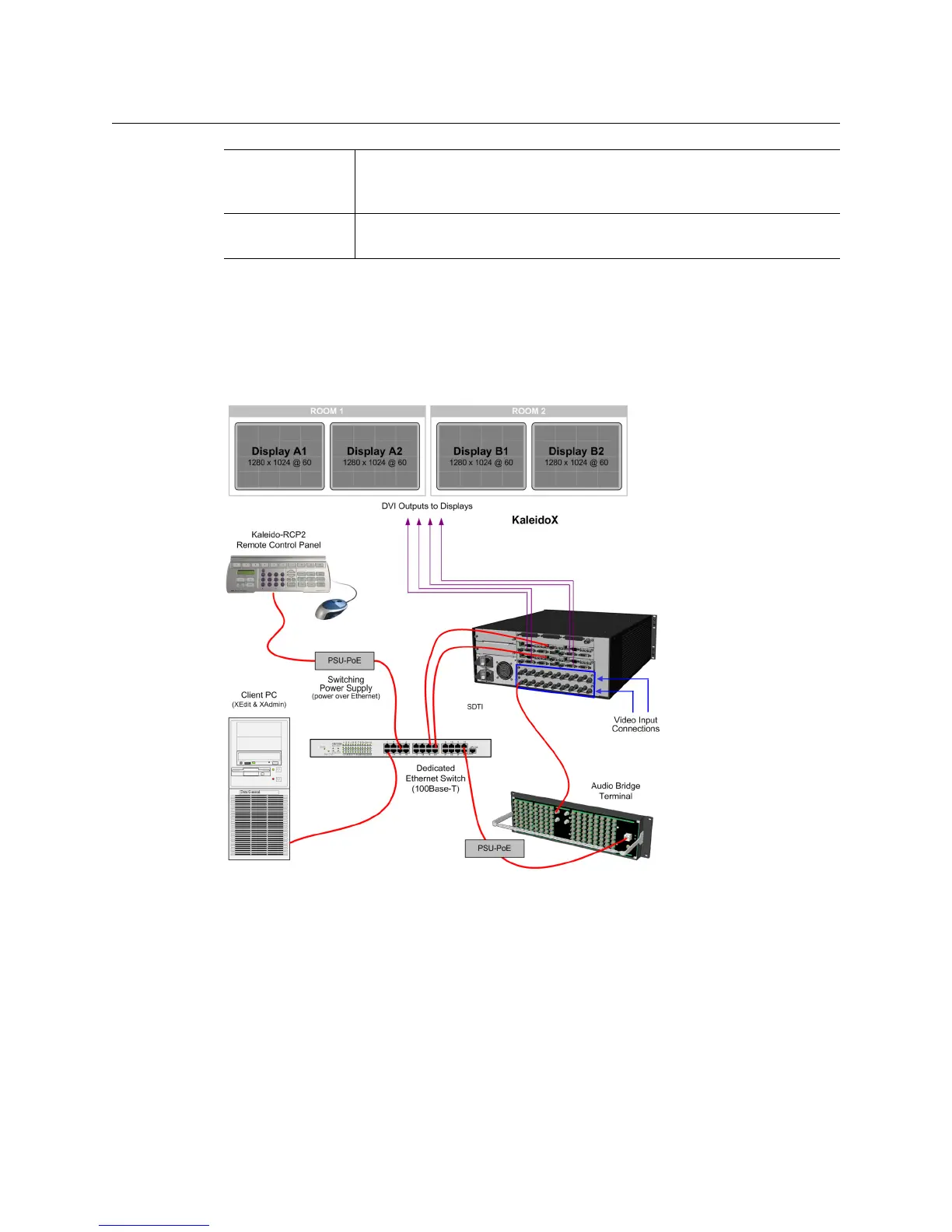

The following diagram shows a basic Kaleido-X (4RU) system configuration, with a single
Kaleido-X
(4RU) feeding 4 monitor wall displays. The Kaleido-RCP2 (if available) would be
located on the production desk, while the Client PC could be anywhere with internet access
to the network.
The diagram below shows the Kaleido-X multiviewer system and its inputs and outputs.
Examples of the various external devices that connect to the multiviewer are also shown.
Multi-room
layouts
Intuitive layout editor software allows rapid creation of multi-room
layouts, which can be recalled quickly from networked remote control
panels.
Highly robust Highly robust design, with multiple points of redundancy, and no single
point of failure for reliable 24/7
operation.
