Enclosure Installation
Version 5.4 TX3 Telephone Access System Installation and Operation Manual 27
LT-969 Copyright 2019
2.2.2 Installing the Universal Slim-line enclosure

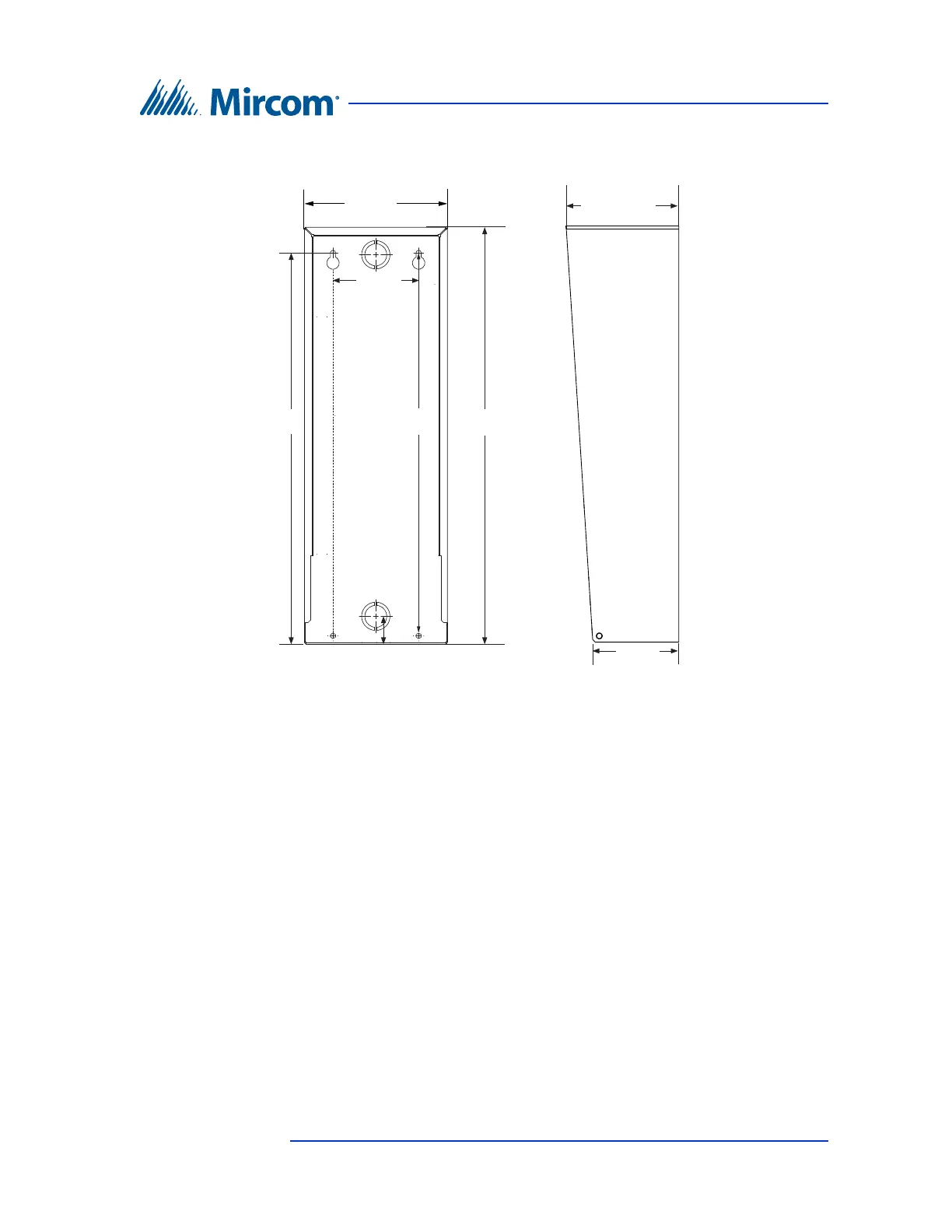

Figure 3. Dimensions of Universal Slim-line models
15 17/32”
(394 mm)
1 27/64”
(36 mm)
(86 mm)
3 13/32”
4 1/2” (114 mm)
3 3/8”
(86 mm)
15 13/64”
(386 mm)
16 5/8”
(422 mm)
5 27/32”
(149 mm)
