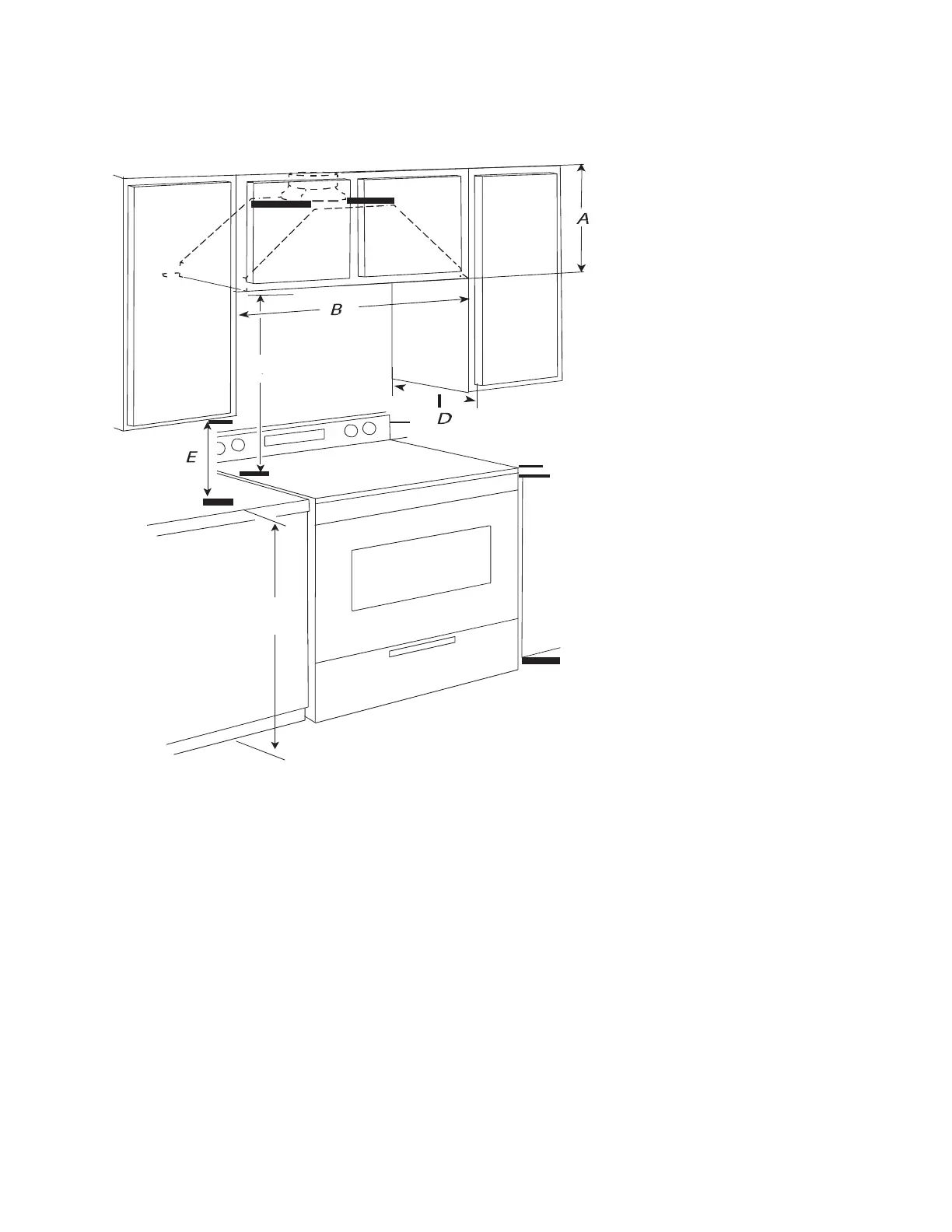

Dimensions of the cabinet
C
F
A. Minimum height of the cabinet: 12” (30.5 cm)
B. Width of the opening of the cabinet : 30” (76.2 cm)
C. Minimum suggested distance:
28’
’ (71.12 cm) from the top of an electric cooking surface and
30‘’
(76.2cm) from the top of a gas cooking surface.
D. Depth of the cabinet: 12” (30.5 cm)
E. Minimum clearance between the work plan and the bottom of the cabinet: 15” (38.1 cm)
F. Standard Height of lower cabinet: 36” (91.44 cm)
For installation from the cooking surface of an electric cooktop:
Assemble the hood so that the lower edge is no less than
28''
(71.12 cm) above the cooking surface.
For installation from the cooking surface of a gas cooktop:
Assemble the hood so that the lower edge is no less than
30''
(76.2 cm) above the cooking surface.
