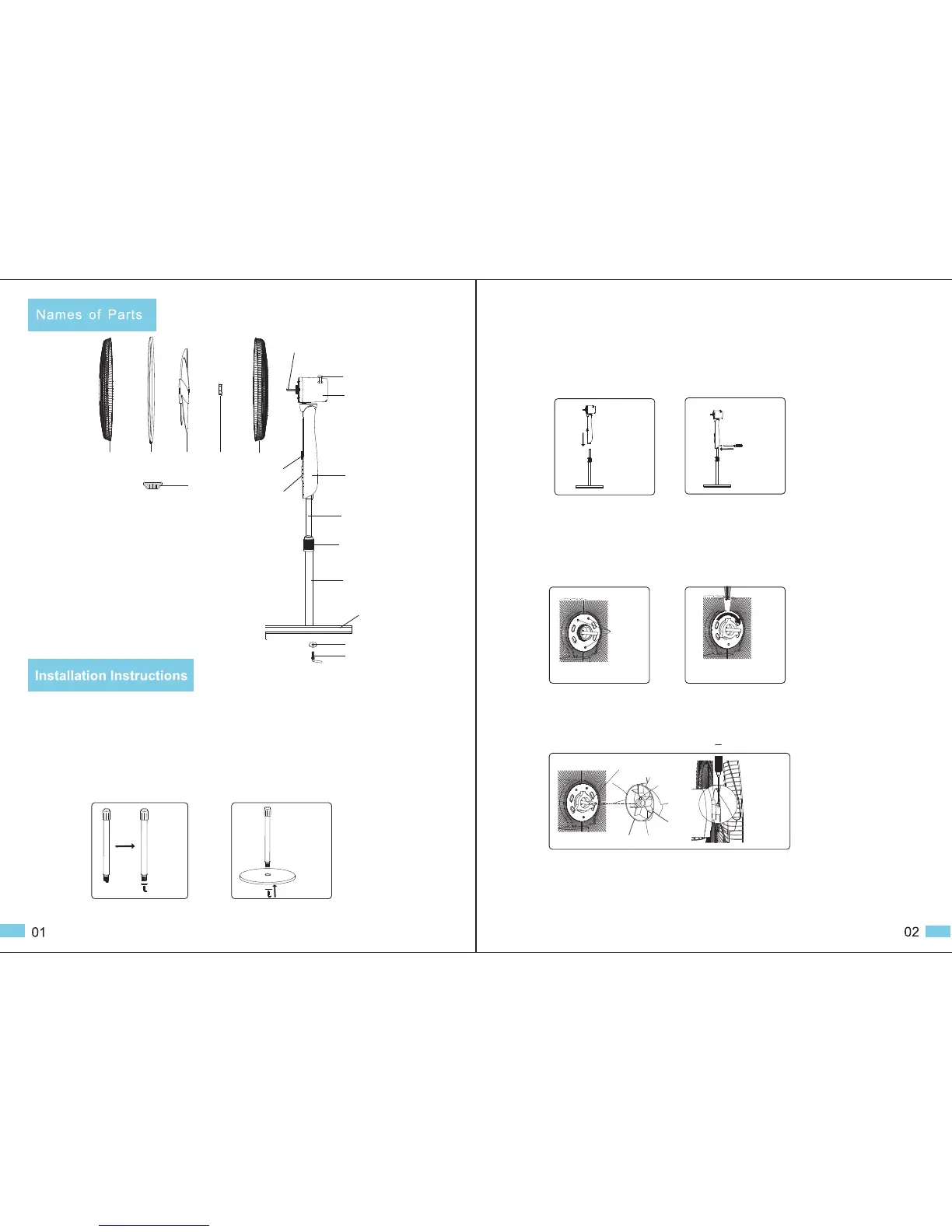

Mistral MSF1835 - Installation Instructions; Installing the stand; Installing the main body; Installing the rear guard

1、Front guard
8、Motor housing
2、Guard ring
9、Timer knob
3、Blade
4、Grille lock nut
5、Rear guard
7、Sway Tube
6、Motor shaft
12、Slide pipe
13、Connecting Rod
14、Stand
15、Base
10、Key switch
16、washer
17、7 shape bolt
11、Fan shell
18、Clip
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
11
18
Follow the instructions below to install the fan. Keep the carton and shipping materials for future storage.
1.Installing the stand
① Remove the Washer(16) and 7 shape bolt(17) at the bottom of the stand(14).(see Figure 1)
②Insert the projection of the stand(14) into the groove of the base(15).(see Figure 2)
③Tighten the 7 shape bolt(17) to secure the stand(14) to the base (15). Use the Washer(16)for support.
(see figure 2)
Fig. 2
Fig. 1
2.Installing the main body
① Insert the slide pipe(12) into the hole of the fan shell(11).(see Figure 3 )
② Tighten the screw with a screwdriver.(see Figure 4)
3.Installing the rear guard
① Remove the grille lock nut(4) on the motor housing(8).
② Align each of 3 projections and 3 holes, then fix the rear guard(5) to the motor housing(8).
(see Figure 5)
③ Tighten the grille lock nut(4).(see Figure 6)
4.Installing the blade
①Align the slot on the motor shaft(6) with the screw on the blade(3). Tighten the screw with
a screwdriver.(see Figure 7)
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Projections
Fig. 7
screw
slot
