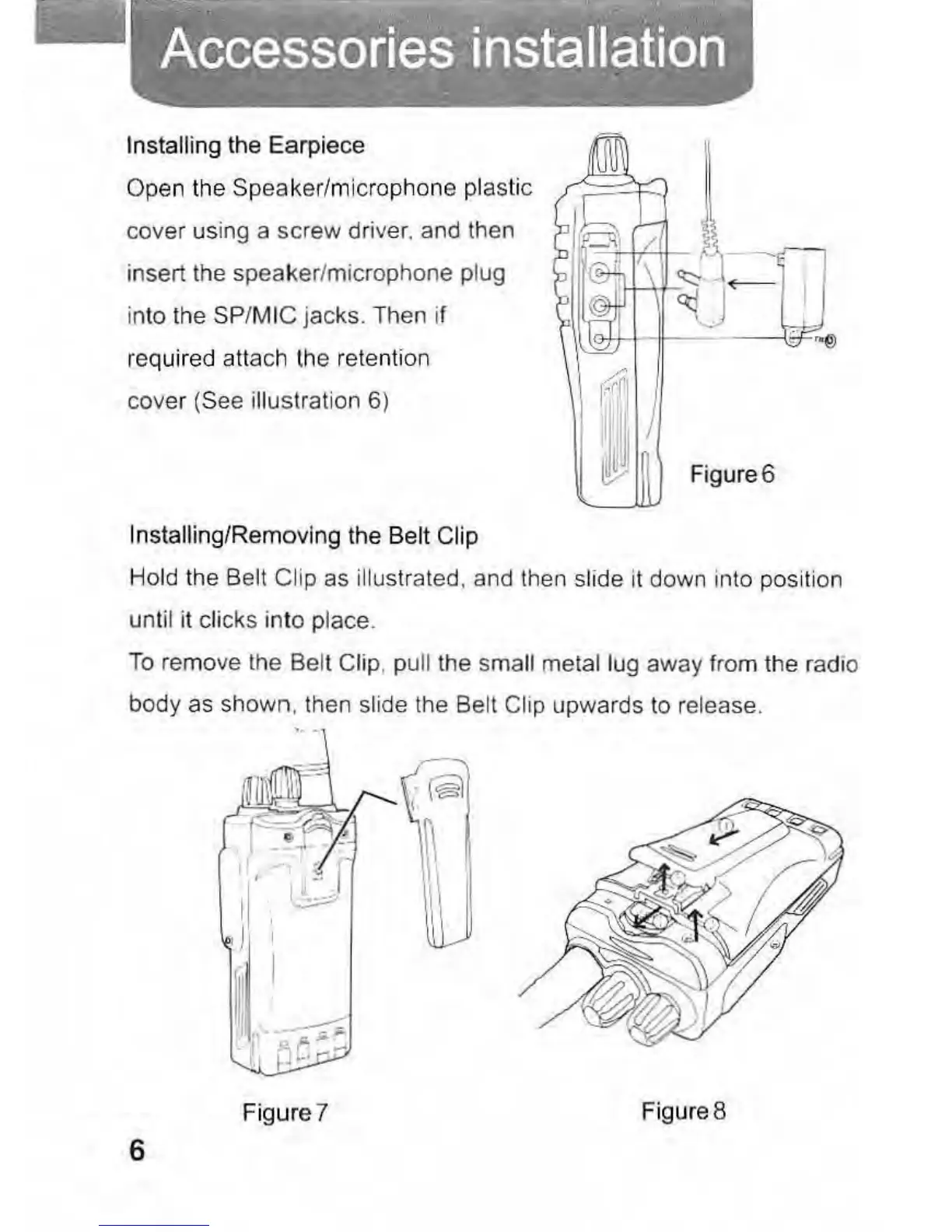

Accessories
installation
Installing the Earpiece
Open the Speaker/microphone plas
ti
c
cover using a scr
ew
driv
er
. and then
insert the speaker/microphone
plug
in
to the SP/
MI
C jacks. Then if
required attach
th
e retention
cover
(See illustration 6)
Installing/Removing the Belt Clip
Fi
g
ure6
Hold the Belt Clip as illust
ra
ted, and then slide it down into position
until it clicks into place.
To
re
mo
ve the Belt Clip, pull the small metal lug away from the radio
body as shown. then
sl
i
de
the Belt Clip upwards to release.
Figure 7
Figure8
6
