MITJAVILA V2 - 26. LED Strip Installation (Optional); Cut and Prepare LED Strips; Install LED Strips on Motor Side

Page 26
Guide.

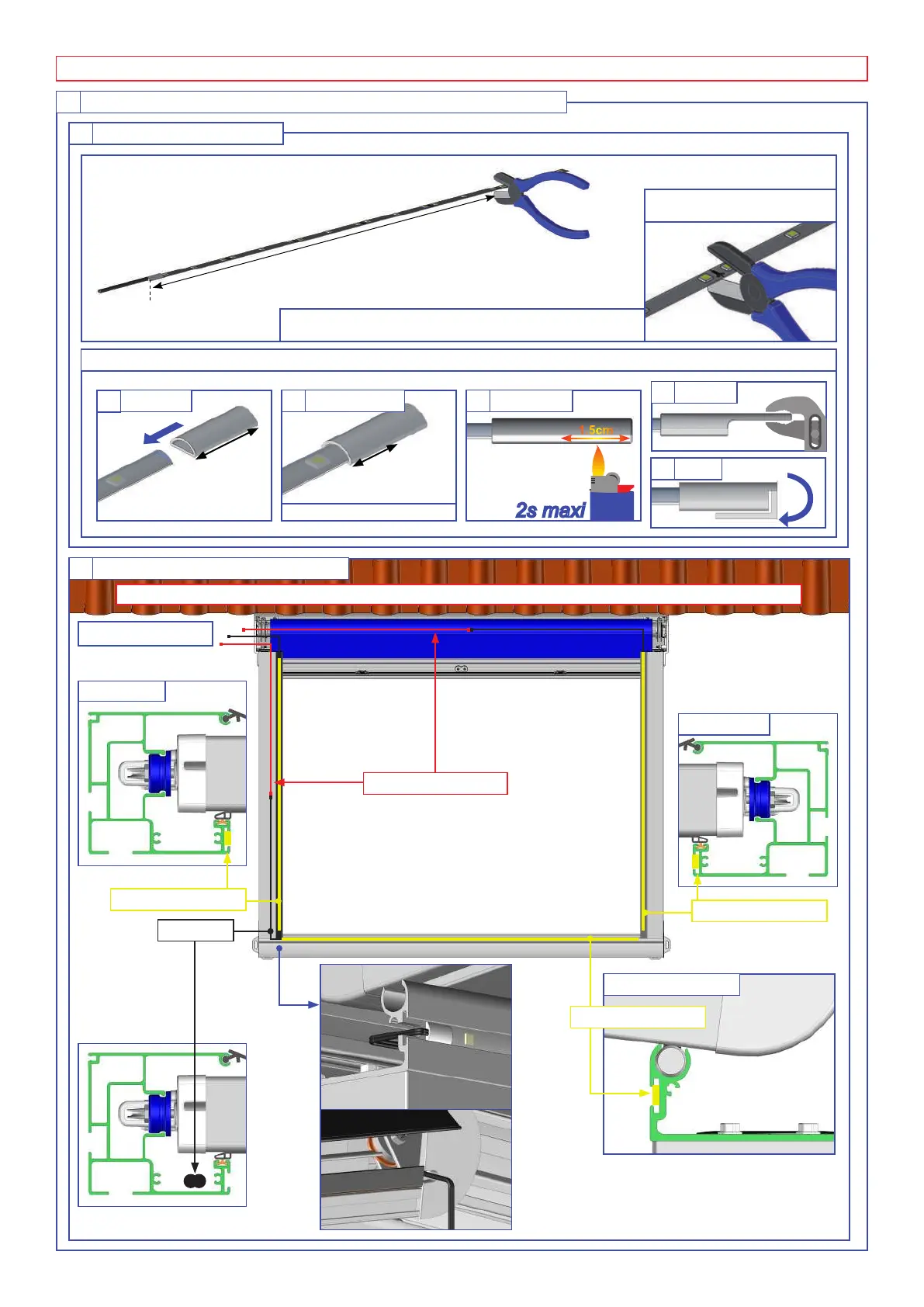

26 Installation of LED strips. LED lighting option only.
Cut the LED strip.A
Support prole length: 10 cm
CAUTION : The LED strips have a cutting pitch of 10 cm.
Adapt the length of the strips to the length of the support prole.
Cut to be made with scissors or
welding.
Heat shrink sleeve. To be carried out at the cutting level of the LED strip.
E
C
Do not cover the LEDs.
B
A
2s maxi
D
1.5 cm overlap
1.5cm
3cm
Installation of the LED strips.B
Slide. In its place. Heat up.
Hold.
Fold.
See the manual supplied with the automatism for the connection and programming of the LEDs.
Motor side.
Front cassette.
LED strip
LED strip
Cable extension
Double span pergola, perform the operations on pages 17 to 25 for the second span.
Guide.
LED strip
Cable
