MITJAVILA V2 - 28. Load Bar Finishing Profile & 29. Cassette Cover Installation; Install Load Bar Finishing Profile; Install Cassette Covers (Double Span)

Page 28
Installing the PU3704 load bar nishing prole.28
In position
A
B
CLIP
Note : PU3704 is placed under the guide joints.

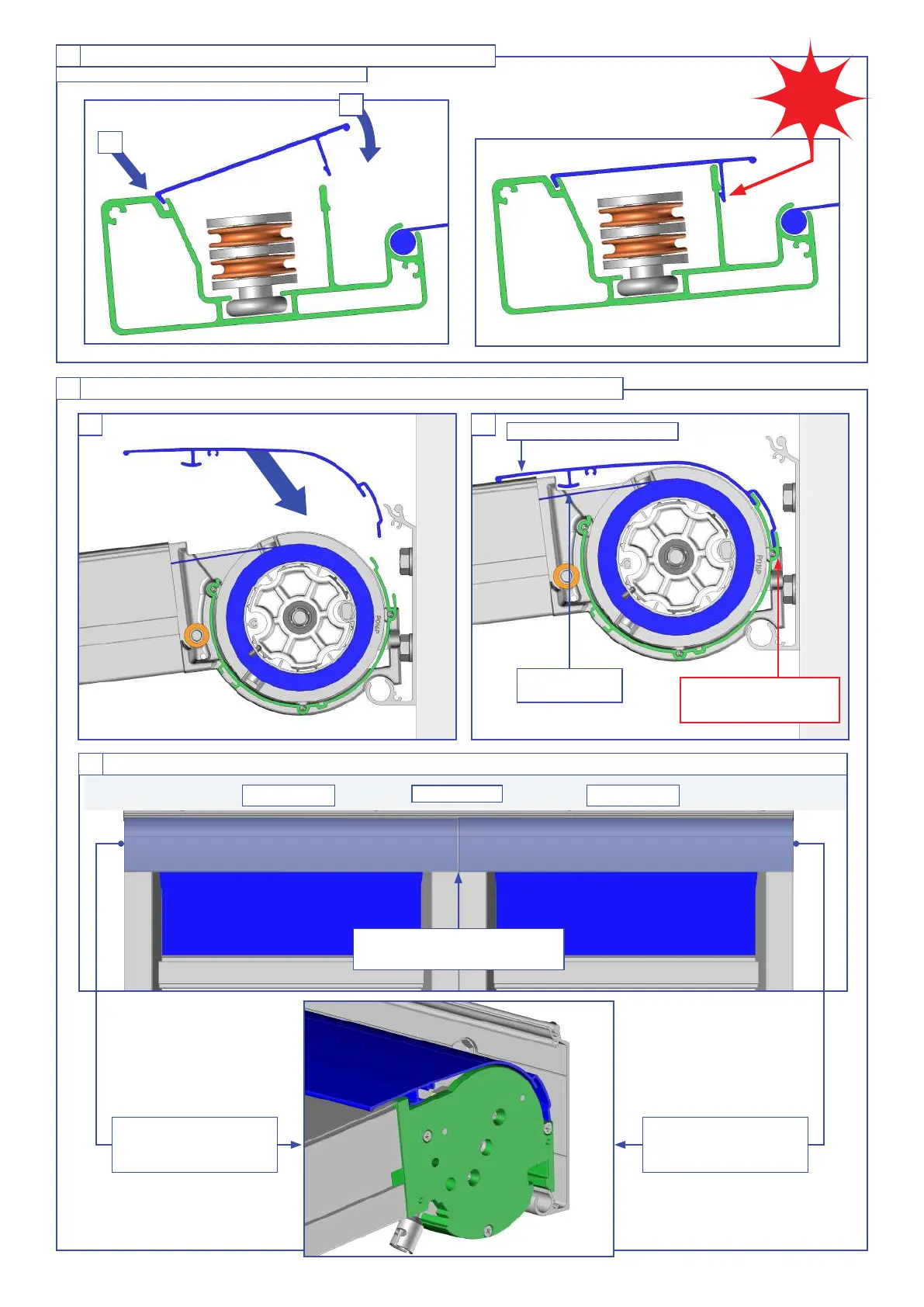

Installing the CE135 06 cassette cover of the cassette assembly.29
VUE DESSUS
A B
In position
Double span pergola. Place the two cassette covers CE135 06 for each span.C
CE135 06 CE135 06
In contact through the center.
Carry out the sealing.
Flush with the cap.
Idem single span per-
gola.
On the cassette
assembly caps.
CAUTION, make sure the co-
ver is guided along its entire
length.
Above the guides.
Flush with the cap.
Idem single span per-
gola.
