MITJAVILA V2 - 30. Cassette Finishing Caps & 31. Wall Profile Cover; Install Cassette Assembly Finishing Caps; Install Wall Profile Cover

Page 29

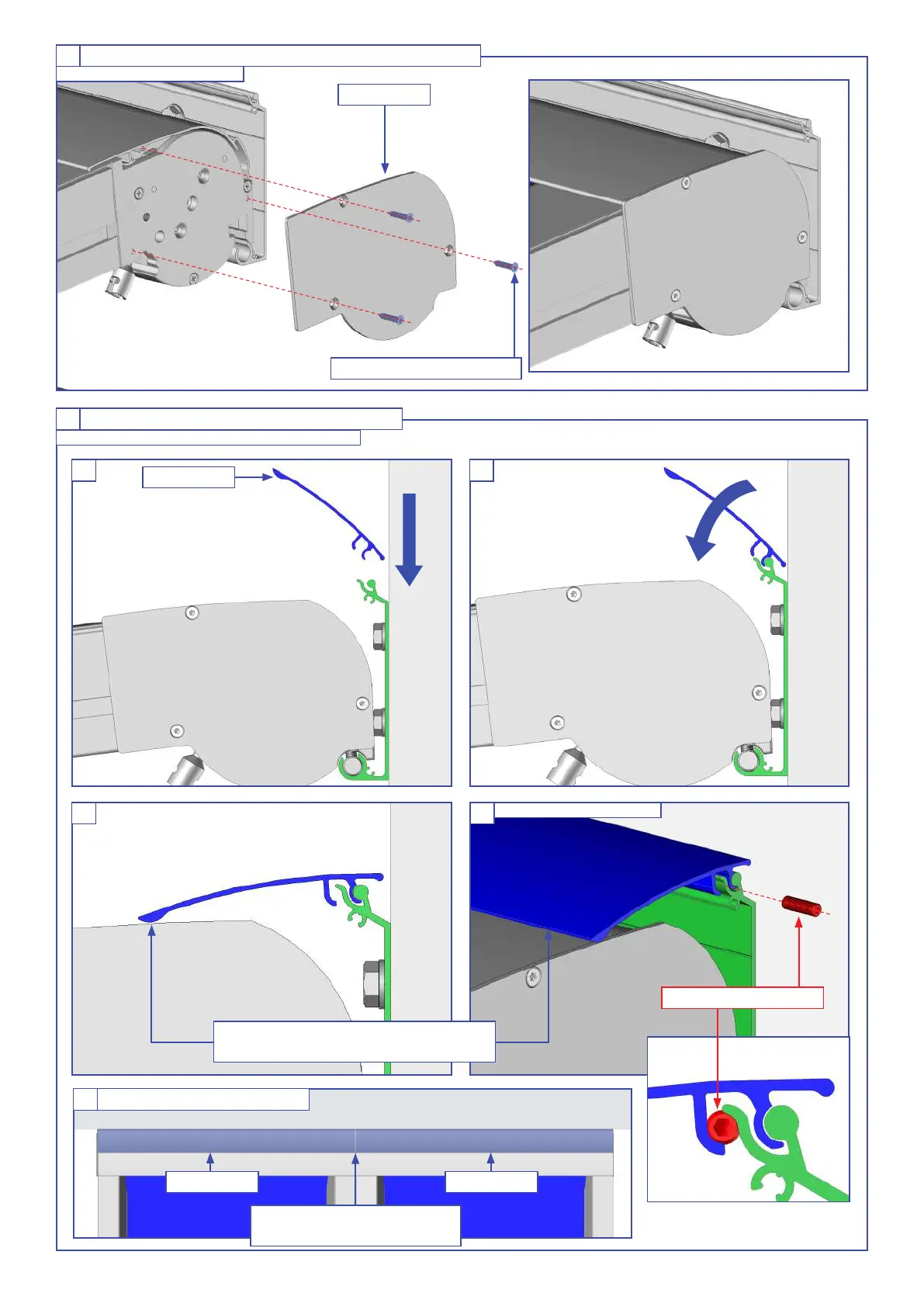

Installing the cassette assembly nishing caps.30
ISO14586ST4.2x25mm
JPV11 07
Note : to be performed on both sides.
Installation of the wall prole cover.31
DIN913M6x20mm
D
Note : to be done on both sides.
A B
C
In position
Make sure the cover is in contact with
the cassette assembly.
PPV20 03
Note : PPV20 03 is the same length as the wall prole.
Pergola greater than 7m.E
In contact in the center.
Carry out the sealing.
PPV20 03 PPV20 03
