MITJAVILA V2 - 32. Wall Profile Cover Sealing & 33. Front Cassette Installation; Seal Wall Profile Finishing Cover; Install Front Cassette

Page 30

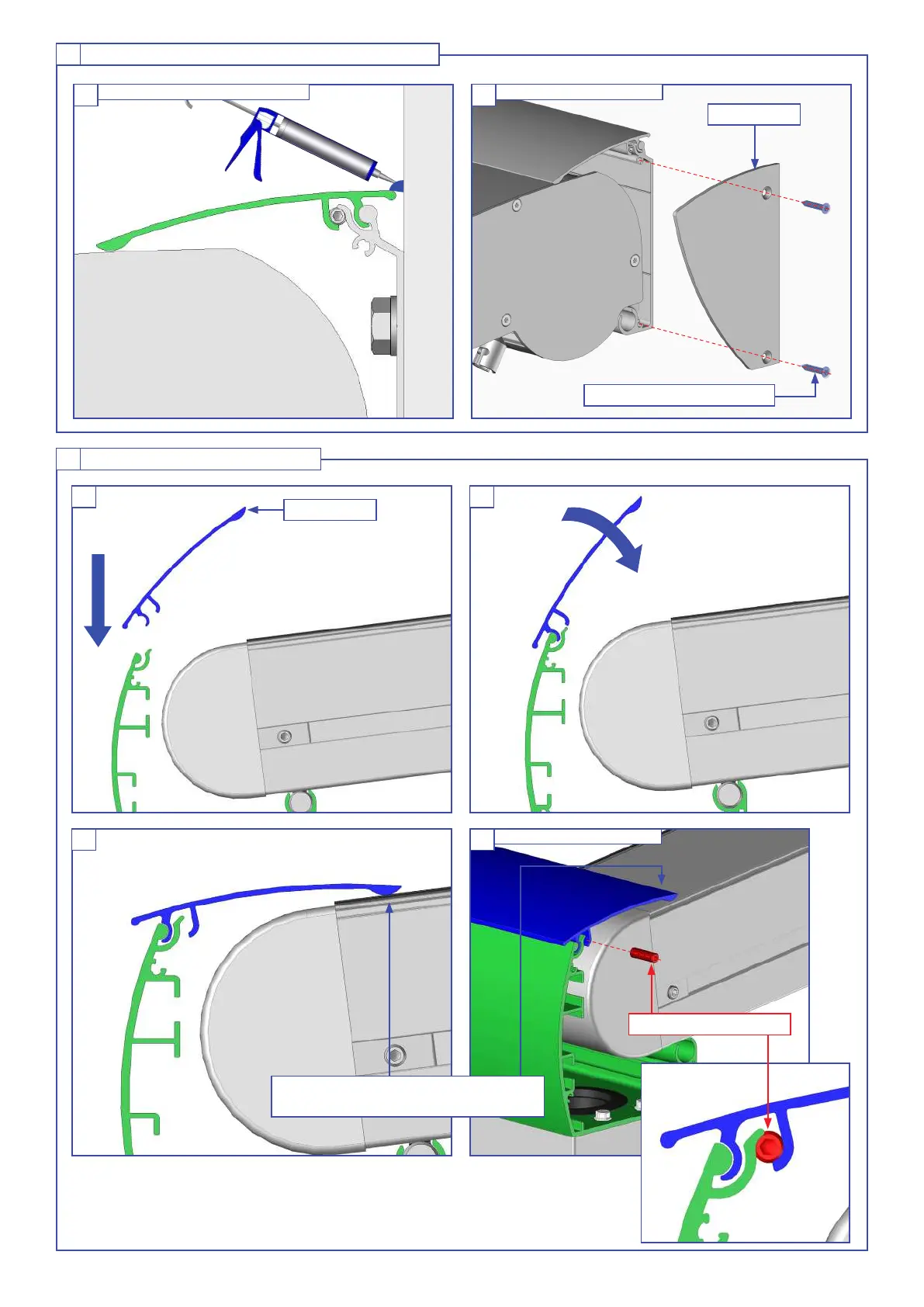

Sealing of the wall prole nishing cover.32
A
Note : to be made across the entire width.
B
Note : to be done on both sides.
ISO14586ST4.2x25mm
33 Installing the front cassette.
DIN913M6x20mm
D
A B
C
In position
Make sure the cover is in contact with
the guides.
PPV20 03
JPV11 08
Note : to be done on both sides.
