MITJAVILA V2 - 1. Wall Profile Installation (Up to 7 m); Pre-drill the Wall Profile; Mark and Install Wall Profile

Page 5

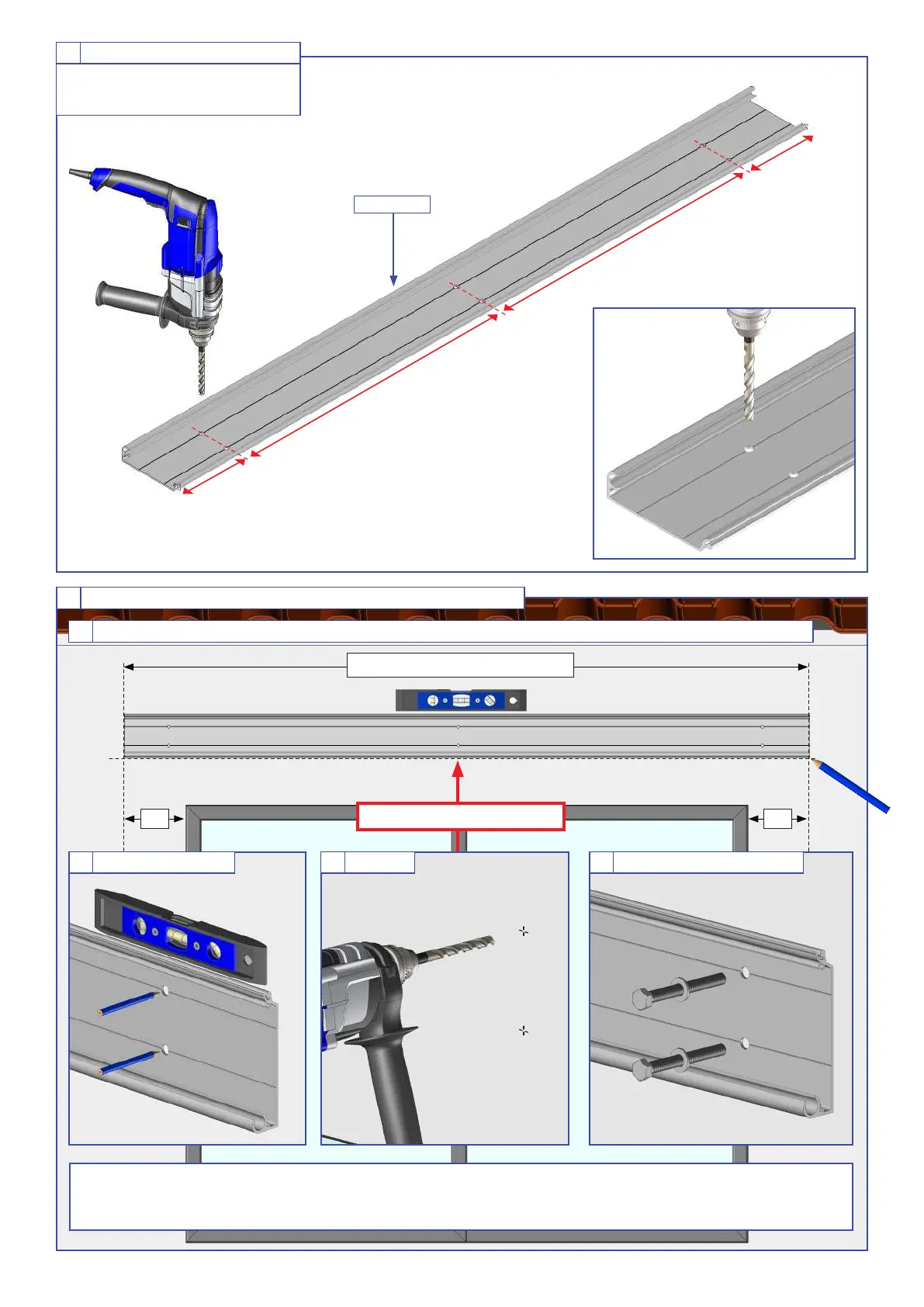

1 Pre-drill the wall prole.
150mm
Note : Make 3 xings of 2 screws per
span. For pergolas longer than 7 m, drill
the same holes in the two wall proles.
2000mm Maxi
150mm
2 Installation of the wall prole. Pergola up to 7m wide.
=
Installation height
=
Adapt the xing to the nature of the wall. Fixing with Ø10 mm screws. Kit of screws and washers not sup-
plied. In the case of installation with a chemical sealing kit, refer to the instructions for use of the product
used.
B Mark the holes. D Fix the wall prole.
A Mark the installation height on the wall and place the wall prole.
C Drill.
Total width - 6 mm
PPV11 02
2000mm Maxi
