Installing the Loop Handle Assembly
• Fix the Clamp to the Drive Shaft, then pinch the flat lugs together on the underside of
the Clamp and slide them into the slot in the Lower Handle.
• Fit the Rubber Block and Upper Handle over the Clamp, ensuring the arrow on the
Upper Handle points towards the Cutter Head.
• Insert the Fixing Screw through the Upper Handle, Lower Handle and Clamp, do not
tighten.
• djust the handle to a comfortable working position then tighten the Fixing Screw.

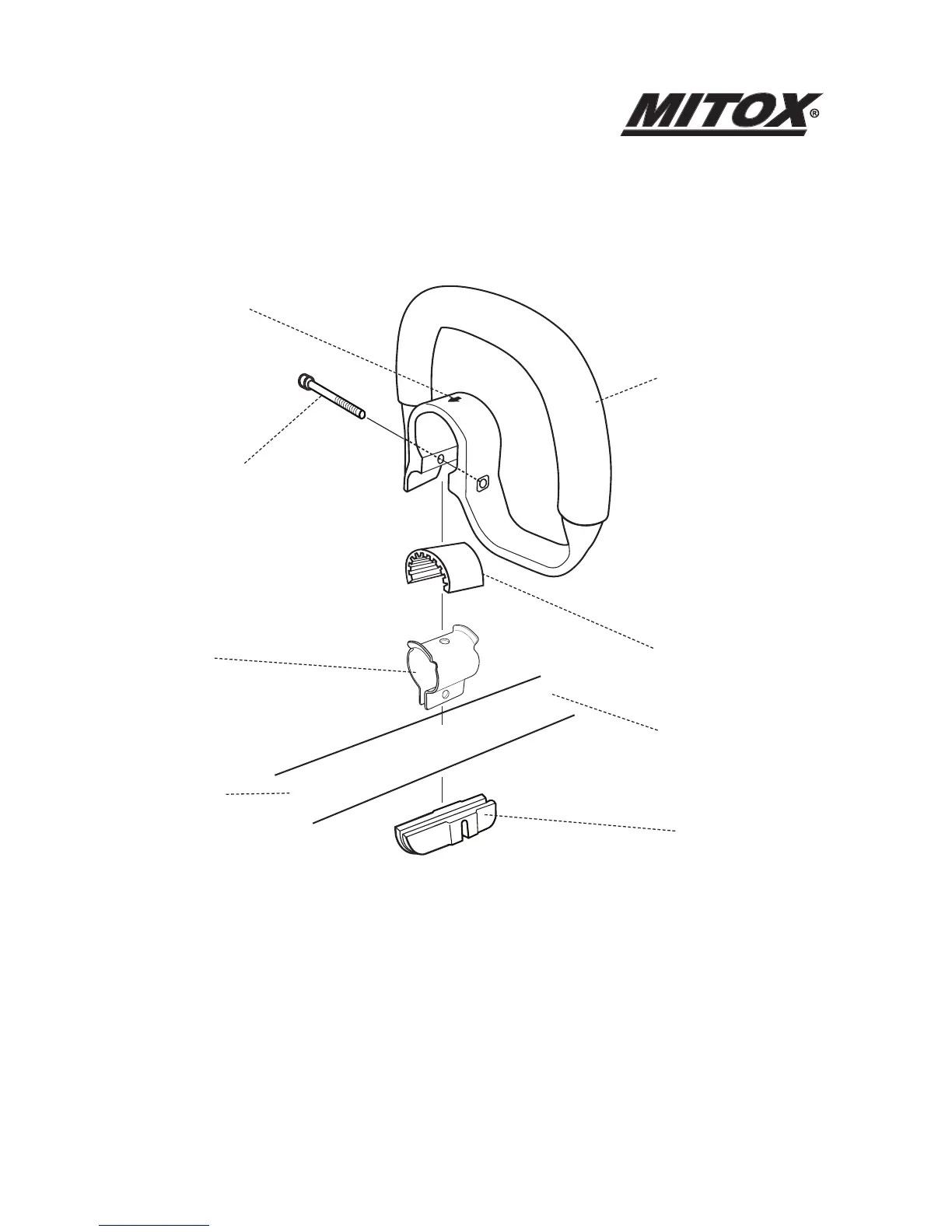

Upper Handle
Rubber Block
Fixing Screw
Clamp
Lower Handle
Drive Shaft To
Cutter Head
Drive Shaft
To Engine
Ensure rrow
Points Towards
Cutter Head
