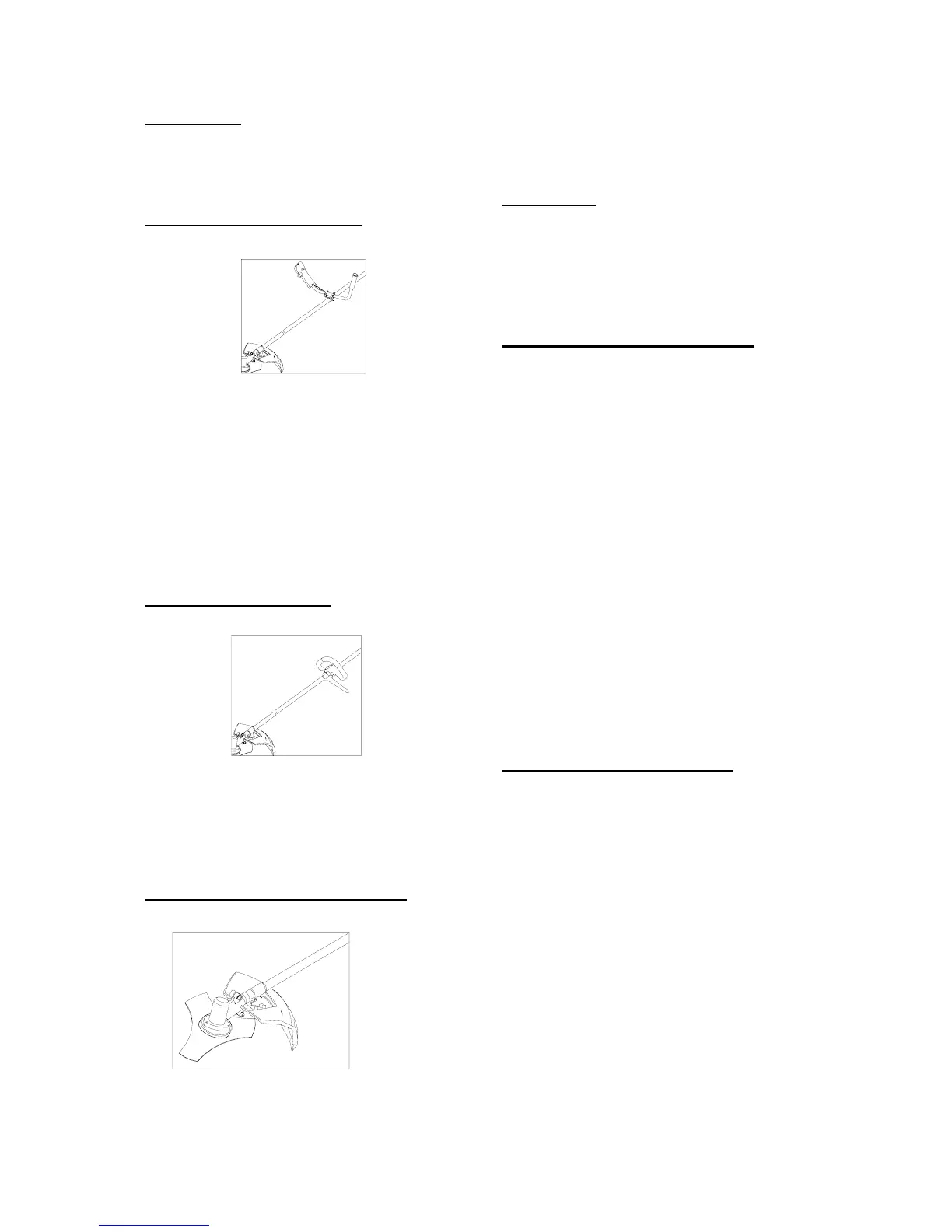

ASSEMBLY
Before operating, make sure that all parts
have been correctly assembled
HANDLEBAR ASSEMBLY (‘U’handle)
Take the right hand half handle (with the
throttle switch) and place it on the right
side of the mounting bracket. Similarly
mount the left hand half handle on the left
side. Secure the handle support bracket
with the 4 fixing screws provided and
tighten loosely. Adjust the handles on the
shaft to a comfortable working position
then tighten the fixing screws securely.
HANDLEBAR ASSEMBLY (Loop handle)
Fix the loop-handle to the shaft using the
rubber block provided. Adjust to a
comfortable working position then tighten
the fixing screws securely.
FITTING THE SAFETY GUARD.
(all models)
The safety guard must be secured to the
support, near the gear case, with the four
screws and two plates provided.
HARNESS :
The harness provided has foam hip
protection. It must be used with the belt on
the left shoulder and the hip protection on
the right side.
BALANCE OF THE MACHINE.
Before using the machine it is important to
adjust the harness to achieve a well
balanced operating position. Do this as
follows:
Place the belt on your left shoulder and
hook to the machine.
-Adjust the position of the fixing bracket
on the shaft of the machine to obtain an
even balance between the front and rear of
the machine.
-If you use the machine the with nylon
head, the harness must be adjusted so that
the distance between the ground and the
nylon head is between 0 and 300mm.
- If you use the 3 tooth blade, the harness
must be adjusted so that the distance
between the ground and the blade is
between 100 and 300mm.
TYPES OF CUTTING HEAD.
For safe and effective operation, make sure
you select the most appropriate cutting
head for the required application.
The 3 tooth blade and the nylon head
provided with the machine are suitable for
most applications. Use only genuine,
original spare parts that are supplied by the
manufacturer. Failure to do so could cause
injury.
Never use steel wire or other substitute
materials. Only use the parts
recommended by the manufacturer.
