Assembling the Pole Pruner

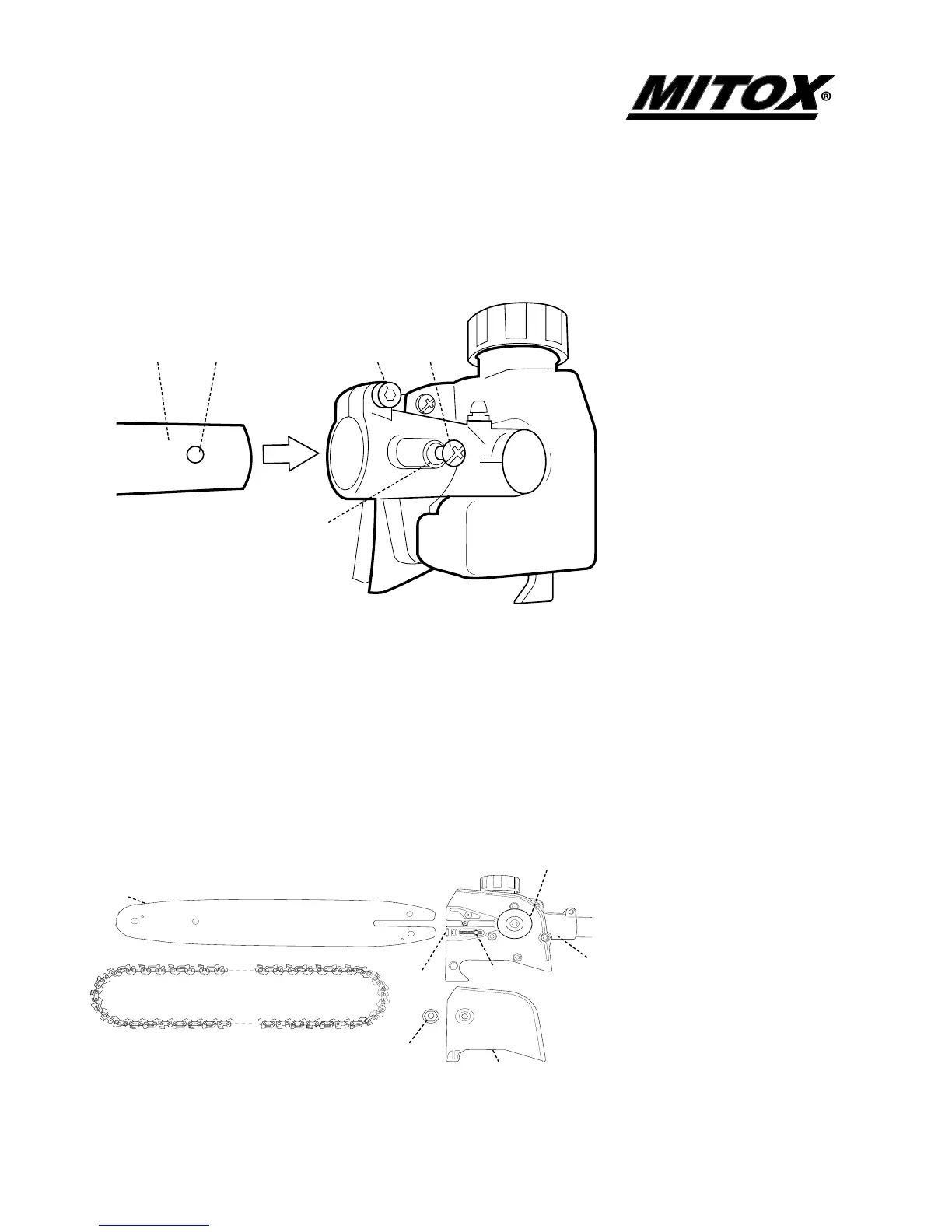

Attaching the Pruning Mechanism
• Remove the locating screw (1).
• Using a 4mm Allen key, loosen the clamping bolt (2).
• Slide the drive shaft (3) into the gearbox until the locating hole (4) in the drive shaft
is visible through the locating hole in the gearbox (5).
• Insert the locating screw (1) into the gearbox and tighten.
• Using a 4mm Allen key, tighten the clamping bolt (2).
Install the guide bar and the saw chain on the gearbox as follows:
(1) Guide bar
(2) Saw chain
(3) Gearbox
(4) Sprocket
