Attaching the Tools / Extension Shafts to the Power Unit

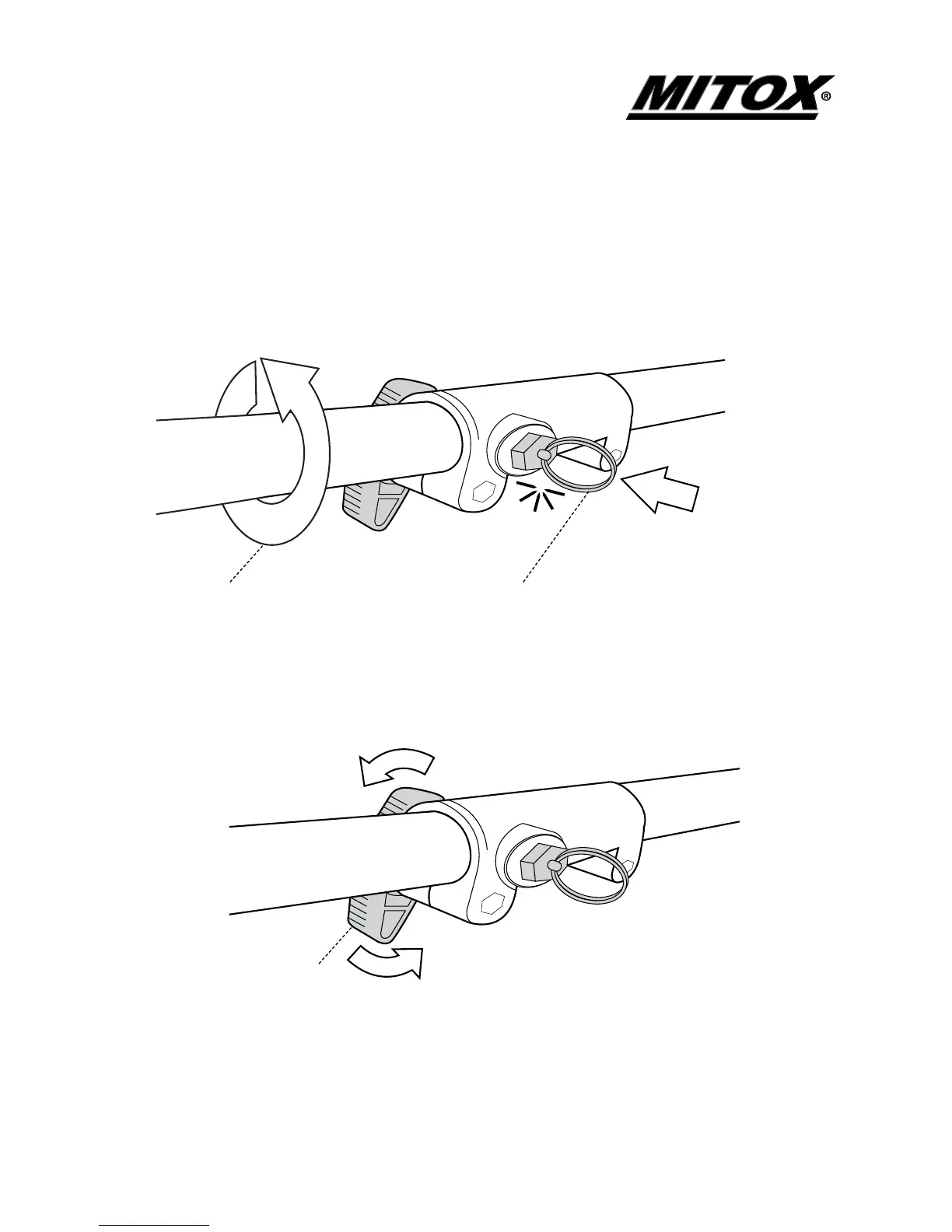

• After the attachment drive shaft is in the coupler, release the locator pin.
• Turn the attachment drive shaft (5) until the locator pin engages with the locating hole (6) in the
drive shaft, when this has happened it will not be possible to twist the drive shaft.
• Secure the drive shaft by tightening the clamping wing nut (7).
5 6
7
