Mitsubishi Electric AE1000-SW User Manual

E-12
3.2 BIF-CON

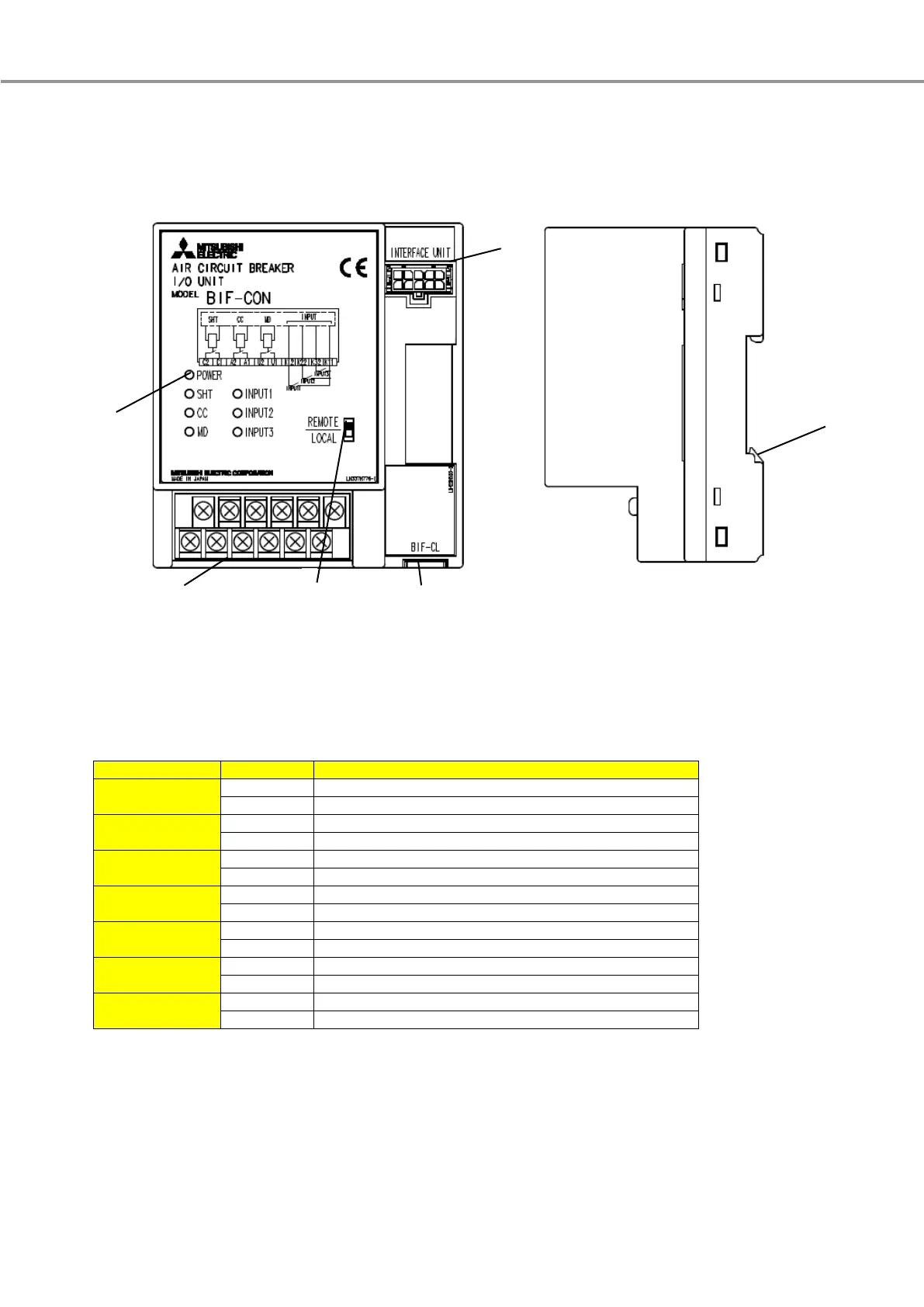

The unit overview is shown as below.
●(A) LEDs
Name
Indication
Description
POWER
ON
Power is supplied from BIF-MD correctly
OFF
Power is not supplied
SHT
ON
1a contact for SHT
1)
is closed (500ms)
OFF
1a contact for SHT
1)
is open
CC
ON
1a contact for CC
2)
is closed (500ms)
OFF
1a contact for CC
2)
is open
MD
ON
1a contact for MD
3)
is closed (5s)
OFF
1a contact for MD
3)
is open
INPUT1
ON
INPUT1 signal is ON
OFF
No INPUT1 signal
INPUT2
ON
INPUT2 signal is ON
OFF
No INPUT2 signal
INPUT3
ON
INPUT3 signal is ON
OFF
No INPUT3 signal
■1): SHT is a type name of AE-SW Shunt trip device which open the main contact via remote control.
For details about SHT, please see “AE-SW INSTRUCTION MANUAL” .
■2): CC is a type name of AE-SW Closing coil which close the main contact via remote control.
For details about CC, please see “AE-SW INSTRUCTION MANUAL” .
■3): MD is a type name of AE-SW Motor charging device which charges the closing spring for motor operating.
For details about MD, please see “AE-SW INSTRUCTION MANUAL” .
Fig 3.8: Front view
Fig 3.9: Side view
A
B
C
D
E
F
