Parameters Copying and verifying parameters on the operation panel
FR-F800 5 - 551

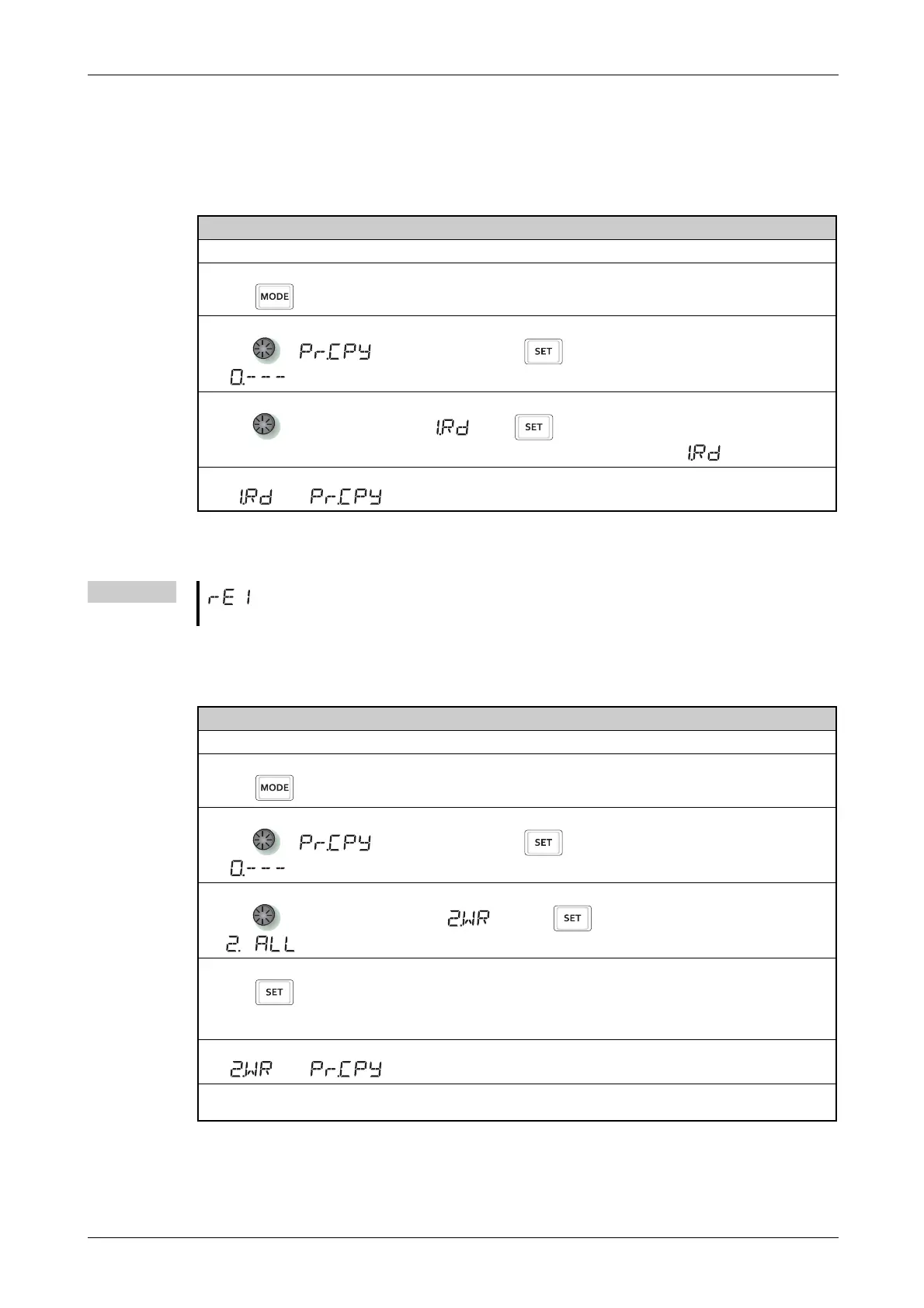

5.15.1 Parameter copy
Inverter parameter settings can be copied to other inverters.
Reading the parameter settings of the inverter to the operation panel
Copying parameter settings read to the operation panel to the inverter
Operation
Connect the operation panel to the source inverter.
Parameter setting mode
Press to choose the parameter setting mode. (The parameter number read previously appears.)
Selecting the parameter number
Turn to (parameter copy), and press .
"" appears.
Reading to operation panel
Turn to change the set value to " ". Press to start reading of the inverter parameter settings by
the operation panel. (It takes about 30 seconds to read all the settings. During reading, " " flickers.)
" End reading
" " and " " flicker alternately after settings are read.
Tab. 5-288: Reading the parameter settings of the inverter to the operation panel
NOTE
appears... Why?
Parameter read error. Perform the operation from step
again.
Operation
Connect the operation panel to the destination inverter.
Parameter setting mode
Press to choose the parameter setting mode. (The parameter number read previously appears.)
Selecting the parameter number
Turn to (parameter copy), and press .
"" appears.
Selecting parameter copy
Turn to change the setting value to " " and press .
appears.
" Copying to the inverter
Press to start copying to the inverter. (It takes about 60 seconds to copy all the settings. During copying, the
selected parameter group flickers.)
Perform this step while the inverter is stopped. (Parameter settings cannot be copied during operation.)
! Ending copying
" " and " " flicker alternately after copying ends.
When parameters are written to the destination inverter, reset the inverter before operation by, for example, turning
the power supply OFF.
Tab. 5-289: Copying parameter settings read to the operation panel to the inverter
