Basic operation Basic operation procedure (PU operation)
FR-F800 4 - 15

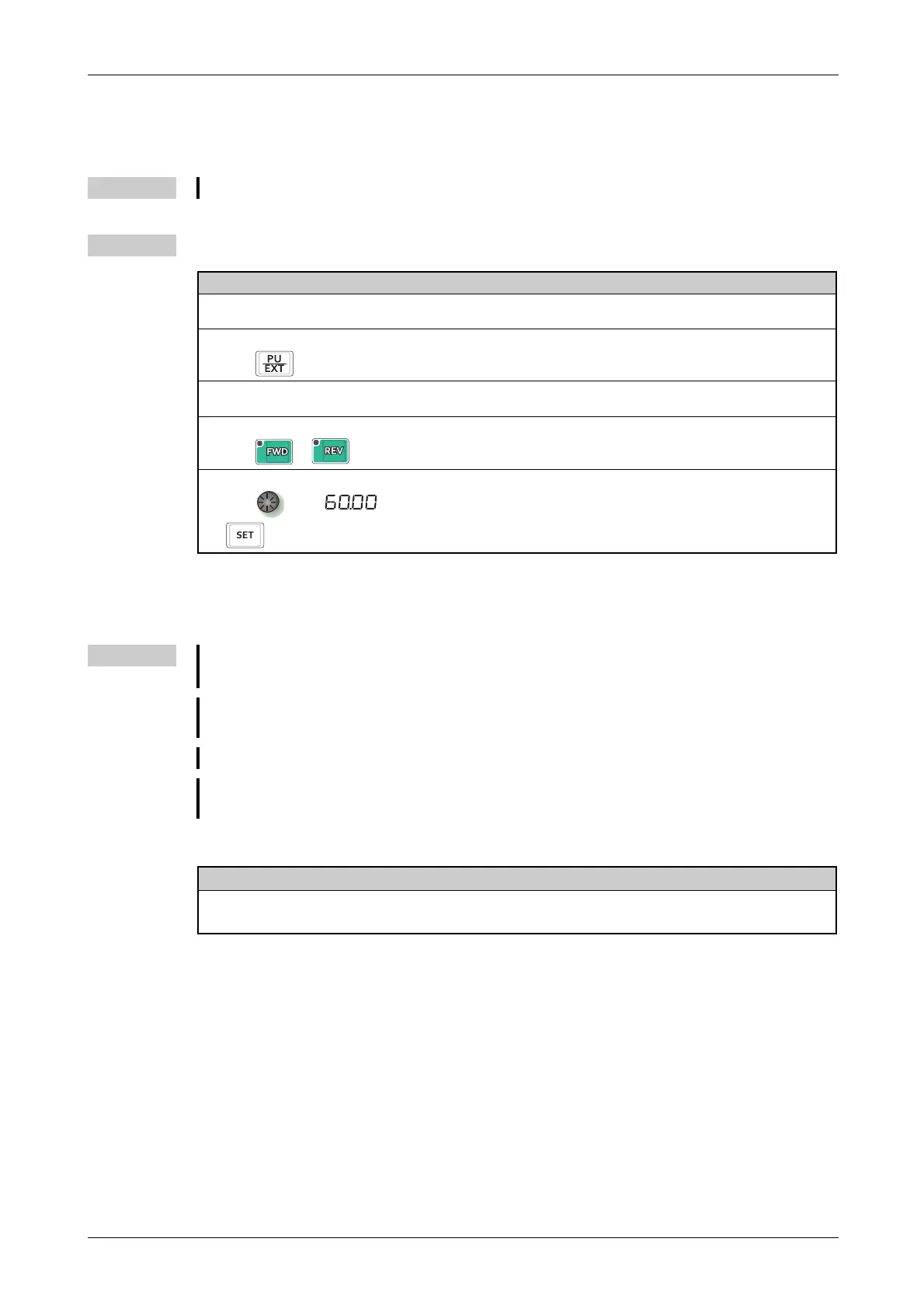

4.5.2 Using the setting dial like a potentiometer to perform operation
NOTE Set Pr. 161 "Frequency setting/key lock operation selection" = "1" (setting dial potentiometer).
Example Operation example: Change the frequency from 0 Hz to 60 Hz during operation
Operation
Screen at power-ON
The monitor display appears.
Changing the operation mode
Press to choose the PU operation mode. [PU] indicator is lit.
Changing the parameter setting
Change Pr. 161 setting to "1". (For setting value change, refer to page 4-6.)
Start
Press or to start the inverter operation.
! Setting the frequency
Turn " " until " " appears. The set frequency flickers. (The frequency flickers for about 5 s.)
needs not to be pressed.
Tab. 4-11: Use the digital dial like a potentiometer to perform operation
NOTES If the display changes from flickering "60.00" to "0.00", Pr. 161 "Frequency setting/key lock opera-
tion selection" may be set to a value other than "1".
Simply turning the setting dial will enable frequency setting whether the inverter is running or at a
stop.
The newly-set frequency will be saved as the set frequency in EEPROM after 10 s.
With the setting dial, the frequency can go up to the setting value of Pr. 1 "Maximum frequency".
Check the Pr. 1 "Maximum frequency" setting, and adjust the setting according to the application.
Parameters referred to
Pr. 1 Maximum frequency => page 5-176
Pr. 161 Frequency setting/key lock operation selection => page 5-69
