8. System Designs of M-NET
8.1 Address Definitions
An address is a unique number used to identify each air conditioner and controller.
Device
Note:
● There is no need to set the address unless the Lossnay is connected to the M-NET transmission cable.

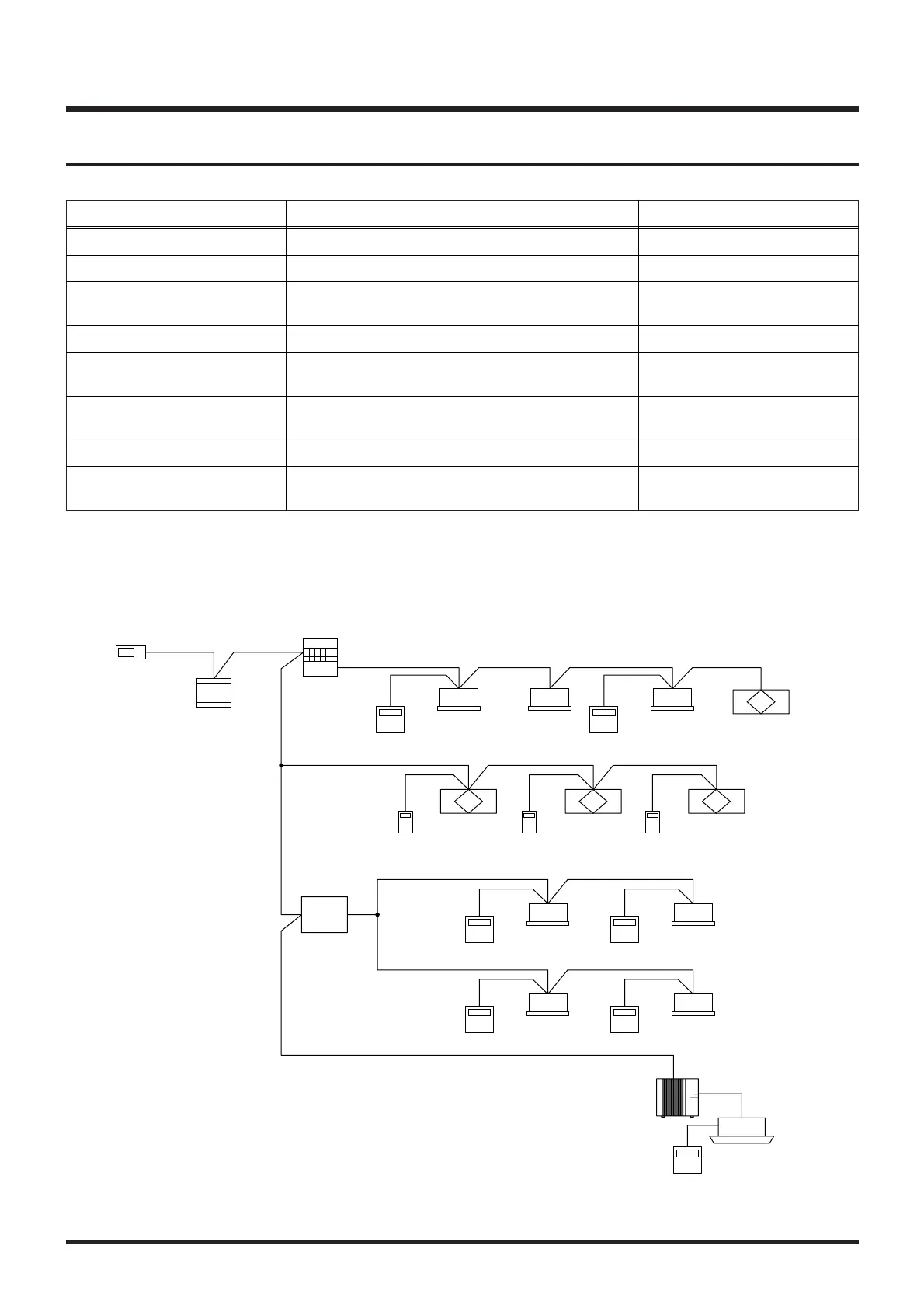

System configuration example
Description Address definition range
Indoor unit
Set to specify in order each refrigerant system.
001 to 050
Lossnay Set to specify in order each refrigerant system.
001 to 050
(
Note
)
Outdoor unit
Minimum address of the indoor unit within the same
refrigerant system.
(
+50
)
051 to 100
Local remote controller
(
master
)
Minimum address of an indoor unit or a Lossnay unit
within the same group.
(
+100
)
101 to 150
Local remote controller
(
secondary
)
Minimum address of the indoor unit or a Lossnay unit
inside the same group.
(
+150
)
151 to 200
Branch controllers Minimum address of an outdoor unit.
(
+1
)
052 to 100
Central controller
When the K-control unit is in control.
(
000
)
0, 201 to 250
K-transmission converter
Minimum address of the K-control type indoor unit.
(
+200
)
This cannot overlap with a system controller.
201 to 250
(
013
)
(
015
)(
016
)
(
010
)
(
014
)
(
005
) (
006
) (
007
)
(
004
)
(
003
)
(
002
)
(
001
)
(
101
)
(
105
)(
106
)(
107
)
(
103
)
(
051
)
(
213
)
Centralised
controller
(
000
)
Power supply unit for
transmission cable
K-transmission
converter
Outdoor unit
Indoor unit Indoor unit
Indoor unit
Indoor unit
Indoor unit
Indoor unit
Indoor unit
Lossnay
Lossnay
LossnayLossnay
( )
address
ME remote controller ME remote controller
Lossnay M-NET
remote controller
(PZ-52SF-E)
Lossnay M-NET
remote controller
(PZ-52SF-E)
Lossnay M-NET
remote controller
(PZ-52SF-E)
K-control remote controllerK-control remote controller
K-control remote controllerK-control remote controller
Mr.Slim A-control
remote controller
M-NET compatile
A-control Mr.Slim
outdoor unit
A-control Mr.Slim
indoor unit
