Page 14

MODELS: LT-55154 / LT-40164 / LT-46164 / LT-55164 / LT-46265 / LT-55265

(VLP43 & VLP43+ Models)

Apply Tape from the bottom edge of the

Speaker Box to prevent loose wiring from

being pinched by the Back Cover.

Dress harness between Pins

to prevent wiring from being

pinched by the Back Cover.

PINS

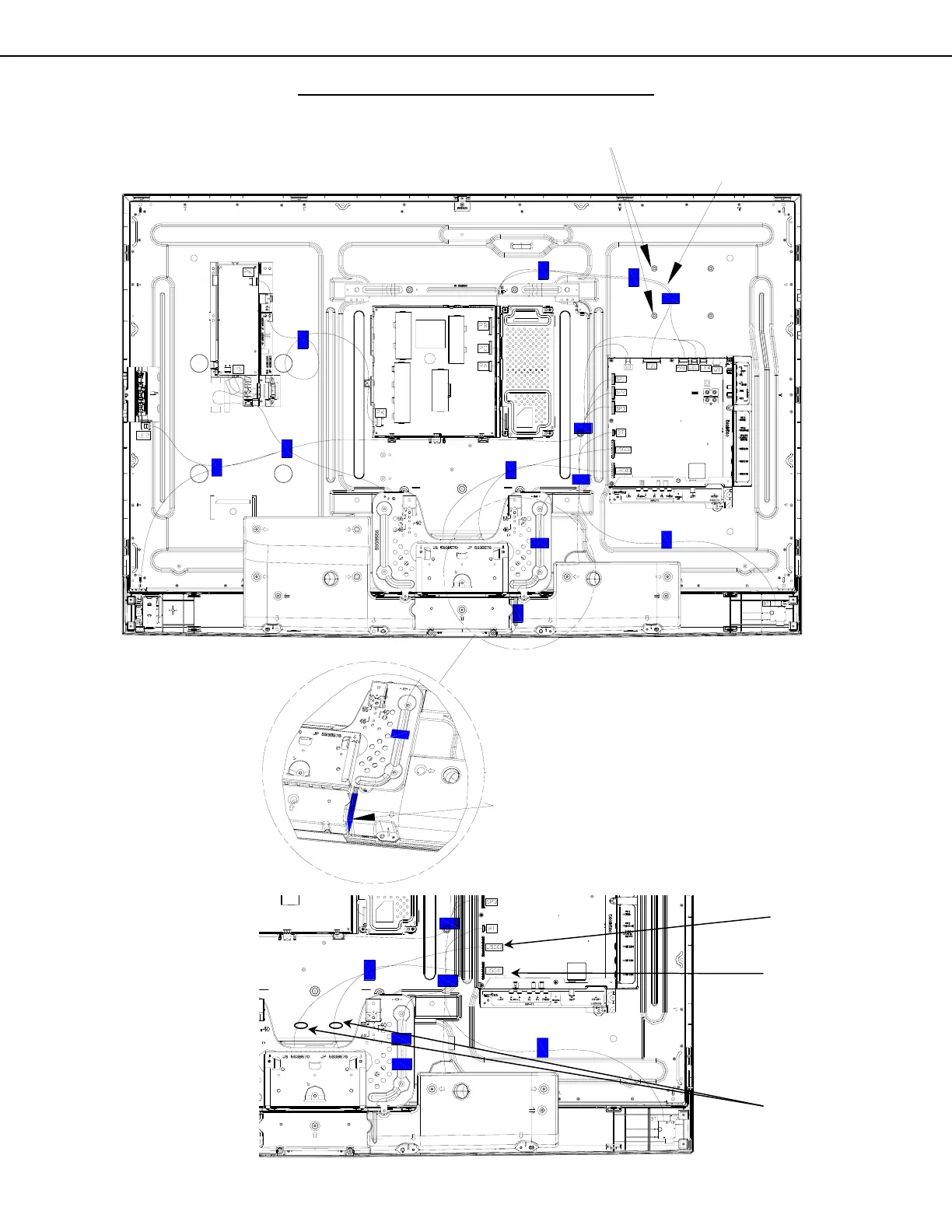

WIRING AND WIRE CLAMP LOCATIONS

T-CON

Black

LVDS Connector(s)

PWB-MAIN

Red

LVDS Connector

Blue

LVDS Connector

(VLP43 & 43+ Only)

WARNING: The

LVDS Cable(s) must be

installed as shown.

2 Cables VLP43/VLP43+

1 Cable VLP43++
