4 SAFETY FB SPECIFICATIONS

4.13 M+SF_OUTC_R

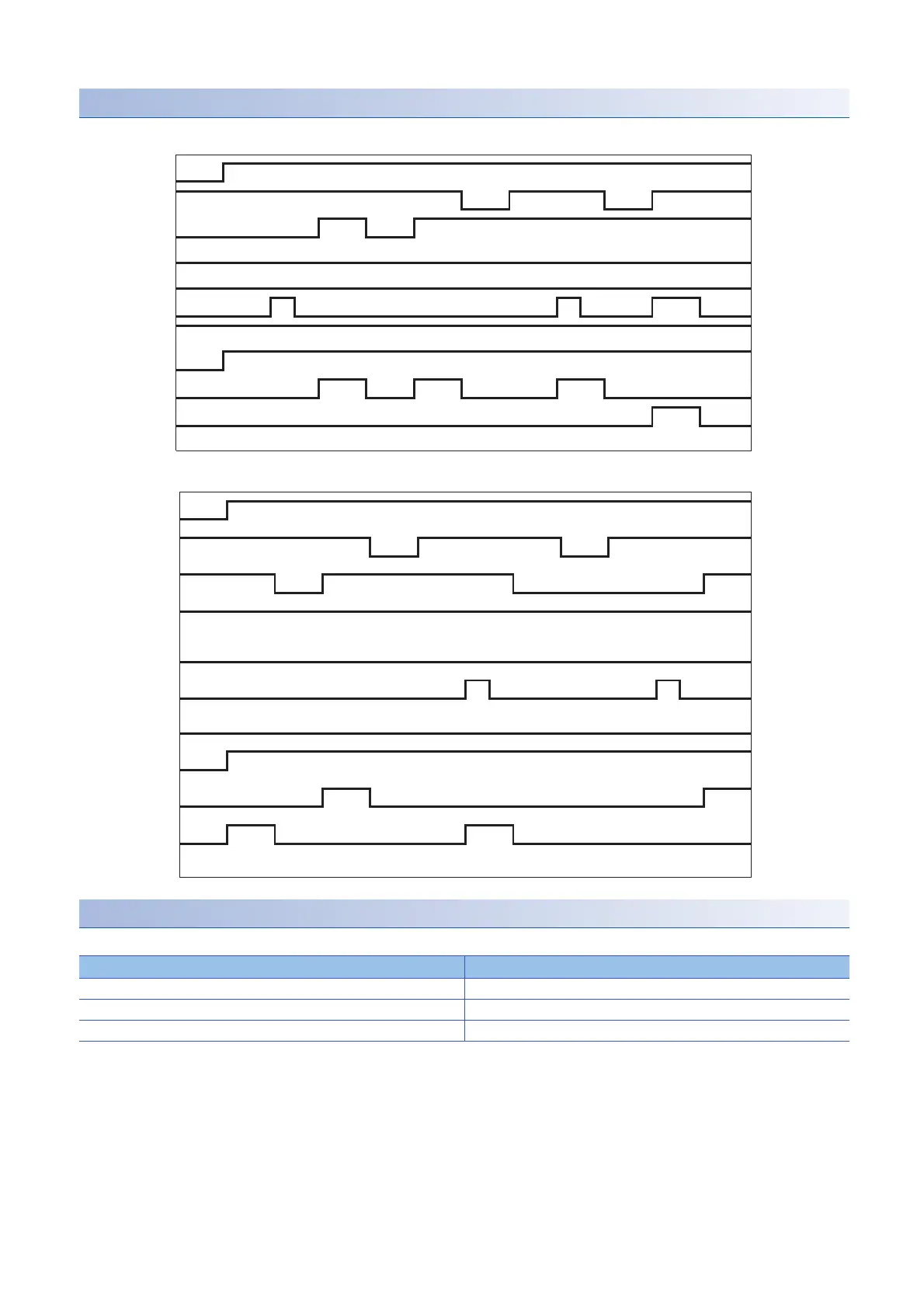

Typical timing diagram

■ For M+SF_OUTC_R (i_bS_StartReset=OFF and i_bS_AutoReset=OFF)

■ For M+SF_OUTC_R (i_bS_StartReset=ON and i_bS_AutoReset=OFF)

Error behavior

In the event of an error, the output signals behave as listed below.

For the corrective actions, see the following.

Page 91 List of error codes

Output signal Status

o_bReady ON

o_bS_OutControl OFF

o_bError ON

i_bActivate

i_bS_SafeControl

i_bProcessControl

i_bS_StartReset

i_bS_AutoReset

i_bReset

i_bStaticControl

o_bReady

o_bS_OutControl

o_bError

o_wDiagCode

0000H 8001H 8010H 8000H 8010H 8000H 8002H 8003H 8000H 8002H C002H 8003H
