Mitsubishi Electric MELSERVO HF-MP User Manual

3 - 1

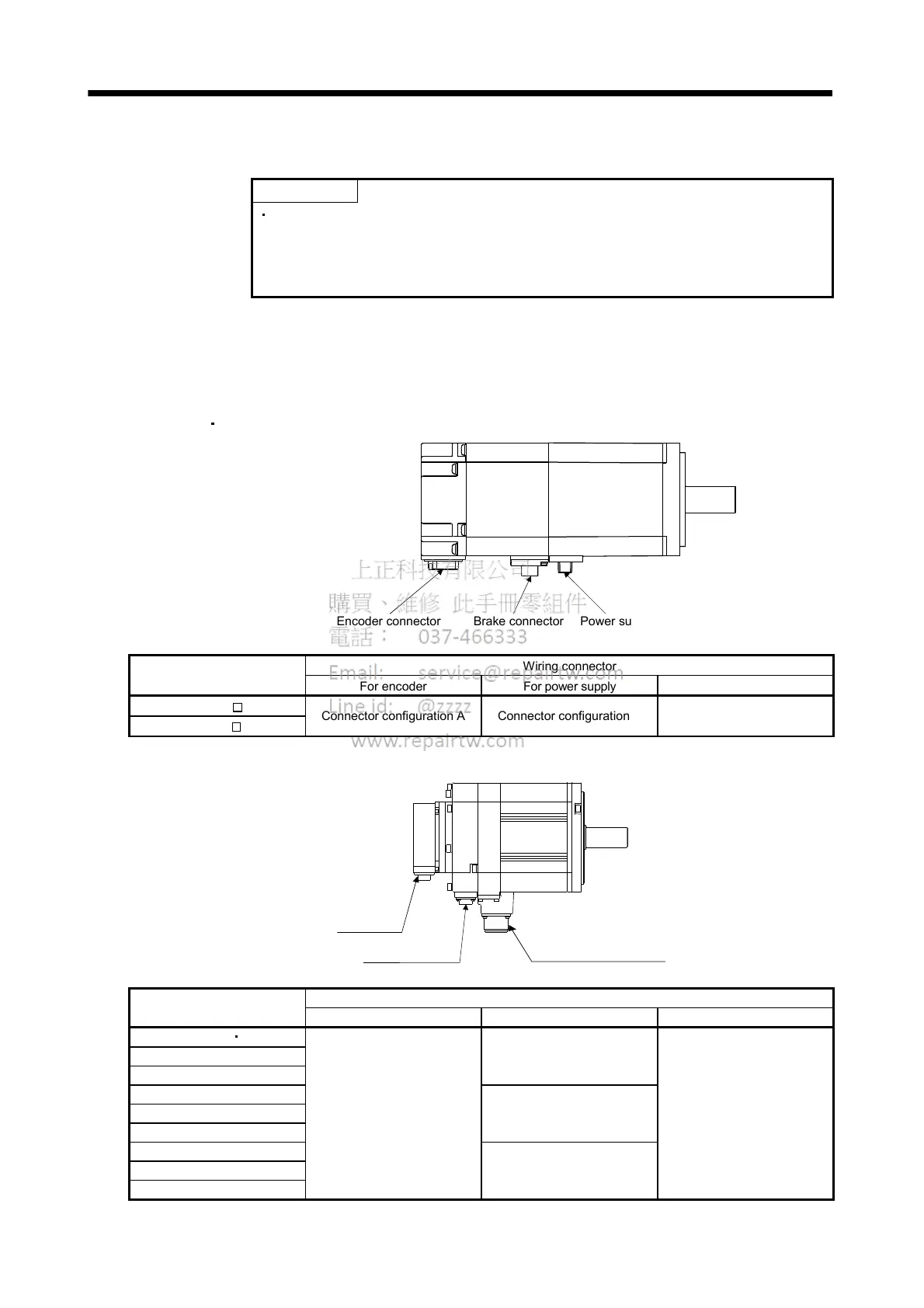

3. CONNECTORS USED FOR SERVO MOTOR WIRING
3. CONNECTORS USED FOR SERVO MOTOR WIRING
POINT
The IP rating indicated is the connector's protection against ingress of dust and
water when the connector is connected to a servo amplifier or servo motor. If the
IP rating of the connector, servo amplifier and servo motor vary, the overall IP
rating depends on the lowest IP rating of all components.
3.1 Selection of connectors
Use the connector configuration products given in the table as the connectors for connection with the servo
motor. Refer to section 3.2 for the compatible connector configuration products.
(1) HF-MP Series
HF-KP Series
Encoder connector
Brake connector
Power supply connector
Wiring connector
Servo motor
For encoder For power supply For brake
HF-MP
HF-KP
Connector configuration A Connector configuration B Connector configuration C
(2) HF-SP Series
Encoder
connector
Brake connector
Power supply connecto
r
Wiring connector
Servo motor
For encoder For power supply For brake
HF-SP51 81
HF-SP52 to 152 Connector configuration E
HF-SP524 to 1524
HF-SP121 to 301
HF-SP202 to 502
HF-SP2024 to 5024
Connector configuration G
HF-SP421
HF-SP702
HF-SP7024
Connector configuration D
Connector configuration H
Connector configuration F
