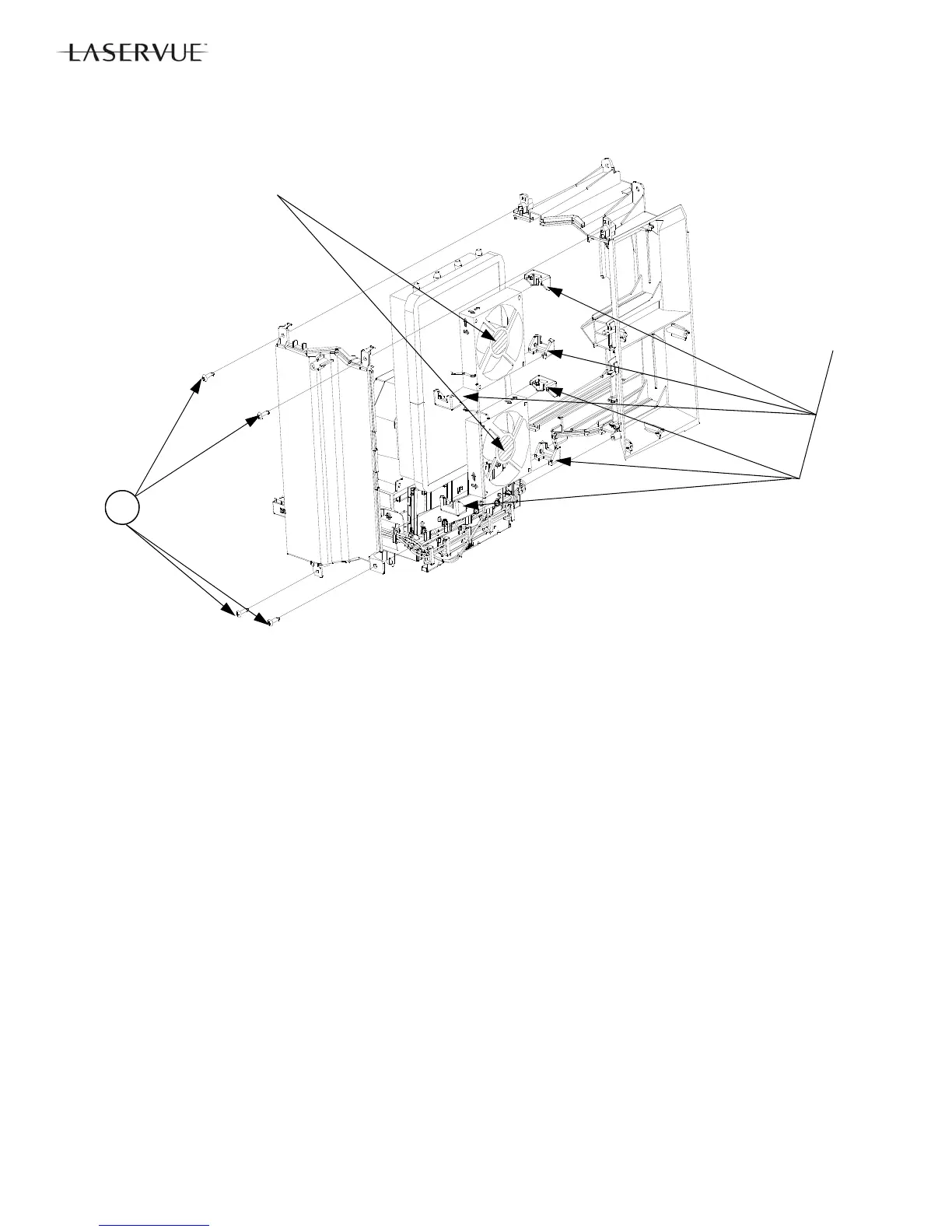

Light Source Exhaust Fan Removal
NOTE: Disassemble Duct Assembly for Fan replacement only. Otherwise order the complete Light
Source Unit.
1. Remove Screws (A).
2. Separate the Front and Rear Air Ducts.
IMPORTANT: Do not disassemble the Light Source Unit any further.
Fan Labels
Facing Out
Corner
Cushions
3 Per Fan
