226
-
(j) Wall mounted type (FDK)
Models FDK22~56KXE6

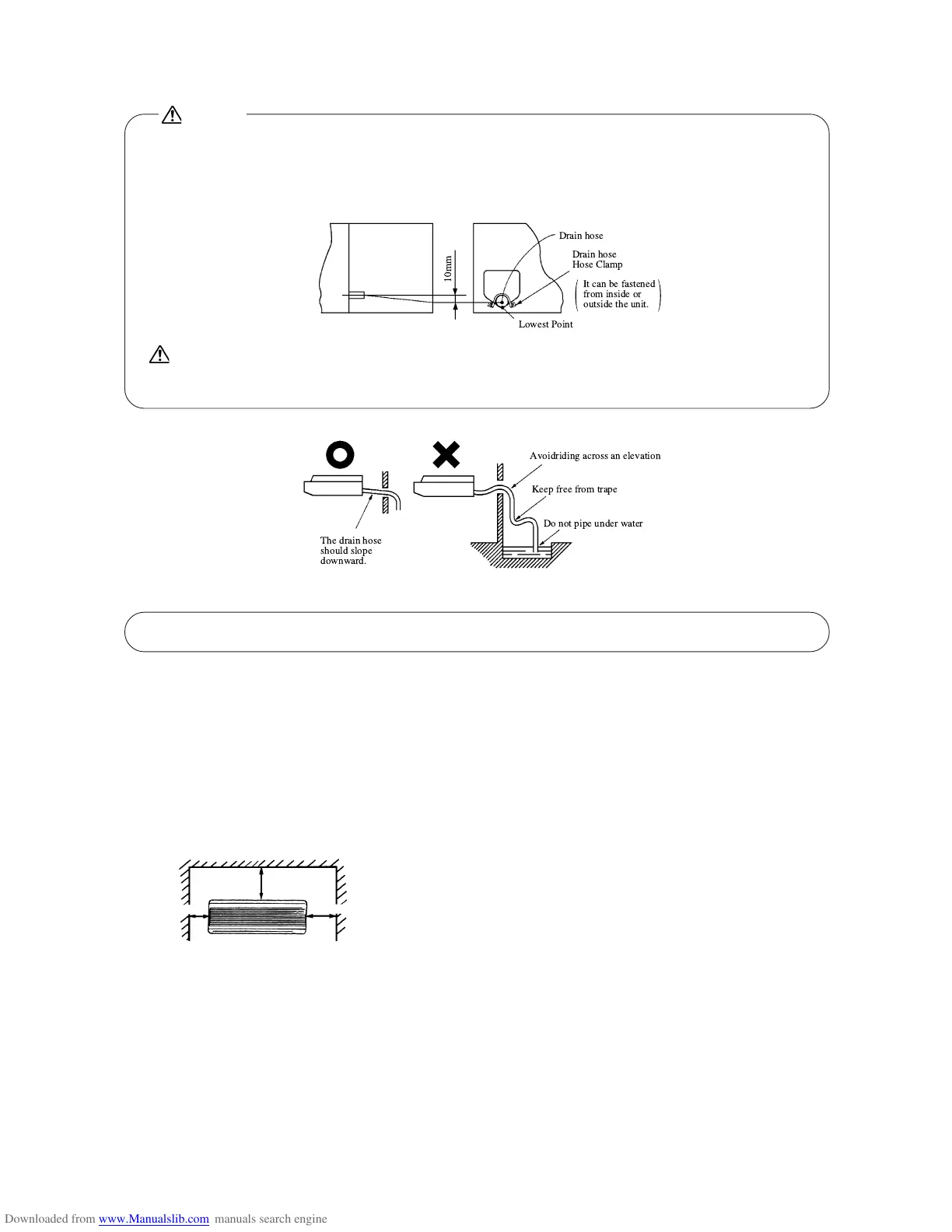

Use the fitting supplied with the unit to connect the drain hose, fastening it at the lowest point so that there is no slack, and
establishing a 10 mm drain slope.
* Keep electrical wiring from running beneath the drain hose.
Be sure to fasten the drain hose down with a clamp.
There is danger of water overflowing the drain hose.
50 or more
(i) Selection of installation location
WARNING
After piping has been installed, check to make sure water drains well and that there is no overflow.
1) Select the installation location that meets the following conditions and obtain
the customer's consent.
a) Location where cold and warm air spread all over the room
b) Location where piping and wiring to the outdoors can easily be laid down.
c) Location where the drain can be discharged completely.
d) Location where the wall to mount the unit is rigid.
e) Location where there is no wind obstruction to the return air and supply
air grills.
f) Location not exposed to direct sunshine.
g) Avoid the location exposed to oil splash or vapor.
h) Avoid the location near to the machine emitting high-frequency radio wave.
i) Avoid the location where the receiver of remote control is subject to strong
illumination.
j) Select the location where the unit can securely be operated by the wire-
less remote controller referring to the Article “Effective distance of wire-
less remote controller” indicated at the backside.
k) Secure the space for inspection and maintenance work.
Unit: mm
100 or more
40
or more
To Next Page
