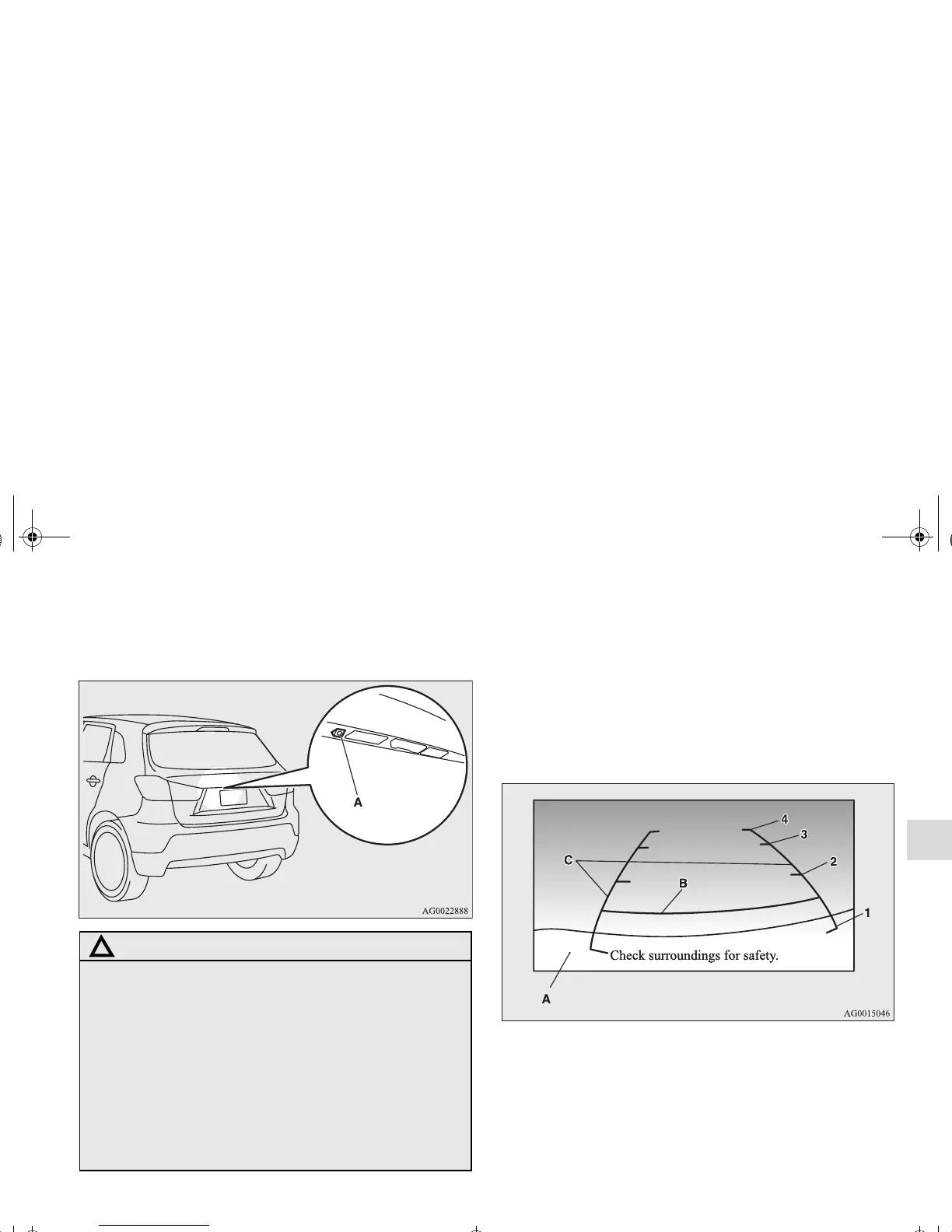

Location of rear-view camera
The rear-view camera (A) is in the liftgate, at the left side of
the liftgate handle.
Screen image
Reference lines and upper surface of the rear bumper (A) are
displayed on the screen.
● Red line (B) indicates approximately 20 inches (50 cm)
behind the rear bumper.
● Two Green lines (C) indicate approximately 8 inches (20
cm) outside of the vehicle body.
● Short transverse lines (1 to 4) indicate distance from the
rear bumper.
CAUTION
!
● If the camera lens gets dirty, a clear image cannot be
obtained. As necessary, rinse the lens with clean
water and gently wipe with a clean, soft cloth.
● To avoid damaging the camera;
• Do not rub the cover excessively or polish it by
using an abrasive compound.
• Do not disassemble the camera.
• Do not splash hot water directly on the lens.
• Do not spray the camera and its surroundings with
high-pressure water.
• Make sure that the liftgate is securely closed when
backing up.
1: Approximately at the rear edge of the rear bumper
2: Approximately 39 inches (100 cm)
3: Approximately 79 inches (200 cm)
4: Approximately 118 inches (300 cm)
