Vehicle care and maintenance
7-41
7
Fuses
N00942800856

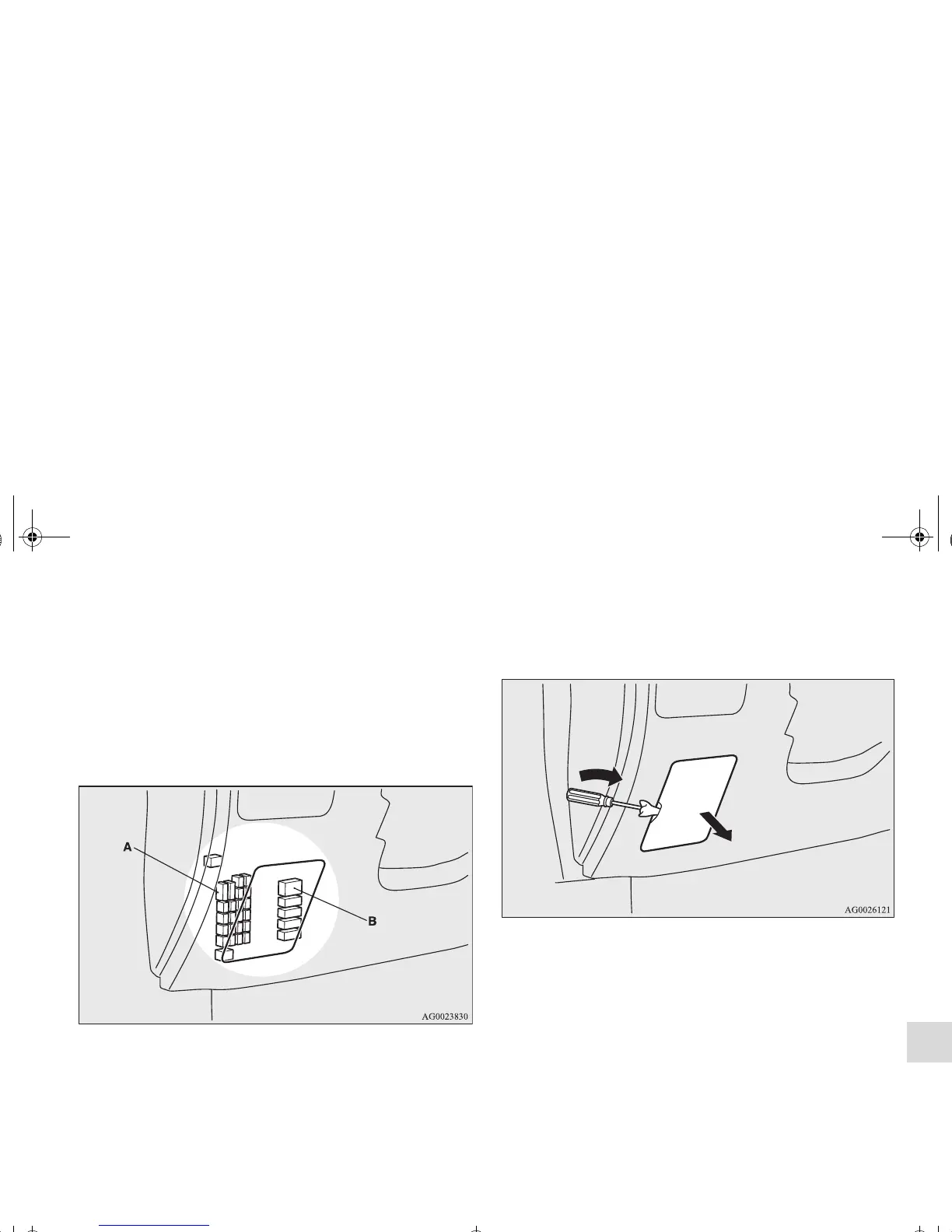

Fuse block location
To prevent damage to the electrical system from short-circuit-
ing or overloading, each individual circuit is equipped with a
fuse. The fuse blocks are located in the passenger compartment
and in the engine compartment.
Passenger compartment
The fuse blocks in the passenger compartment are located
behind the fuse lid.
Main fuse block
1. Insert a screwdriver into the notch of the fuse lid and pry
gently to remove it.
A- Main fuse block
B- Sub fuse block
