Seat and restraint systems
2-53
2

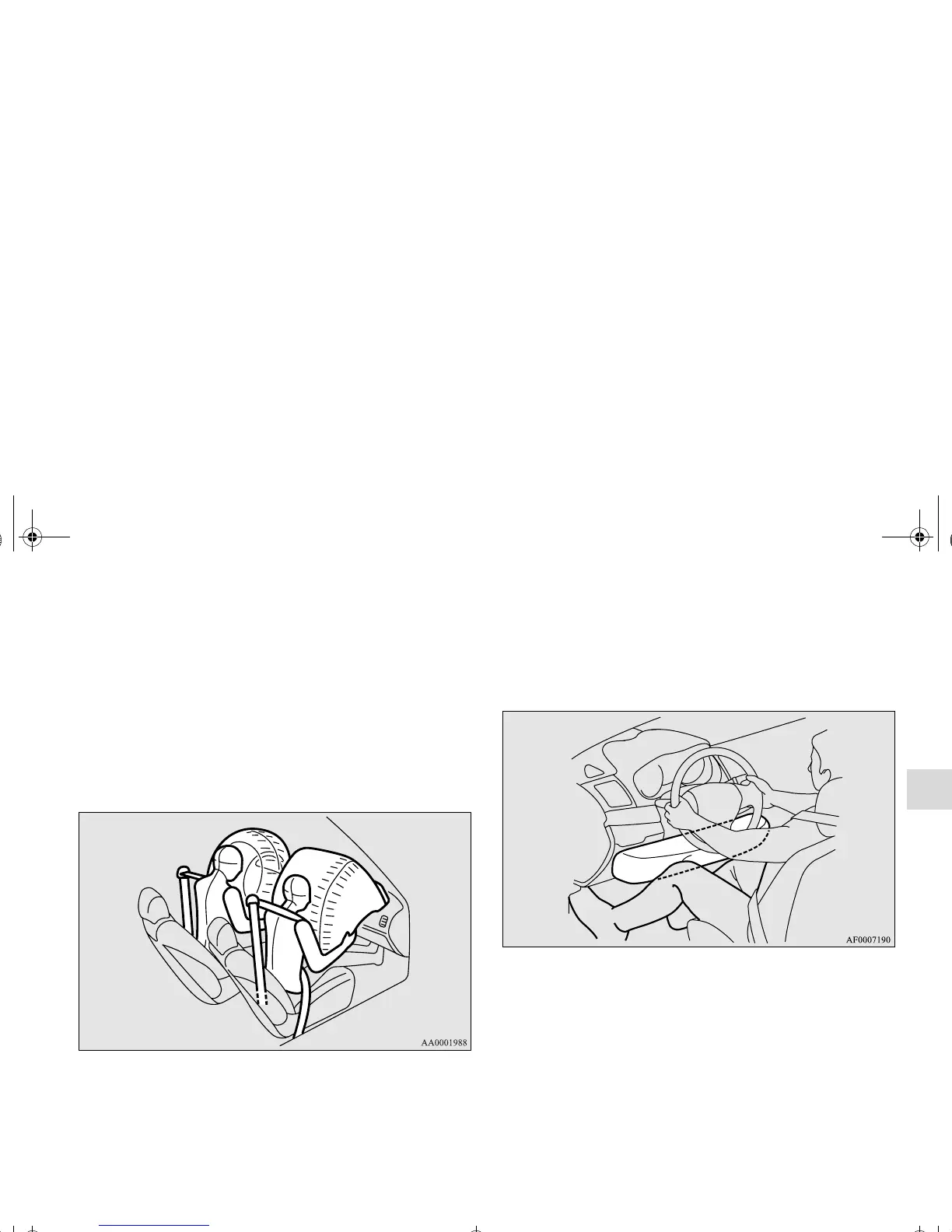

Driver’s and passenger’s front airbag system
N00407900291
The driver’s airbag is located under the padded cover in the
middle of the steering wheel. The front passenger’s airbag is
contained in the instrument panel above the glove compart-
ment. The driver’s airbag and the front passenger’s airbag are
designed to deploy at the same time. However, the front pas-
senger’s airbag does not deploy when the front passenger seat
is not occupied or when the weight sensor in the front passen-
ger seat senses a weight on the seat of less than approximately
66 pounds (30 kg).
Driver’s knee airbag system
N00404500010
The driver’s knee airbag is located under the steering wheel.
The driver’s knee airbag is designed to deploy at the same time
as the driver’s front airbag.
Driver
Front passenger
