7. How to write a more complex program using your PC and Visual Logic
In this section you will extend the program you’ve just written. You will add a timer to
automatically switch off the contactor after 10 seconds.

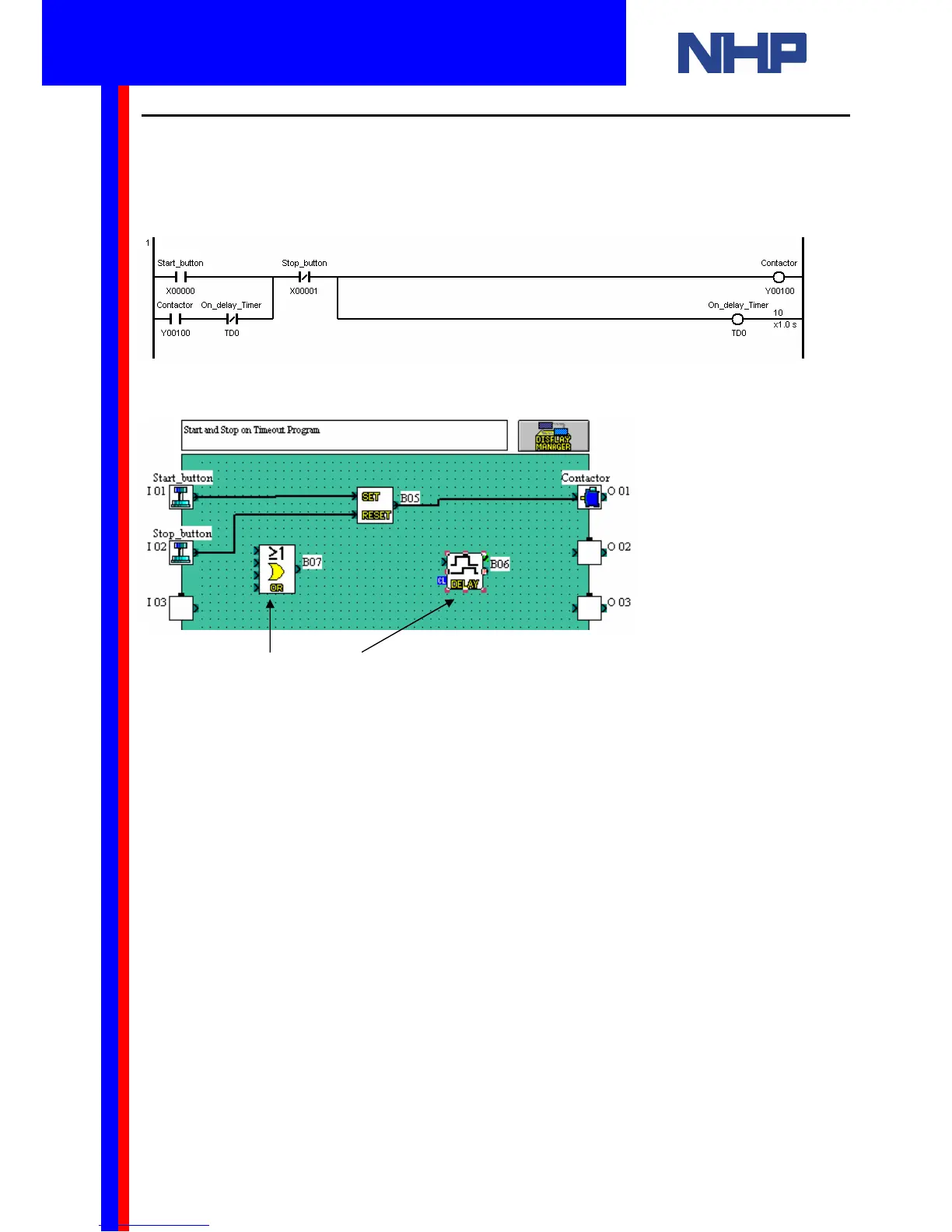

For those familiar with ladder programming, this is the equivalent circuit.
These blocks are an OR block and a Delay. To set up the Delay, simply double-click on the
delay block.
Place these blocks in your program
