Vehicle care and maintenance
7-61
7

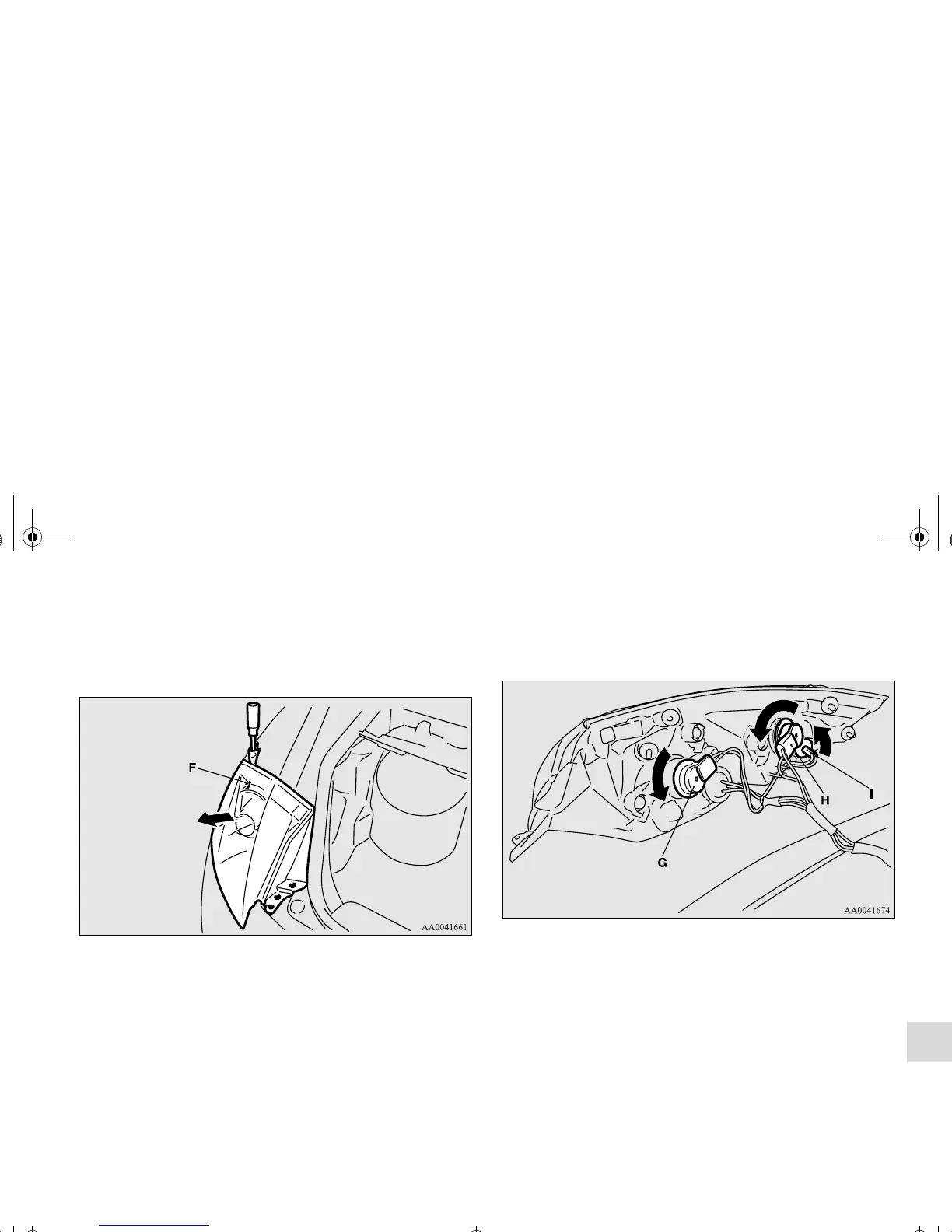

4. Insert the tip of the screwdriver at the edge of the light
unit, pry gently to remove the light unit.
Then move the light unit toward the rear of the vehicle
and remove the clip (F).
OTE
● Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
5. Remove the socket and bulb assemblies by turning them
counterclockwise.
Remove the bulb by pulling it out.
G- Back-up light
H- Rear turn signal light
I- Rear side-marker light
