EXHAUST MANIFOLD AND TURBOCHARGER
TSB Revision
INTAKE AND EXHAUST
15-22

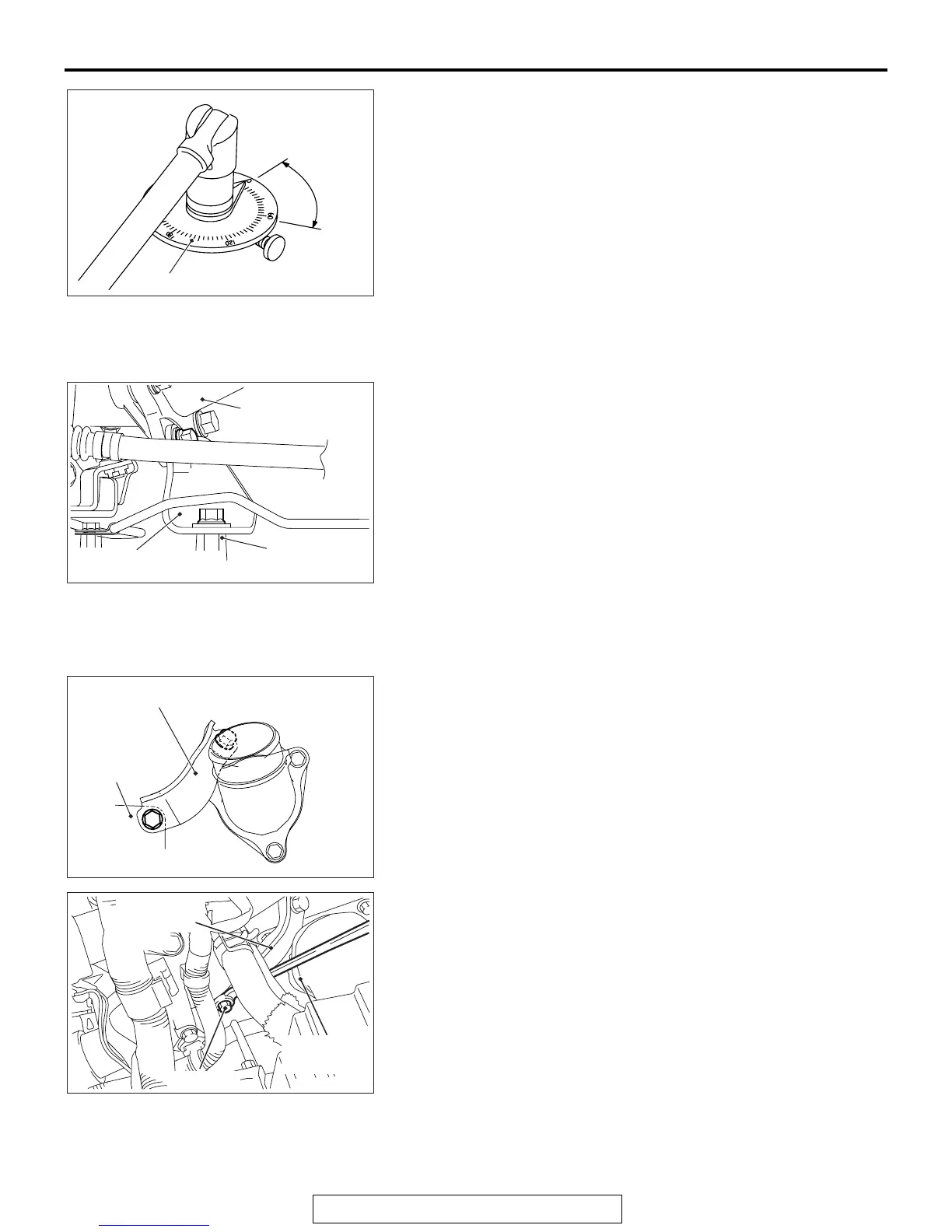

(3) Use special tool MB991614 to tighten bolts and nuts 65°
± 5° .
.
>>E<< TURBOCHARGER EXHAUST OUTLET
FITTING BRACKET INSTALLATION
AC708638
AC
Cylinder block
Turbocharger exhaust
outlet fitting bracket
Turbocharger
exhaust outlet fitting
1. Check that the turbocharger exhaust outlet fitting bracket is
in close contact with the turbocharger exhaust outlet fitting
and with the cylinder block, and then temporarily tighten the
turbocharger exhaust outlet fitting bracket.
2. Tighten the bolt of the cylinder block side to the specified
torque.
Tightening torque: 51 ± 7 N⋅ m (38 ± 5 ft-lb)
3. Tighten the bolt of the turbocharger exhaust outlet fitting
bracket side to the specified torque.
Tightening torque: 64 ± 5 N⋅ m (48 ± 3 ft-lb)
.
>>F<< TURBOCHARGER COMPRESSOR
BRACKET INSTALLATION
AC708639
AC
Turbocharger compressor bracket
Cylinder block
1. Check that the turbocharger compressor bracket is in close
contact with the turbocharger assembly and with the cylinder
block, and then temporarily tighten the turbocharger
compressor bracket.
AC710947
AC
MB992274
Turbocharger
compressor
bracket
Turbocharger
air inlet fitting
2. Use special tool MB992274 to tighten the turbocharger
compressor bracket mounting bolt (cylinder block side) to
the specified torque.
Tightening torque: 51 ± 7 N⋅ m (38 ± 5 ft-lb)
3. Tighten the bolt of the turbocharger assembly side to the
specified torque.
Tightening torque: 51 ± 7 N⋅ m (38 ± 5 ft-lb)
