EXHAUST MANIFOLD AND TURBOCHARGER
TSB Revision
INTAKE AND EXHAUST
15-21

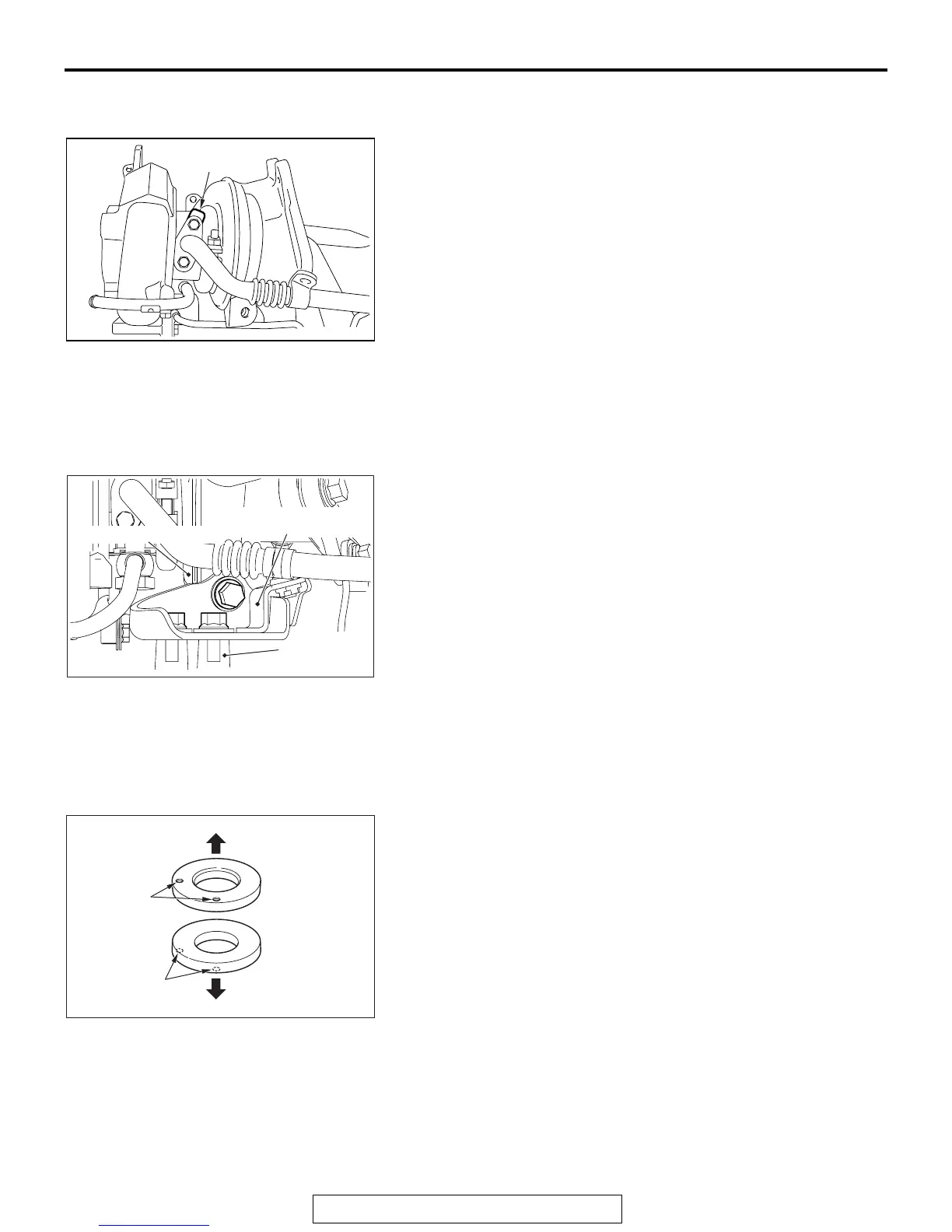

>>B<< TURBOCHARGER OIL RETURN TUBE
GASKET INSTALLATION
AC706181
AC
Protrusion
Install the gasket as its protrusion is in the direction
shown.Install the gasket so that its protrusion faces in the direc
-
tion shown in the illustration.
.
>>C<< TURBOCHARGER
BRACKET/TURBOCHARGER BRACKET AND
TURBOCHARGER ASSEMBLY COUPLING BOLT
INSTALLATION
AC708637
AC
Turbocharger assembly
Turbocharger bracket
Cylinder block
1. Check that the turbocharger bracket is in close contact with
the turbocharger assembly and with the cylinder block, and
then temporarily tighten the turbocharger bracket.
2. Tighten the bolt of the cylinder block side to the specified
torque.
Tightening torque: 51 ± 7 N⋅ m (38 ± 5 ft-lb)
3. Tighten the turbocharger bracket and the turbocharger
assembly coupling bolt to the specified torque.
Tightening torque: 64 ± 5 N⋅ m (48 ± 3 ft-lb)
.
>>D<< EXHAUST MANIFOLD AND
TURBOCHARGER ASSEMBLY COUPLING BOLT
AND NUT INSTALLATION
1. Tighten the bolts and nuts according to the procedure below.
AC706227
Identification
hole
AB
Identification hole
Turbocharger assembly side
Nut, bolt side
(1) Install two washers with their identification holes facing
outside as shown in the figure.
(2) Tighten the bolts and nuts to 29 ± 2 N⋅ m (22 ± 1 ft-lb) in
the order of number shown in the figure.
