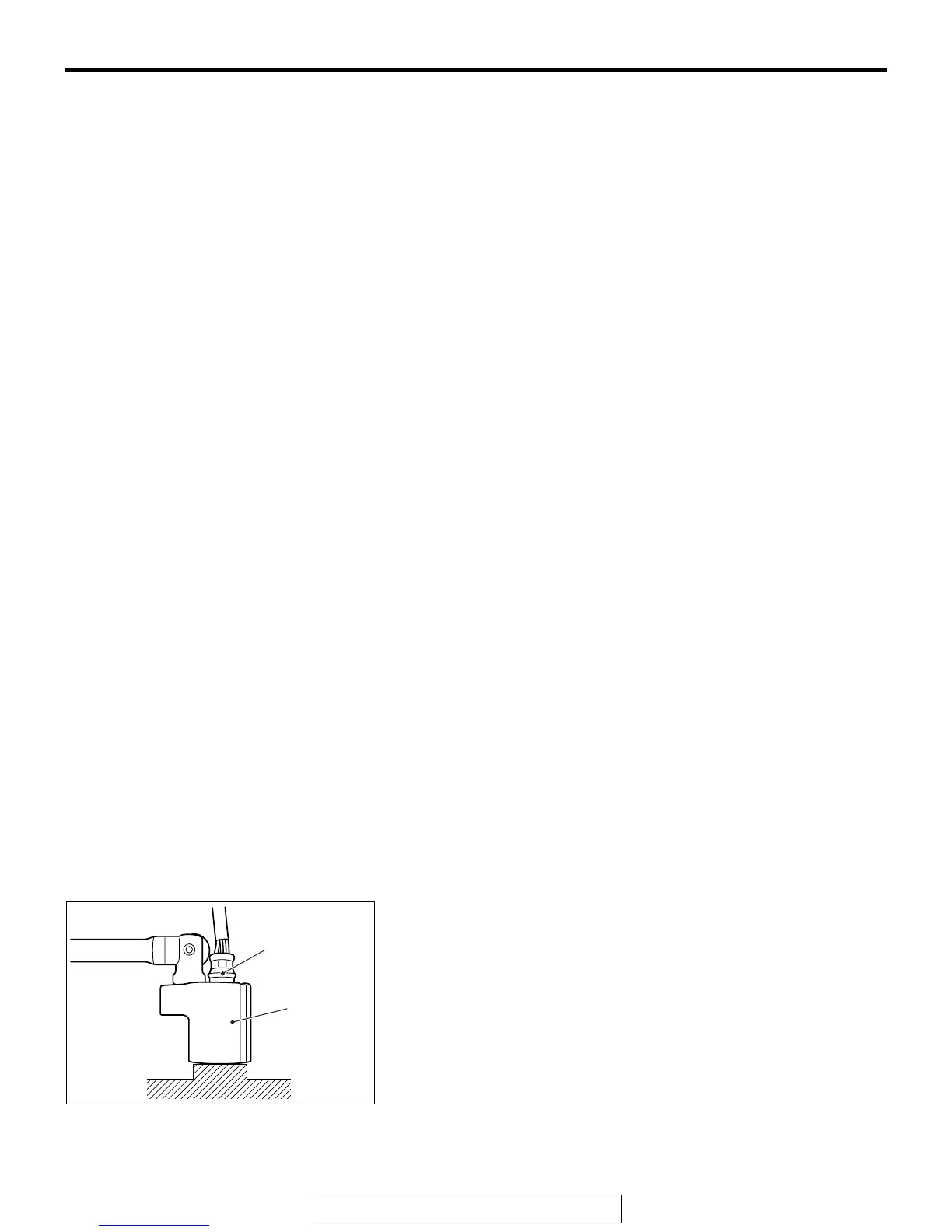

EXHAUST PIPE AND MAIN MUFFLER
TSB Revision
INTAKE AND EXHAUST
15-25
Required Special Tool:
MB991953: Oxygen Sensor Wrench
REMOVAL SERVICE POINTS
.
<<A>> HEATED OXYGEN SENSOR REMOVAL
AC301966
AG
MB991953
Heated oxygen
sensor
Use special tool MB991953 to remove the heated oxygen sen-
sor.
.
4. Heated oxygen sensor (rear)
connector
6. Catalytic converter
Cowl side trim (Refer to GROUP
52A, Trims
P.52A-11).
Footrest
Floor console side cover (Refer to
GROUP 52A, Front Floor
Console Assembly
P.52A-9).
Turn up the passenger side floor
carpet.
Front floor backbone brace (Refer
to GROUP 42, Loose Panel
P.42A-192).
7. Heated oxygen sensor (front)
connector
9. Front exhaust pipe
10. Seal ring
14. Exhaust pipe gasket
16. Exhaust pipe gasket
19. Seal ring
Propeller shaft assembly (Refer
to GROUP 25, Propeller Shaft
P.25-6).
<<
B
>> >>
A
<<
20. Rivet
<<
B
>> >>
A
<<
21. Front floor rear panel heat
protector
22. Dash panel heat protector
<<
B
>> >>
A
<<
23. Rivet
24 Heated oxygen sensor clip
<<
B
>> >>
A
<<
25. Front floor front panel heat
protector
Front floor panel front heat
protector and front floor panel
rear heat protector removal
steps (Continued)
