EXHAUST PIPE AND MAIN MUFFLER
TSB Revision
INTAKE AND EXHAUST
15-26

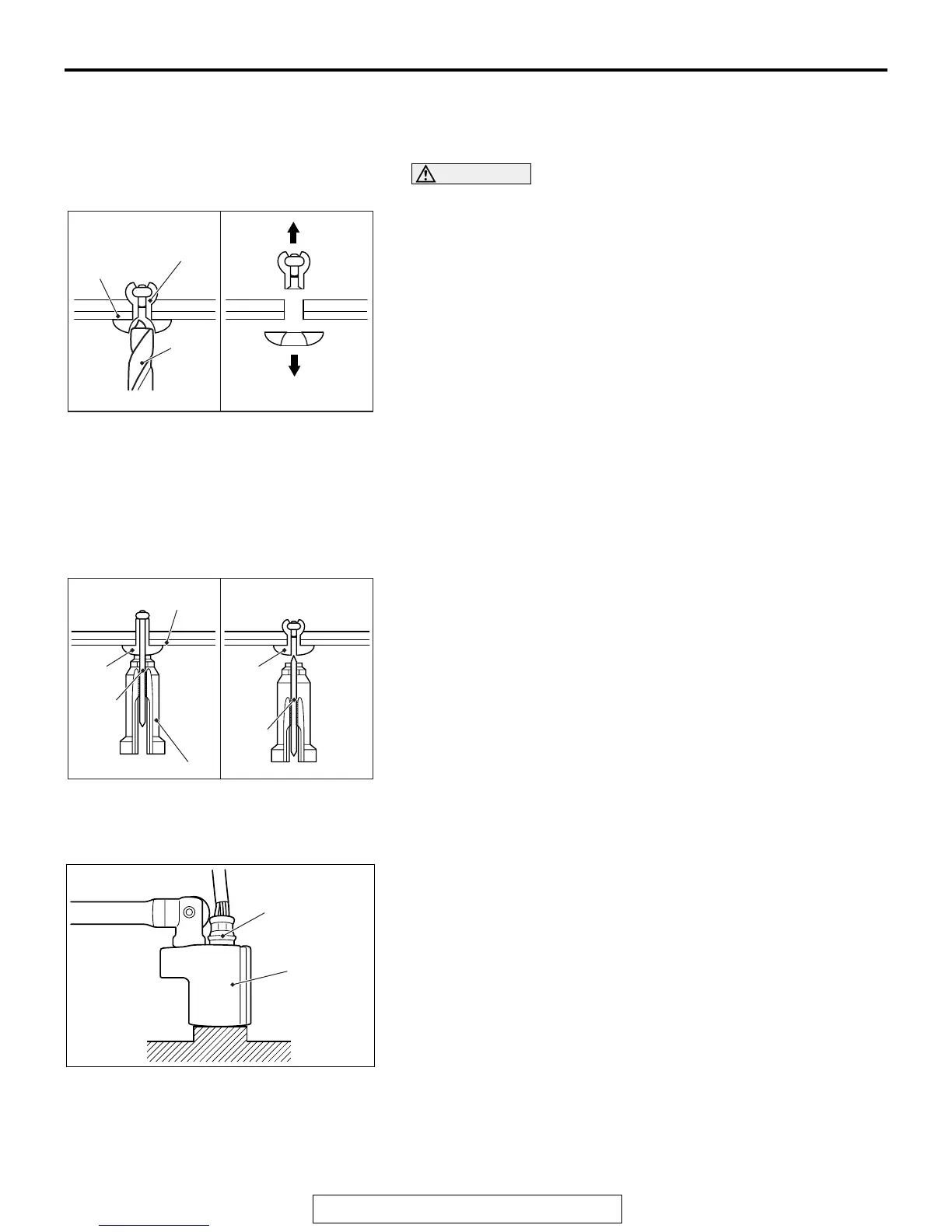

<<B>> RIVET/FRONT FLOOR REAR PANEL HEAT
PROTECTOR/FRONT FLOOR FRONT PANEL
HEAT PROTECTOR REMOVAL
CAUTION
Be careful not to score the heat protector by drill.
AC301909
AD
Heat
protector
Drill
Rivet
1. Use a 6.0 / diameter / mm drill to make a hole in the flange
of rivet as shown.
2. Break the rivet, and remove the rivet and heat protector.
INSTALLATION SERVICE POINTS
.
>>A<< RIVET/FRONT FLOOR FRONT PANEL
HEAT PROTECTOR/FRONT FLOOR REAR PANEL
HEAT PROTECTOR/RIVET INSTALLATION
Use a riveter to tighten the rivet by the following procedure.
AC301910
AD
Heat protector
Rivet
Part A
Riveter
Rivet
Part A
1. Insert part A of rivet into the riveter, and insert the rivet into
the assembling area.
2. Operate the tool's handle while pushing the flange surface of
rivet by riveter. Part A of rivet is cut and the rivet is tightened.
.
>>B<< HEATED OXYGEN SENSOR
INSTALLATION
AC301966
AG
MB991953
Heated oxygen
sensor
Tighten the heated oxygen sensor to the specified torque by
using special tool MB991953.
Tightening torque: 44 ± 5 N⋅ m (33 ± 3 ft-lb)
