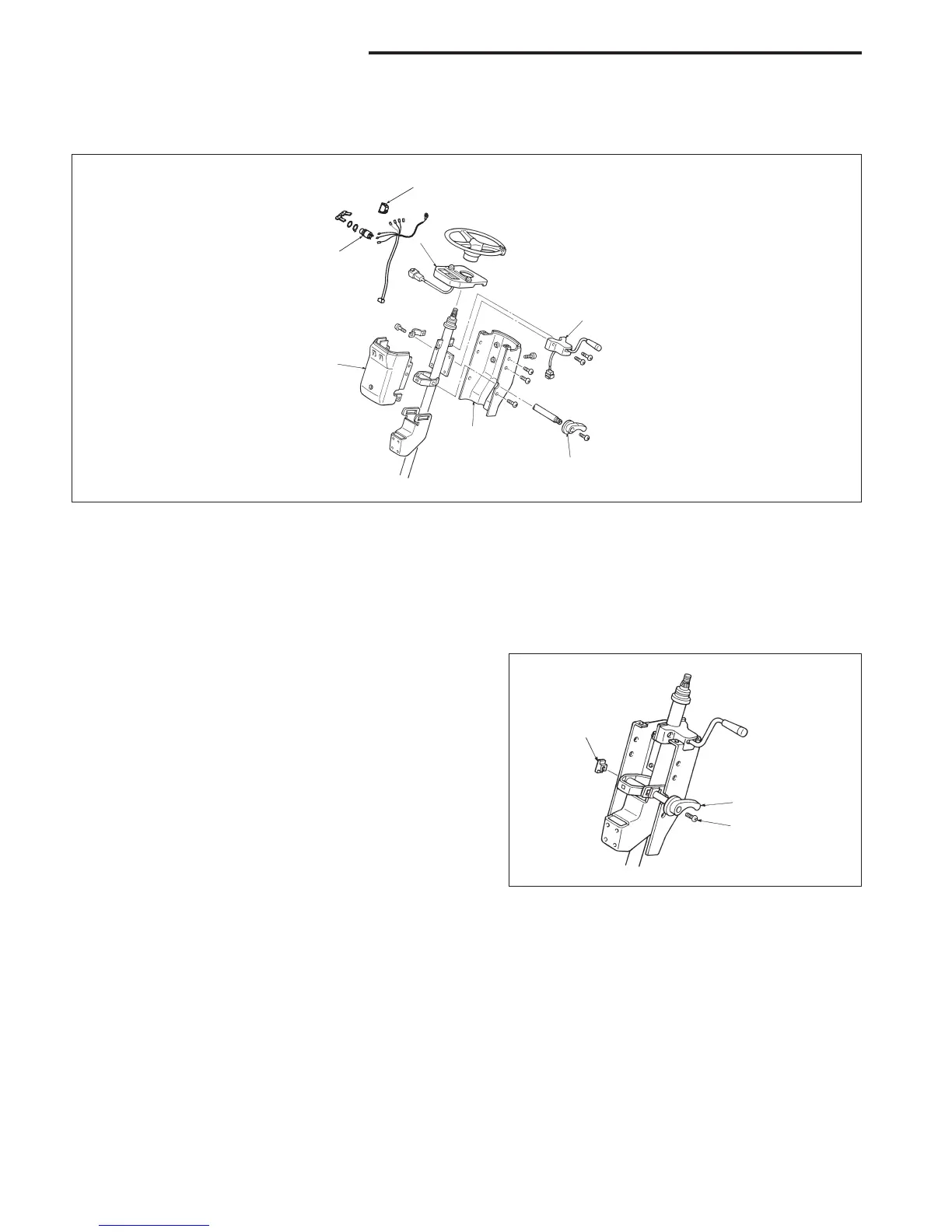

Sequence
1 Console box (front panel)
2 Central vehicle monitor panel
3 Direction lever
4 Steering tilt lever
5 Console box (rear panel)
6 Key switch
7 Light switch
Disassembly procedure
(1) Remove the front panel and monitor panel from the
console box.
(2) Disconnect the harness connectors from the horn and
direction lever.
(3) Remove the screw from the steering tilt lever, and
remove the lever from the rear panel of the console
box.
(4) Remove the rear panel.
Reassembly
Follow the disassembly procedure in reverse.
