FX2N-5A Special function block Buffer Memory (BFM) 7
7-51
• The range in which the analog scale value and digital value can be set varies according to
the I/O mode selected for BFM0 and BFM1.
When setting the analog scale value within the range, write the figure converted to
percentage (1/100).
Analog scale value and digital value outside the range selected by BFM0 and 1 is set.
Offset / gain set value becomes error (BFM29 b1).

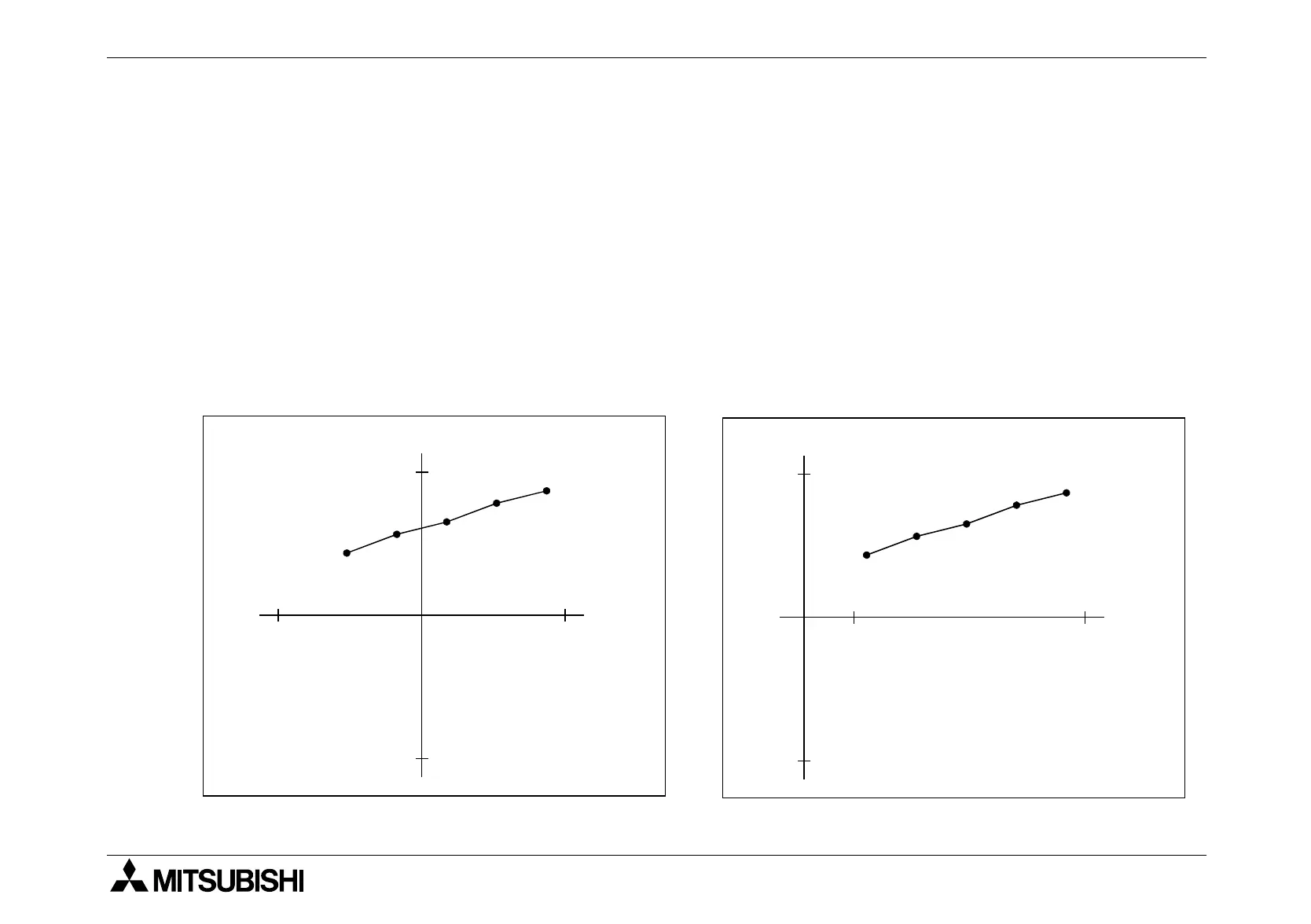

Setting range of analog input
Set BFM 1 to 9 Set BFM 1 to A
Analog scale value: -10000 to +10000 Analog scale value: 2000 to 10000
Digital value : -32768 to +32767 Digital value : -32768 to +32767
Digital value
32767
-10000
(-10V)
-32768
10000
(10V)
0
Change
point 1
Change
point 2
Change
point 3
Change
point 4
Change
point 5
Analog scale value
(Unit : 1/100 %)
Digital value
32767
10000
(20mA)
-32768
2000
(4mA)
0
Change
point 1
Change
point 2
Change
point 3
Change
point 4
Change
point 5
Analog scale value
(Unit : 1/100 %)
