Mitsubishi FX2N-5A User Manual

FX2N-5A Special function block Buffer Memory (BFM) 7
7-54
• The value which can be set depends on the selection of BFM 0 and 1.
Analog values and digital values outside the range selected by BFM 0 and 1 are set, thus,
offset/gain set value error (BFM 29 b1) will occur.
• Please set analog values and digital values in Change point 1 < Change point 2 < Change
point 3.
When "The small number change point"
≤
"The large number change point" is set, offset/
gain set value error (BFM 9 b1). (See figure 1.)
• When using less then three change points, please specify an analog scale and a digital
value for those change points not used as K0 (initial value). (See figure 1.)

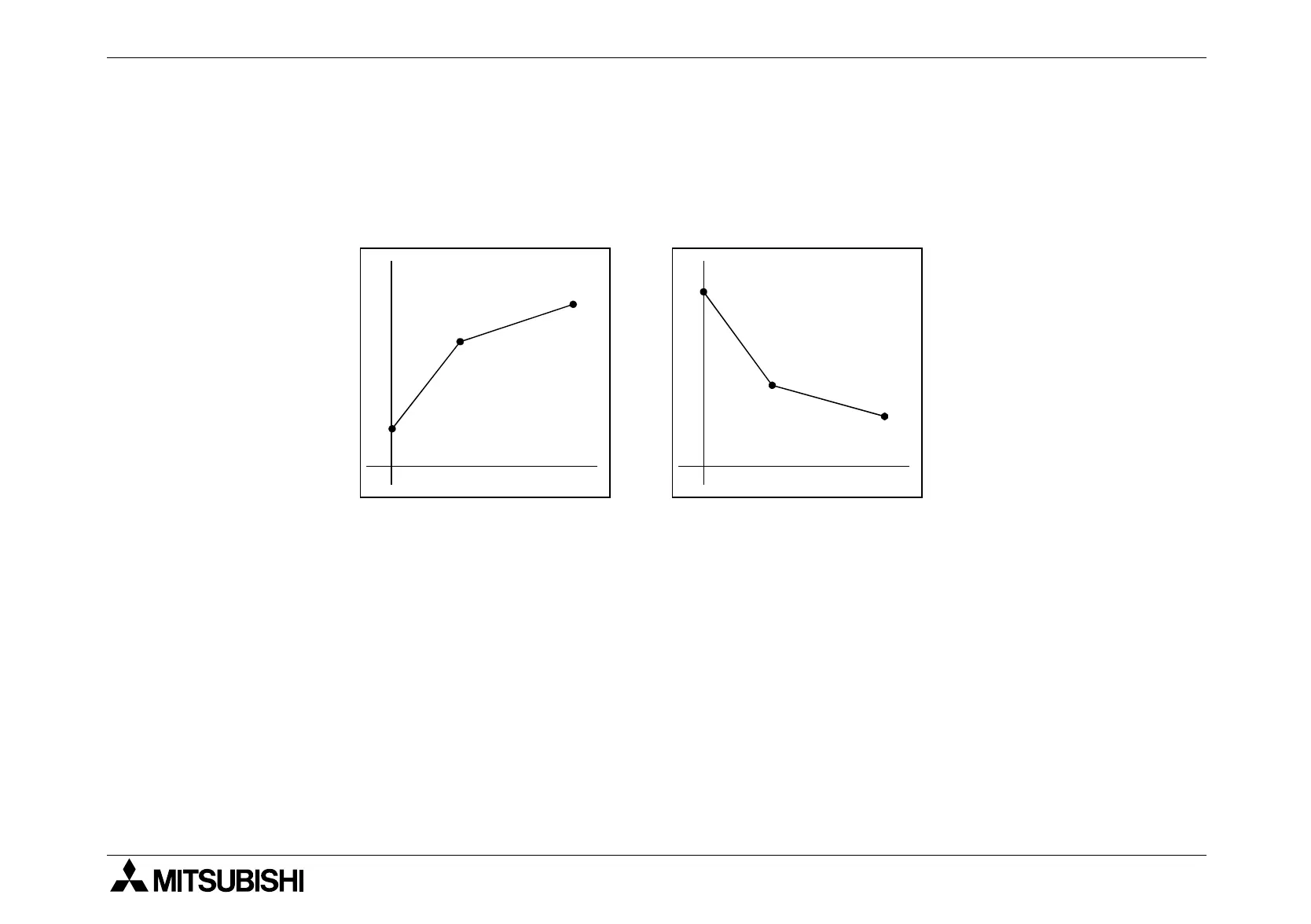

Digital value
Analog scale value
Change point 1
Change point 3
Change
point 2
Digital value
Analog scale value
Change point 1
Change point 3
Change point 2
✔✗
(Available) (Not available)
Figure 1
