FX2N
-5A Sp
ecia
l funct
ion block
Adjus
tment of I/
O Characteristi
cs 8
8-5

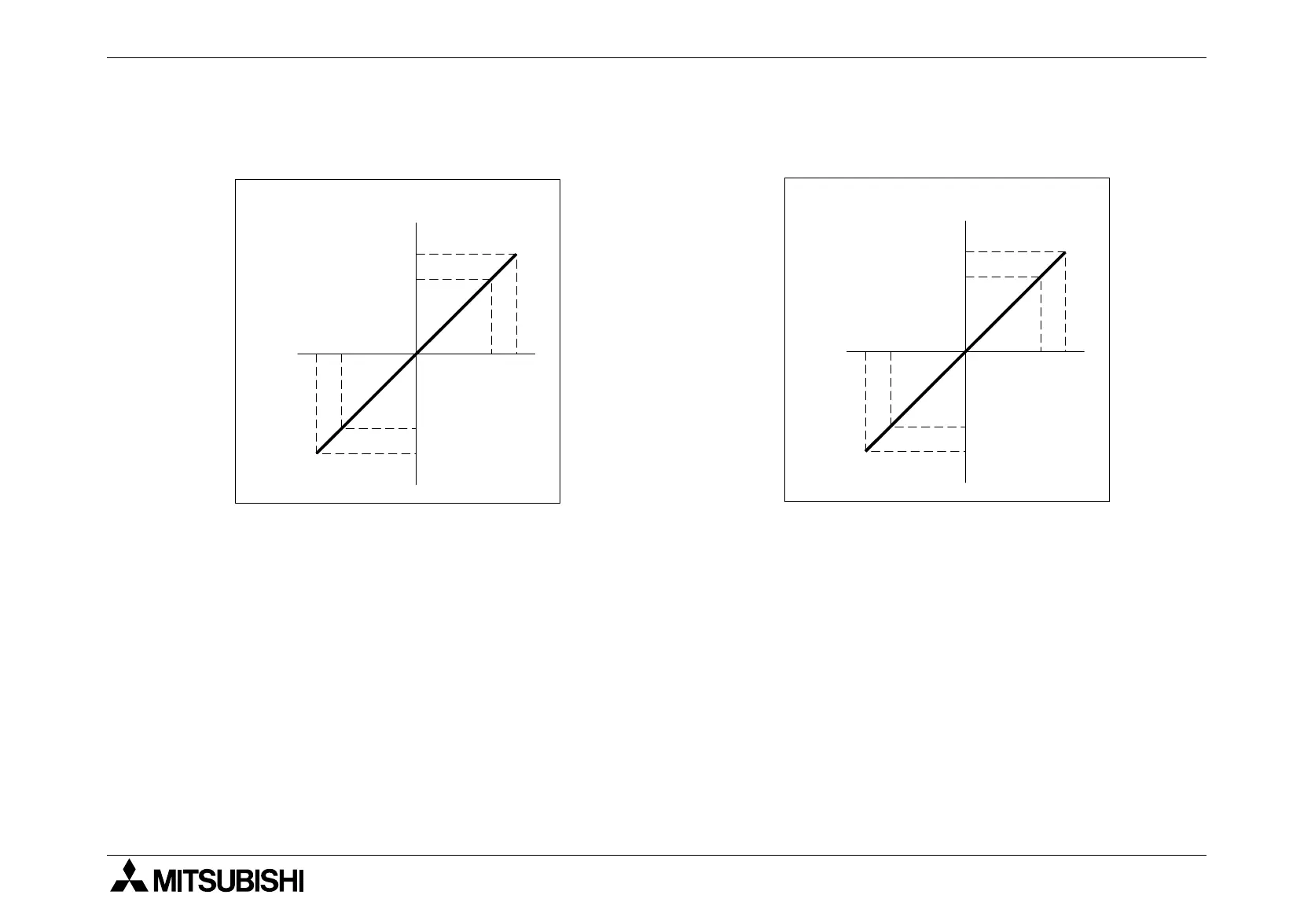

Output characteristics
0.V
oltag
e output, -32000 to
+32000
→
-10 to 10V
1.V
oltage output, -20
00 to +2000
→
-10 to 10V
Digital
va
lu
e
-10
10
32000
Approx.10.240
Approx.32767
Approx.-32768
-32000
Approx.-10.240
Output Volt
age (V)
Digital
val
u
e
-10
10
2000
Approx.10.240
Ap
prox
.
2
047
Approx.-2048
-2000
Approx.-10.240
Output Volt
age (V)
94
96
Table of Contents
Default Chapter
11
Table of Contents
11
1 Introduction
15
2 External Dimensions and Parts
17
3 Installation
19
4 Connection to PLC
21
5 Wiring
23
Caution
23
Input Wiring
24
Output Wiring
25
6 Specifications
27
7 Buffer Memory (BFM)
33
Buffer Memories (BFM) Lists
34
Details of Buffer Memories
44
BFM 0 Input Mode Specification (READ/WRITE)
44
BFM 1 Output Mode Specification (READ/WRITE)
46
BFM 6 to BFM 9 Averaged Input Channel Data (READ Only)
49
BFM 10 to BFM 13 Immediate Input Channel Data (READ Only)
49
BFM 14 Analog Output Data (READ/WRITE)
49
BFM 15 Calculated Analog Output Data (When Direct Control Function Is Active) (READ Only)
49
BFM 16 to BFM 17 Reserved
49
BFM 18 Hold/ Reset Analog Output When PLC Is Stopped (READ/WRITE)
50
BMF 19 Setting Change Enable/Disable (READ/WRITE)
51
BFM 20 Initialization Function (Reset All Values to Default) (READ/WRITE)
52
BFM 21 Writes I/O Characteristics (Offset/Gain Scaling Function Setting) (READ/WRITE)
53
BFM 22 Convenient Functions Setting (READ/WRITE)
54
(Read/Write)
55
BFM 24 Reserved
56
BFM 25 Filter-Level Selection Register (READ/WRITE)
57
BFM 26 Upper/Lower Limit Value Alarm Status (READ Only)
60
BFM 27 A/D Data Sudden Change Detection Status (READ Only)
62
BFM 28 Scale over Status (READ/WRITE)
64
BFM 29 Error Status
66
BFM 30 Model ID Code (READ Only)
69
BFM 31 to BFM 40 Reserved
69
BFM 41 to BFM 44 Analog Input Offset Data (READ/WRITE)
69
BFM 45 Analog Output Offset Data (READ/WRITE)
69
BFM 51 to BFM 54 Analog Input Gain Data (READ/WRITE)
70
BFM 55 Analog Output Gain Data (READ/WRITE)
72
BFM 71 to BFM 74 Lower Limit, Alarm Set Value (READ/WRITE)
73
BFM 81 to BFM 84 Upper Limit, Alarm Set Value (READ/WRITE)
73
BFM 91 to BFM 94 Sudden Change Detection Set Value (READ/WRITE)
75
BFM 99: Clears Upper/Lower Limit Value Error and Sudden Change Detection Error (READ/WRITE)
76
BFM 101 to BFM 108 Peak Value (Minimum Value) (READ Only)
77
BFM 111 to BFM 118 Peak Value (Maximum Value) (READ Only)
77
BFM 109: Peak Value Reset Flag (Minimum Value) (READ/WRITE)
78
BFM 119: Peak Value Reset Flag (Maximum Value) (READ/WRITE)
78
BM 200 to BFM 249 Scaling Function (READ/WRITE)
79
8 Adjustment of I/O Characteristics
91
Standard I/O Characteristics
91
Adjustment of I/O Characteristics
98
9 Example Program
101
Program Example for Analog Input/Output
101
Outline of FROM/TO Commands
104
Associated Manuals List
105
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Mitsubishi FX2N-5A and is the answer not in the manual?
Ask a question
Mitsubishi FX2N-5A Specifications
General
Brand
Mitsubishi
Model
FX2N-5A
Category
I/O Systems
Language
English
