TROUBLESHOOTING
ENGINE COOLING
14-7

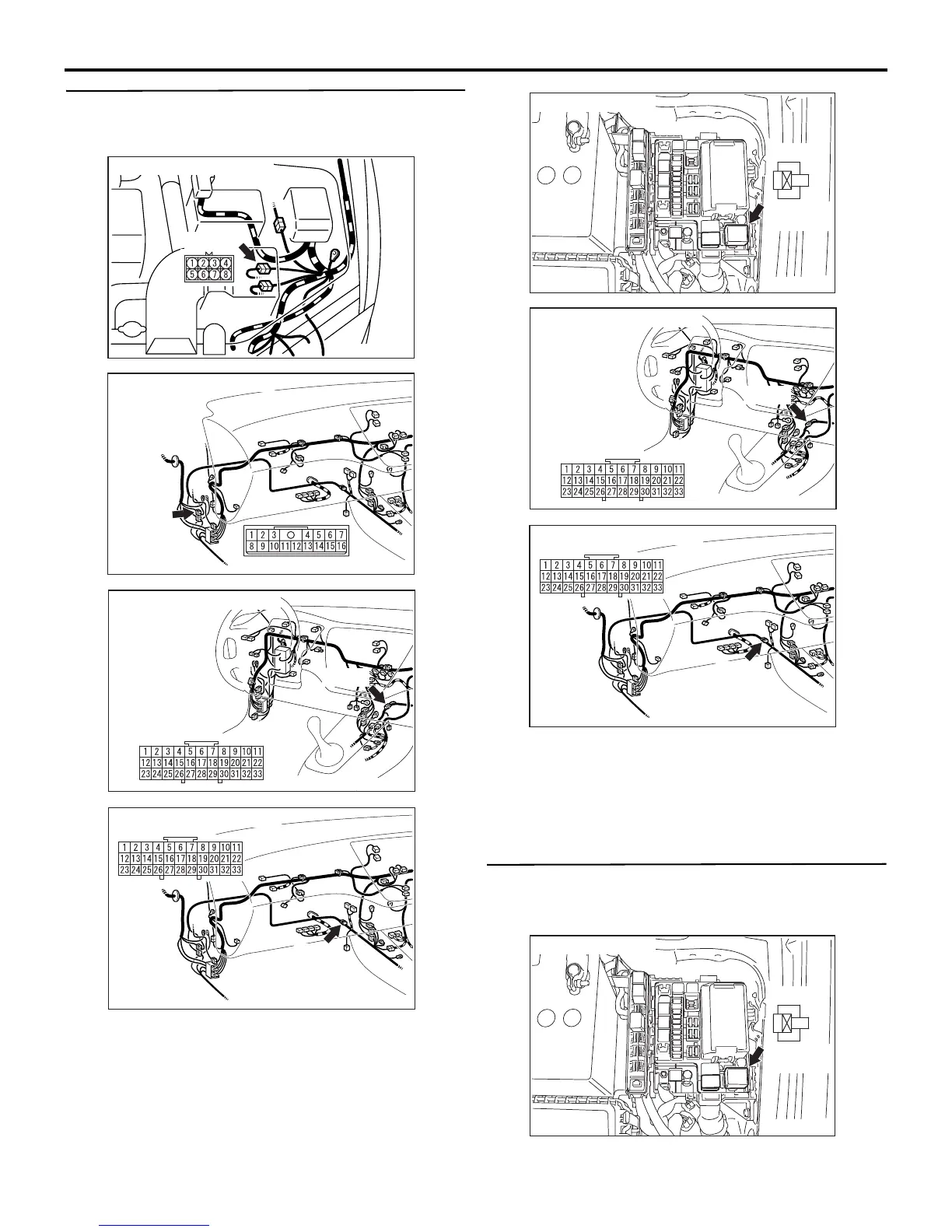

STEP 5. Check for harness damage between J/C
(6) C-105 and fan control relay connector A-09X.
NOTE:
AC210877
AC
Connector: A-13 <LHD>
A-13 (B)
AC310903
AB
Connector: C-31 <RHD>
C-31
AC310901
AB
Connector: C-105 <LHD>
C-105
AC310902
AB
Connector: C-105 <RHD>
C-105
After inspecting intermediate connector A-13 <LHD>
terminal 3, intermediate connector C-31 <RHD> ter
-
minal 12 and J/C (6) C-105 terminal 28, 33 inspect
the wires. If intermediate connector A-13 <LHD>,
C-31<RHD> and J/C (6) C-105 are damaged, repair
or replace them. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points
P.00-5.
AC310900
AB
Connector: A-09X
A-09X
3
1
4
2
Relay box
side
AC310901
AB
Connector: C-105 <LHD>
C-105
AC310902
AB
Connector: C-105 <RHD>
C-105
Q: Are the harness wires between J/C (6) C-105
terminal 28 and fan control relay connector A-09X
terminal 1 damaged?
YES : Repair or replace them, then go to Step 13.
NO : Go to Step 6.
STEP 6. Check for harness damage between fan
control relay connector A-09X terminal 3 and
earth.
AC310900
AB
Connector: A-09X
A-09X
3
1
4
2
Relay box
side
