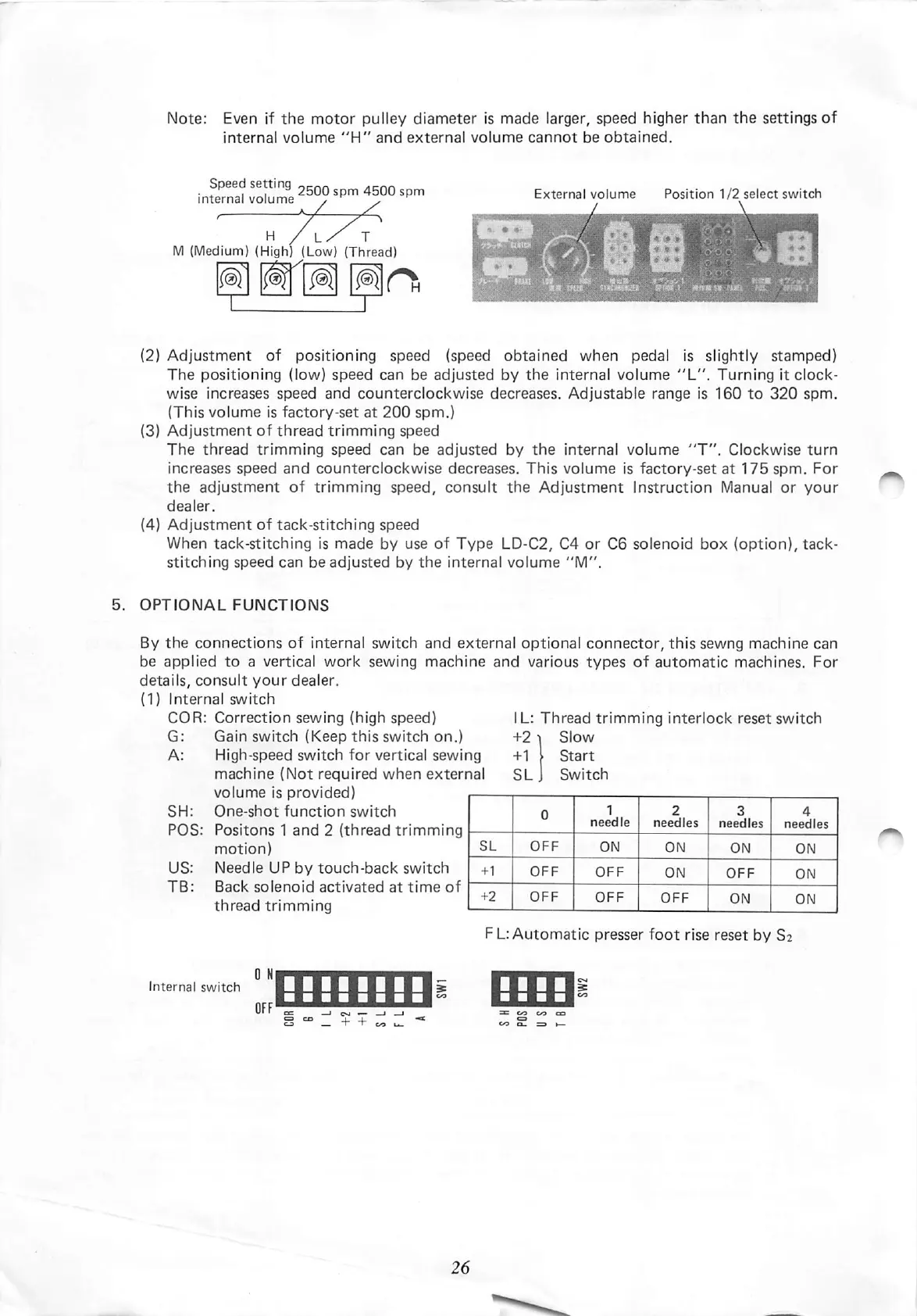

Note: Even if the motor pulley diameter is made larger, speed higher than the settings of
internal volume "H" and external volume cannot be obtained.
Speed setting jgOO spm 4500 spm
internal volume / ,
H / LX T
M (Medium) (High) (Low) (Thread)
(W M
External volume Position 1/2 select switch
(2) Adjustment of positioning speed (speed obtained when pedal is slightly stamped)
The positioning (low) speed can be adjusted by the internal volume "L". Turning it clock
wise increases speed and counterclockwise decreases. Adjustable range is 160 to 320 spm.
(This volume Is factory-set at 200 spm.)
(3) Adjustment of thread trimming speed
The thread trimming speed can be adjusted by the internal volume "T". Clockwise turn
increases speed and counterclockwise decreases. This volume is factory-set at 175 spm. For
the adjustment of trimming speed, consult the Adjustment Instruction Manual or your
dealer.
(4) Adjustment of tack-stitching speed
When tack-stitching is made by use of Type LD-C2, 04 or 06 solenoid box (option), tack-
stitching speed can be adjusted by the internal volume "M".
5. OPTIONAL FUNCTIONS
By the connections of internal switch and external optional connector, this sewng machine can
be applied to a vertical work sewing machine and various types of automatic machines. For
details, consult your dealer.
(1) Internal switch
COR: Correction sewing (high speed) IL: Thread trimming interlock reset switch
IL: Thread trimming interlock reset switch
-1-2 1 Slow
-1-1 Start
SL Switch
G: Gain switch (Keep this switch on.)
A: High-speed switch for vertical sewing
machine (Not required when external
volume is provided) I—
SH: One-shot function switch
POS: Positons 1 and 2 (thread trimming —
motion) _S
US: Needle UP by touch-back switch +
TB: Back solenoid activated at time of ~
thread trimming I
1
needle
2
needles
3
needles
4
needles
ON
ON
ON
ON
OFF
ON OFF
ON
OFF
OFF
ON
ON
FL: Automatic presser foot rise reset by S2
Internal switch
mimij' rrm
_ -I- -f
From the library of Superior Sewing Machine & Supply LLC - www.supsew.com
