Mitsubishi MAC-567IF-E User Manual

GB
GB-5
RESET
ERR
NET
MODE
UNIT
MODE

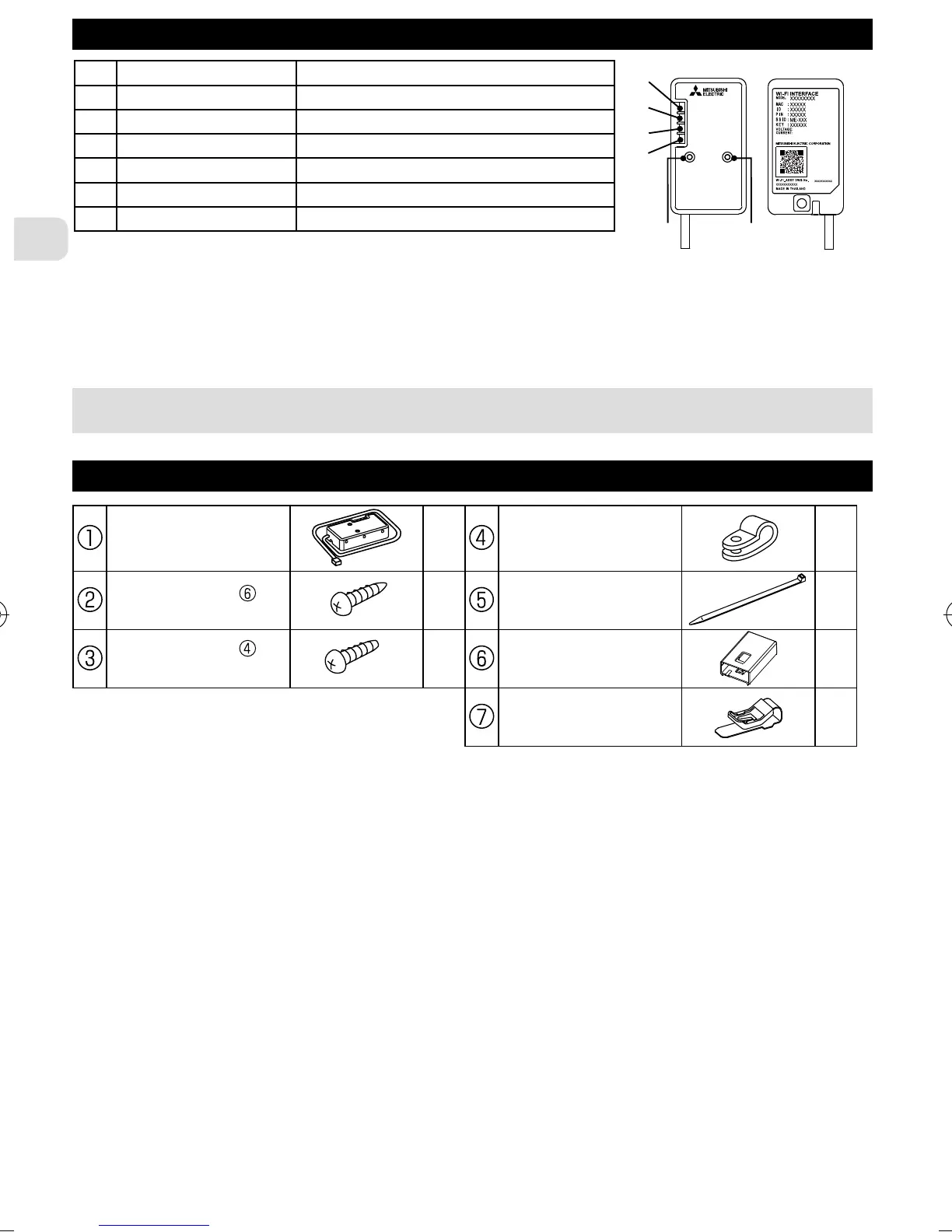

3. Parts
Interfaceunit
(withconnecting
cable)
1
Mountingcordclamp
1
Fixingscrewfor
3.5×16mm
2
Fastener
(forbundlingthewires)
1
Fixingscrewfor
4×16mm
1
Holder
1
Clip
1
(1)MODEswitch
●TheMODEswitchisusedforselectingmodesincongurations.
2. Product Introduction
No. Item Description
1 MODEswitch Itselectsmodes.
2 RESETswitch ItresetsthesystemandALLsettings.
3 ERRLED(Orange) Itshowsthenetworkerrorstate.
4 NETLED(Green) Itshowsthenetworkstate.
5 MODELED(Orange) ItshowstheAccesspointmodestate.
6 UNITLED(Green) Itshowstheindoorunitstate.
When the Wi-Fi interface is reset to the factory default, ALL the conguration information will
be lost. Take great care in implementing this operation.
(2)RESETswitch
●HolddowntheRESETswitchfor2secondstorebootthesystem.
●HolddowntheRESETswitchfor14secondstoinitializetheWi-Fiinterfacetothefactorydefault.
3
4
5
6
2
1
JG79Y198H01_01_en.indd 5 11/24/2016 10:35:09 AM

Mitsubishi MAC-567IF-E Specifications

General

Quantity	1
Compatibility	MSZ-FH25VE2 MSZ-FH35VE2 MSZ-FH50VE2
Supported network protocols	WPA2-PSK
Power consumption (typical)	2 W

Weight and Dimensions

Depth	18.5 mm
Width	44 mm
Height	79 mm
Weight	110 g
