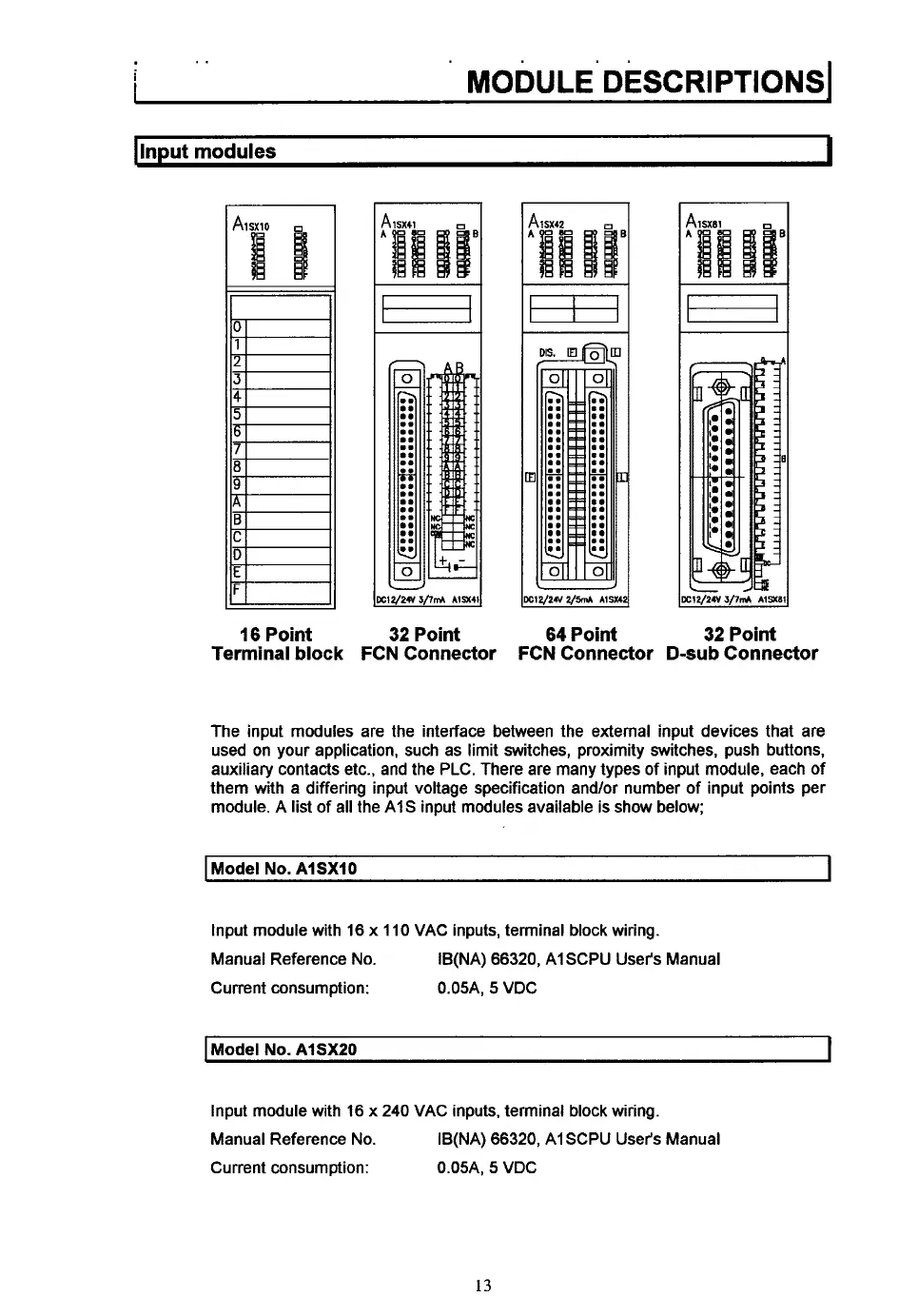

MODULE DESCRIPTIONS1
"'I I
16 Point
Terminal block
32 Point
FCN Connector
t
64 Point
FCN Connector
D-sub Connector
The input modules are the interface between the external input devices that are
used on your application, such as limit switches, proximity switches, push buttons,
auxiliary contacts etc., and the PLC. There are many types of input module, each of
them with a differing input voltage specification and/or number of input points per
module. A
list of all the AIS input modules available is show below;
Model No. AISXIO
I
Input module with 16 x 110 VAC inputs, terminal block wiring.
Manual Reference No.
Current consumption: 0.05A,
5 VDC
IB(NA)
66320, AISCPU User's Manual
I Model No. AISXZO
I
Input module with 16 x 240 VAC inputs, terminal block wiring.
Manual Reference No.
Current consumption: 0.05A,
5 VDC
IB(NA)
66320, AI SCPU User's Manual
13
