i INSTALLATION

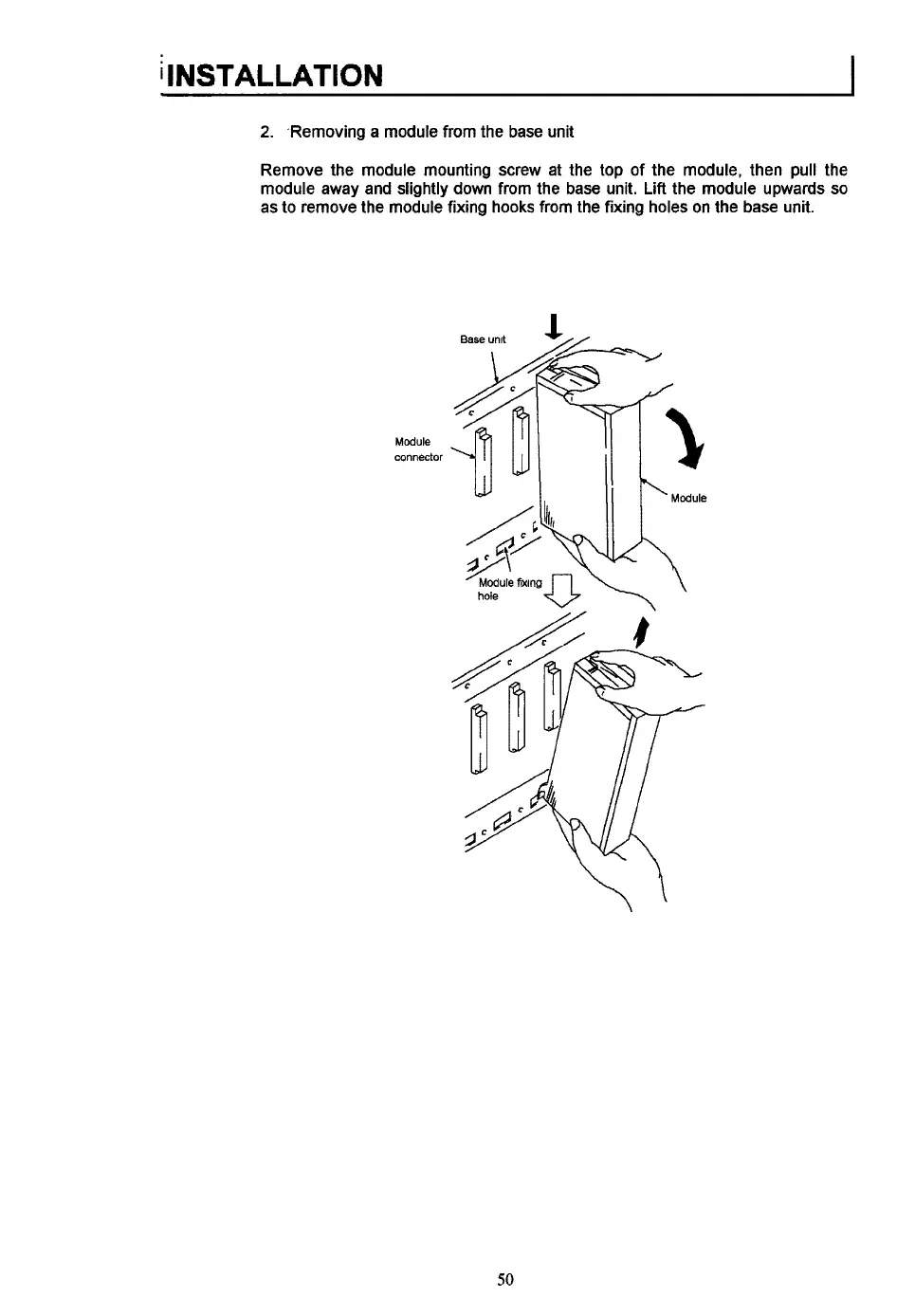

2. .Removing a module from the base unit
Remove the module mounting screw at the top of the module, then pull the
module away and slightly down
from the base unit. Lift the module upwards so
as to remove the module fixing hooks from the fixing holes on the base unit.
MDdule
connector
50
