Mitsubishi MS09NW - 12-2 MS12 NN, MS15 NN, MS17 NN INDOOR UNIT: Removing the indoor fan motor and line flow fan

42

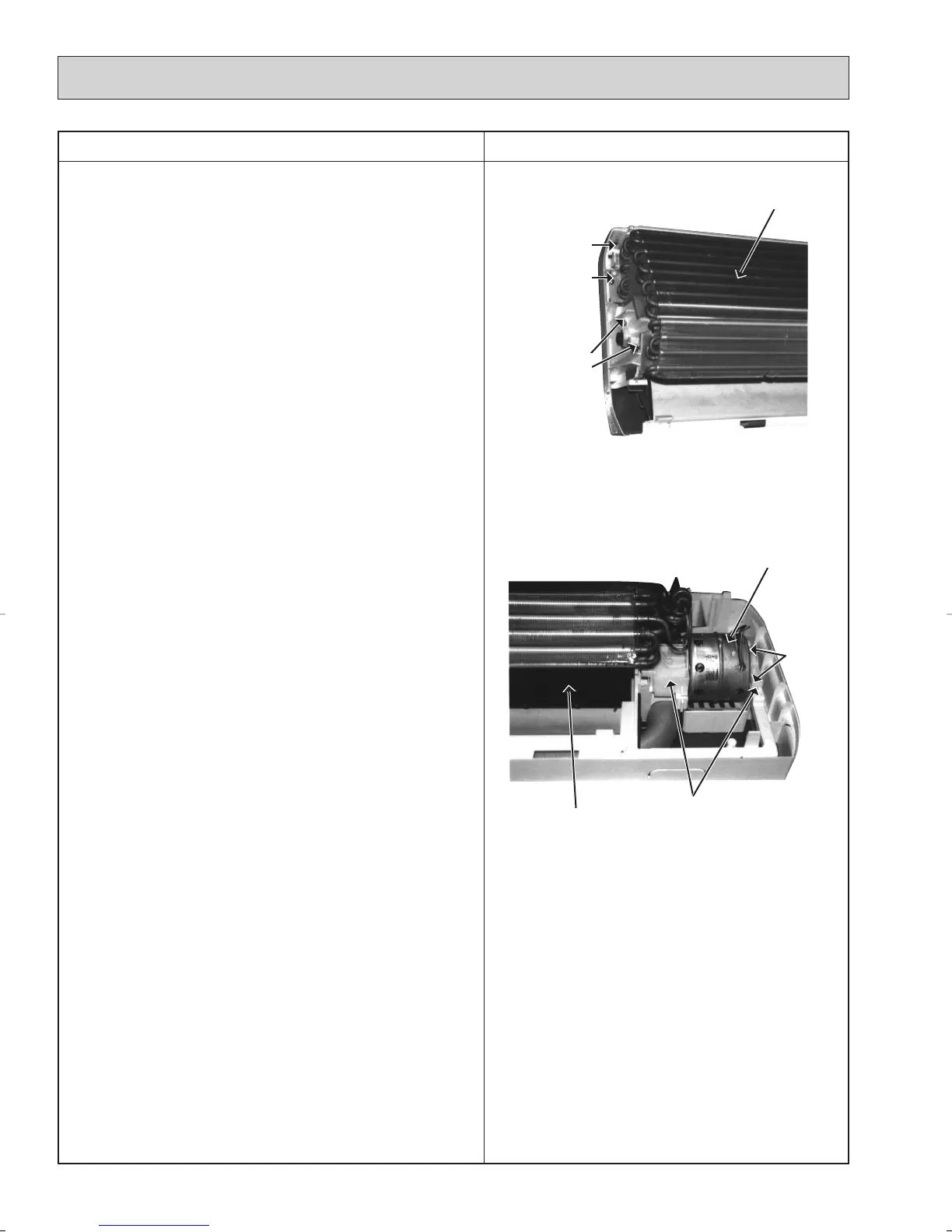

OPERATING PROCEDURE PHOTOS
3. Removing the indoor fan motor and the line flow fan
(1) Remove the front panel.
(2) Remove the electrical box.
(3) Unhook the catch on the both sides of the nozzle assem-
bly.
(4) Remove the nozzle assembly.
(5) Remove the screws of the bearing support.
(6) Remove the screw of the heat exchanger and unhook the
catch.
(7) Lifting the heat exchanger, remove the bearing support.
(8) Remove the motor support.
(9) Loose the screw fixing the line flow fan, remove the line
flow fan.
(10) Remove the screws of the side cover, remove the fan
motor.
Photo 3
Photo 4
Heat exchanger
screw
Catch
Bearing support
screws
Heat exchanger
Indoor fan motor
Line flow fan Motor band
Fan
motor
screws
