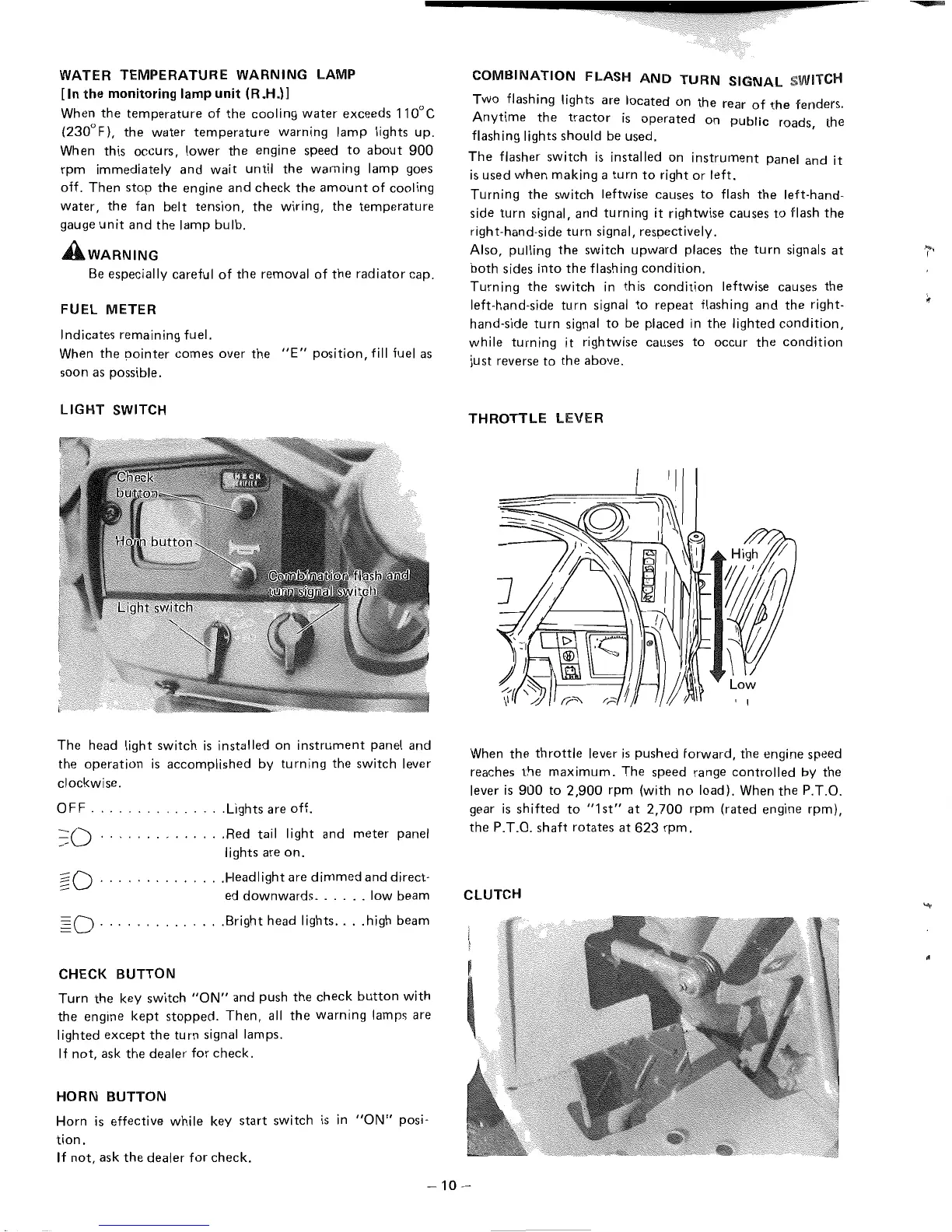

WATER TEMPERATURE WARNING LAMP
[In the monitoring lamp unit (R.H.)]
When the temperature of the cooling water exceeds 110°C
(230°F), the water temperature warning lamp lights up.
When this occurs, lower the engine speed to about 900
rpm immediately and wait until the warning lamp goes
off. Then stop the engine and check the amount of cooling
water, the fan belt tension, the wiring, the temperature
gauge unit and the lamp bulb.
AWARNING
Be especially careful of the removal of the radiator cap.
FUEL METER
Indicates remaining fuel.
When
the pointer comes over the "E" position, fill fuel as
soon as possible.
LIGHT SWITCH
The head light switch is installed on instrument panel and
the operation is accomplished by turning the switch lever
clockwise.
OFF.
............. Lights are off.
. . . . . . . . . . . . . Red tail light and meter panel
lights are
on .
§o·········
. . . Headlight are dimmed and direct-
ed downwards ...... low beam
~O .............. Bright head lights .... high beam
CHECK BUTTON
Turn the key switch "ON" and push the check button with
the engine kept stopped. Then, all the warning lamps are
lighted except the turn signal lamps.
If
not, ask the dealer for check.
HORN BUTTON
Horn is effective while key start switch is in "ON" posi-
tion.
If not, ask the dealer for check.
COMBINATION FLASH AND TURN SIGNAL SWITCH
Two flashing lights are located on the rear of the fenders.
Anytime the tractor is operated on pUblic roads, the
flashing lights should be used.
The flasher switch is installed on instrument panel and it
is used when making a tu rn to right or left.
Turning the switch leftwise causes to flash the left-hand-
side turn signal, and turning it rightwise causes to flash the
right-hand-side turn signal, respectively.
Also, pulling the switch upward places the turn signals at
both sides into the flashing condition.
Turning the switch in this condition leftwise causes the
left·hand-side turn signal to repeat flashing and the right-
hand-side turn signal to be placed in the lighted condition,
while turning it rightwise causes to occur the condition
just reverse to the above.
THROTTLE LEVER
When the throttle lever is pushed forward, the engine speed
reaches the maximum. The speed range controlled by the
lever is 900 to 2,900 rpm (with no load). When the P.T.O.
gear
is shifted to "1 st" at 2,700 rpm (rated engine rpm),
the P.T.O. shaft rotates at 623 rpm .
CLUTCH
-10 -
