MT160D

Mitsubishi MT160D Instruction Book

60 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Page #3 background image

Loading...

Page #3 background image

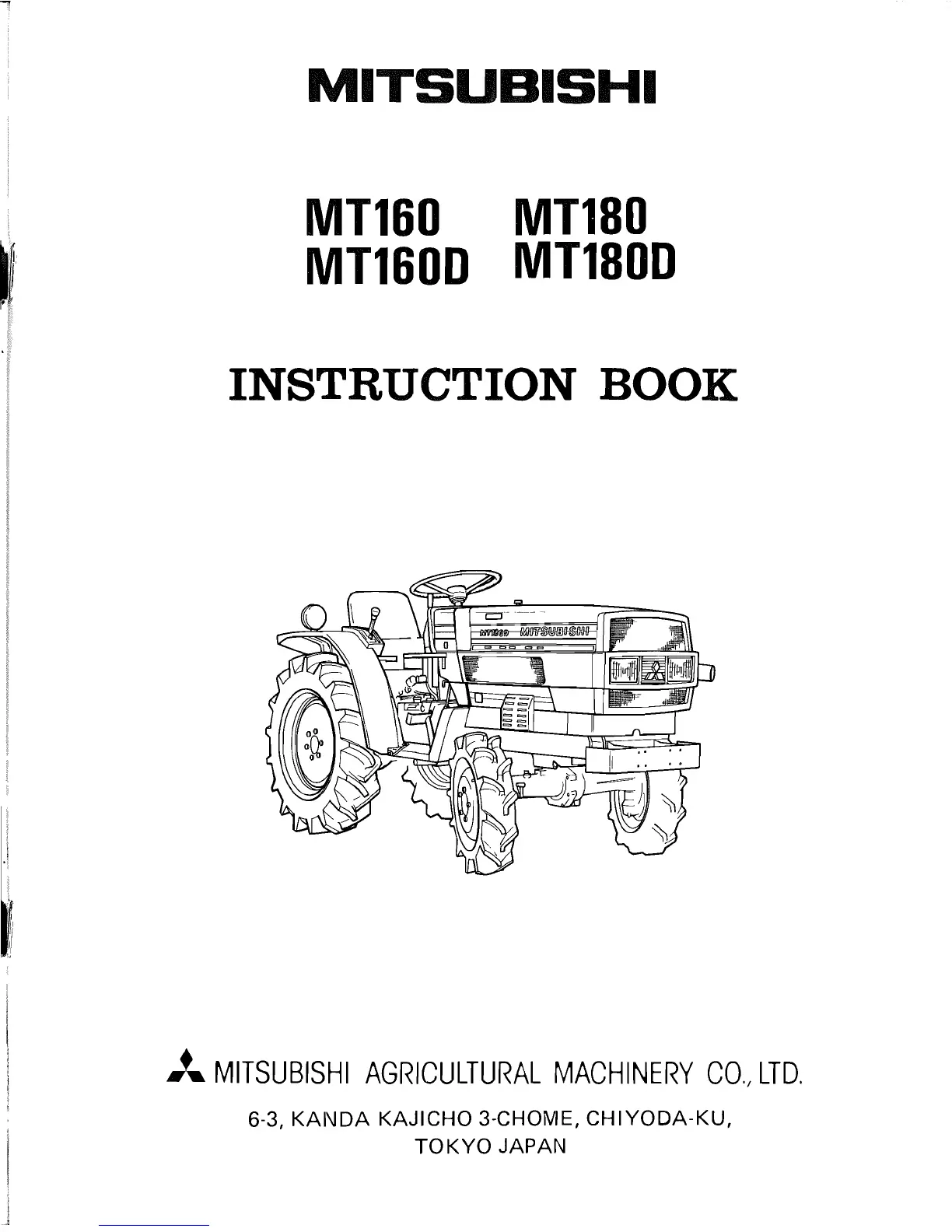

MITSUBISHI

MT160

MT180

MT160D

MT180D

INSTRUCTION BOOK

1..

MITSUBISHI

AGRICULTURAL

MACHINERY

CO.,

LTD.

6-3,

KANDA

KAJICHO 3-CHOME,

CHIYODA-KU,

TOKYO

JAPAN

Table of Contents

Table of Contents7
Section 1. Safety Precautions11
- General Operating Safety Precaution11
- Basic Safety Requirements for Maintenance11
- Operation of the Tractor12
Section 2. External View and Nomenclature of each Part16
- Instruments and Controls18
- Key Start Switch19
- Glow Signal19
- Glow Plug19
- Tractor Meter19
- Battery Charge Warning Lamp19
- Oil Pressure Warning Lamp19
- Water Temperature Warning Lamp20
- Fuel Meter20
- Light Switch20
- Check Button20
- Horn Button20
- Combination Flash and Turn Signal Switch20
- Throttle Lever20
- Clutch20
- Brake21
- Parking Brake21
- Foot Speed Control Pedal21
- Power Take off21
- Differential Lock22
- 8-Speed Transmission23
- 4-Wh Ee I Drive Sh Ift Lever23
- Safety Starter Switch23
Section 4. Operation24
- Before Operating the Tractor24
- Starting the Engine24
- Starting in Cold Weather24
- Engine Block Heater24
- After the Engine Is Started24
- Driving the Tractor24
- Stopping the Tractor25
- Tread Adjustment25
  - Front25
  - Rear26
- Rear Wheel Installation26
- Ballast Weight26
- Tire Pressure26
- Operator's Seat27
- Tool Box27
- Drawbar27
- 3-Point Linkage27
- Hydraulic System27
  - Flow Control Knob28
  - External Hydraulic Service29
  - Power Take off for Front Loader (Option)29
- P.t.o. Guard29
  - REGULAR MAINTENANCE Guide30
- Service Schedu Ie30
- Service Schedule Chart30
- Daily Inspection30
- A-Service (Every 50 Hours of Operation)30
  - 50-Hour Service for a New Tractor31
  - 50-Hour Service for Other than New Tractor31
B-Service (Every 100 Hours of Operation)31
C-Service (Every 200 Hours of Operation)31
D-Service (Every 400 Hours of Operation)31
Maintenance I Nterval Chart32
Lubrication Table33
Greasing Diagram34
- Preventive Service Instruction36
Hood and Side Covers Opening/Closing36
Checking the Radiator Coolant Level36
Coolant Replacement36
Precautions on Cooling System in Cold Weather36
- Antifreeze36
Fuel System Air Bleeding37
- Fuel Filter Air Bleeding37
- Fuel Pump Air Bleeding37
- Fuel Pipe Air Bleeding37
- Fuel Filter Element Replacement38
- Cleaning the Fuel Tank38
Checking the Engine Oil Level38
Engine Oil Replacement38
Engine Oil Filter Replacement39
Injection Nozzle Inspection39
Cylinder Head Bolt Tightening39
Valve Clearance Adjustment40
- Valve Clearance Adjustment Procedure40
- Air Cleaner40
- Fan Belt Tension Adjustment41
- Battery (Outside North America)41
- Reoperation after Storage50
Wiring Diagram51
Specifications and Data52
- Engine52
- Cooling System52
- Fuel System52
- Lubrication System52
- Air Cleaner52
- Governor52
- Electrical System52
- Chassis Dimensions53
