the
)ly.
:eps
:cks
ust-
mal
the
the
.ock
1ark
ront
pen
the
also
the
lcribe
face
of
~e
I and
lided

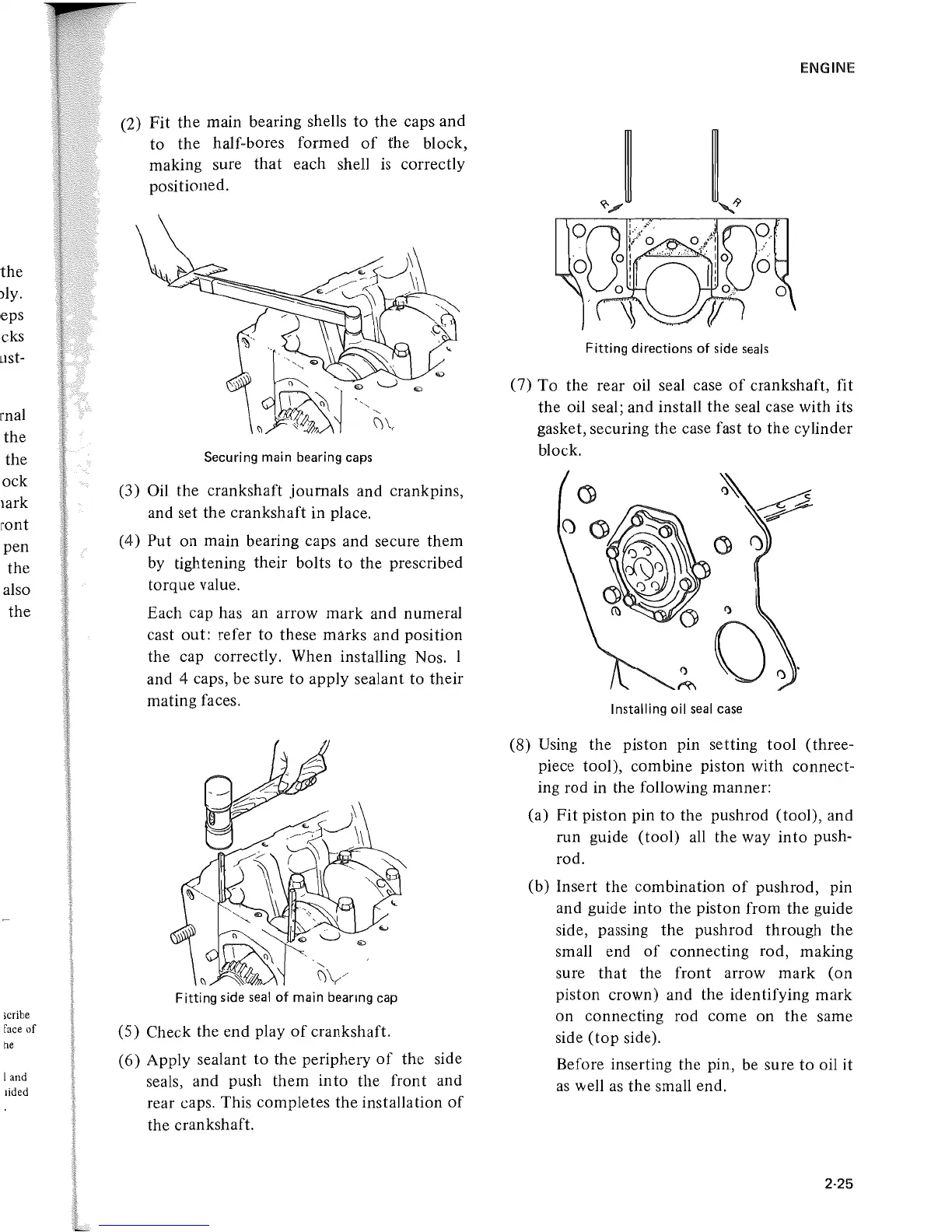

(2)
Fit
the main bearing shells
to
the
caps and
to the half-bores formed
of
the block,
making sure
that
each shell
is
correctly
positioned.
Securing main bearing caps
(3) Oil the crankshaft journals and crankpins,
and set the crankshaft in place.
(4)
Put
on
main bearing caps and secure them
by tightening their bolts
to
the
prescribed
torque value.
Each cap has an arrow mark and numeral
cast out: refer to these marks and position
the cap correctly. When installing Nos. I
and 4 caps, be sure
to
apply sealant to their
mating faces.
<:I
Fitting side seal of main beanng cap
(5) Check the end play
of
crankshaft.
(6) Apply sealant to the periphery
of
the side
seals, and push them
into
the
front and
rear caps. This completes the installation
of
the crankshaft.
ENGINE
Fitting directions of side seals
(7)
To
the rear oil seal case
of
crankshaft, fit
the oil seal; and install the seal case with its
gasket, securing the case fast to
the
cylinder
block.
()
~
Installing
oil
seal
case
(8) Using the piston pin setting tool (three-
piece tool), combine piston with connect-
ing rod in the following manner:
(a)
Fit
piston pin to the pushrod (tool), and
run
guide (tool) all the way into push-
rod.
(b) Insert
the
combination
of
pushrod, pin
and guide into the piston from the guide
side, passing
the
pushrod through the
small end
of
connecting rod, making
sure
that
the front arrow mark (on
piston crown) and the identifying mark
on
connecting rod corne
on
the same
side (
top
side).
Before inserting
the
pin,
be
sure
to
oil
it
as
well
as
the small end.
2-25
