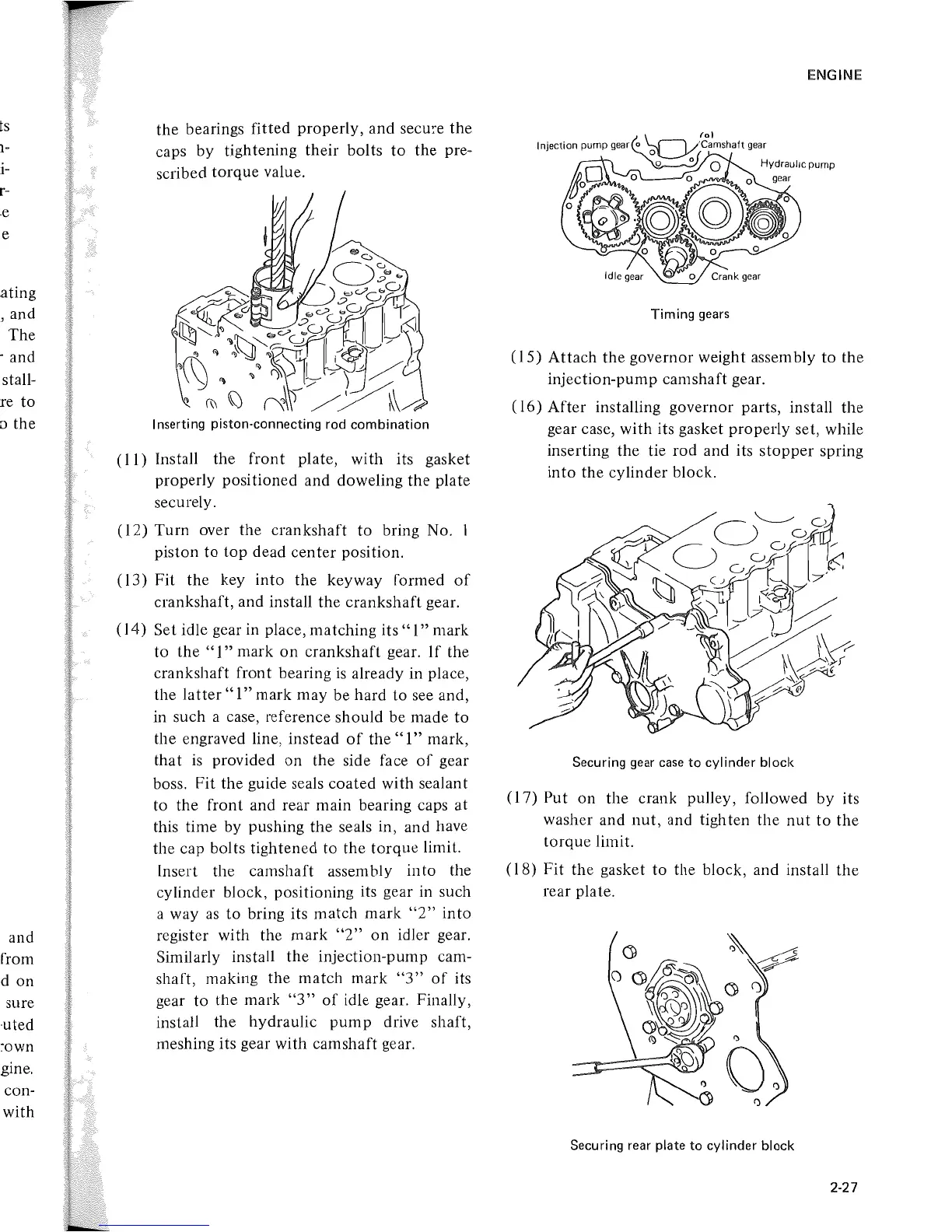

the bearings fitted properly, and secure the
caps by tightening their bolts to the pre-
scribed
torque value.
I nserting piston-connecting rod combination
(11) Install the front plate, with its gasket
properly positioned and doweling the plate
securely.
(12)
Turn over the crankshaft to bring No. I
piston to top dead center position.
(13)
Fit the key into the keyway formed of
crankshaft, and install the crankshaft gear.
(14) Set idle gear in place, matching its" 1" mark
to the" 1" mark on crankshaft gear. If the
crankshaft front bearing is already in place,
the latter" 1" mark may be hard to see and,
in
such a case, reference should be made to
the engraved line, instead of the" 1" mark,
that is provided on the side face of gear
boss.
Fit the guide seals coated with sealant
to the front and rear main bearing caps at
this time by pushing the seals in, and have
the cap
bolts tightened to the torque limit.
Insert
the camshaft assembly into the
cylinder block, positioning its gear in such
a way
as to bring its match mark "2" into
register with the mark "2" on idler gear.
Similarly install
the injection-pump cam-
shaft, making
the match mark "3" of its
gear
to the mark "3" of idle gear. Finally,
install
the hydraulic pump drive shaft,
meshing its gear
with camshaft gear.
ENGINE
Timing gears
(15) Attach the governor weight assembly to the
injection-pump camshaft gear.
(16) After installing governor parts, install the
gear case,
with its gasket properly set, while
inserting the tie
rod and its stopper spring
into the cylinder block.
Securing gear case to cylinder block
(17) Put on the crank pulley, followed by its
washer
and nut, and tighten the nut to the
torque limit.
(18) Fit the gasket to the block, and install the
rear plate.
Securing rear plate to cylinder block
2-27
