7. How to shut down High voltage (pull out the service plug)
CAUTION:
Do not remove the service plug for 5 minutes later disconnecting the 12V starter battery negative terminal.
1) Wear Personal Protective Equipment (PPE) and observe the procedure below to remove the service plug.
Pulling out the service plug will shut down the high voltage circuit in the drive battery.

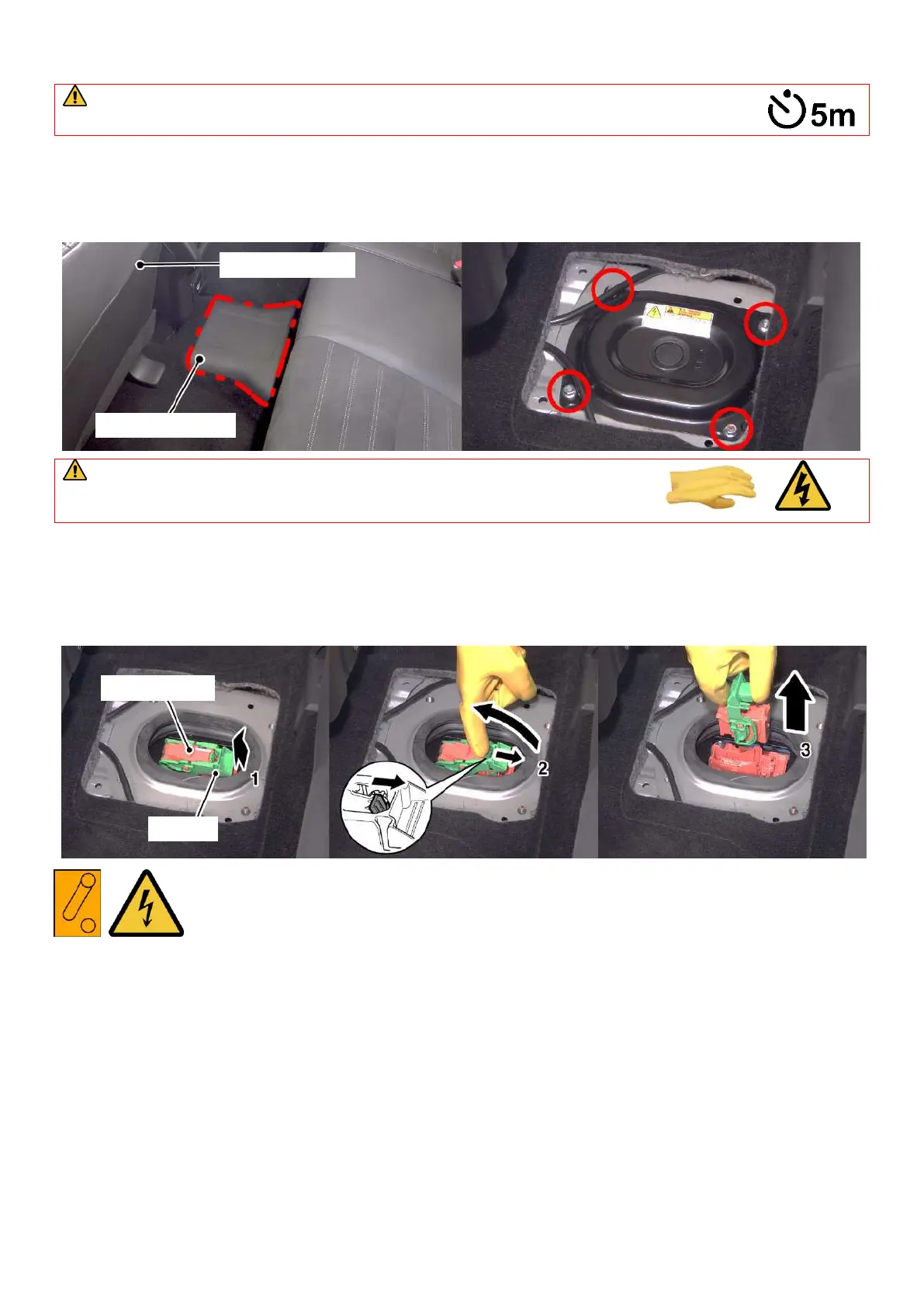

2) Remove the service lid cover in the footwall under the middle of the second seat. (four clips)
Use an open end wrench (10mm) to remove the service lid. (four nuts)
WARNING；
Always wear Personal Protective Equipment (PPE) when pulling out the service plug.
3) Wear Personal Protective Equipment (PPE) and remove the service plug.
1. Raise the lever of the service plug until it stops.
2. Raise the service plug while releasing the lever lock of the service plug.
3. Pull the service plug upward to remove it.
*: Refer to “10. Explanation of pictogram used”
Service lid cover
Driver’s seat
Lever
Service plug
