7. How to shut down High voltage (pull out the service plug)

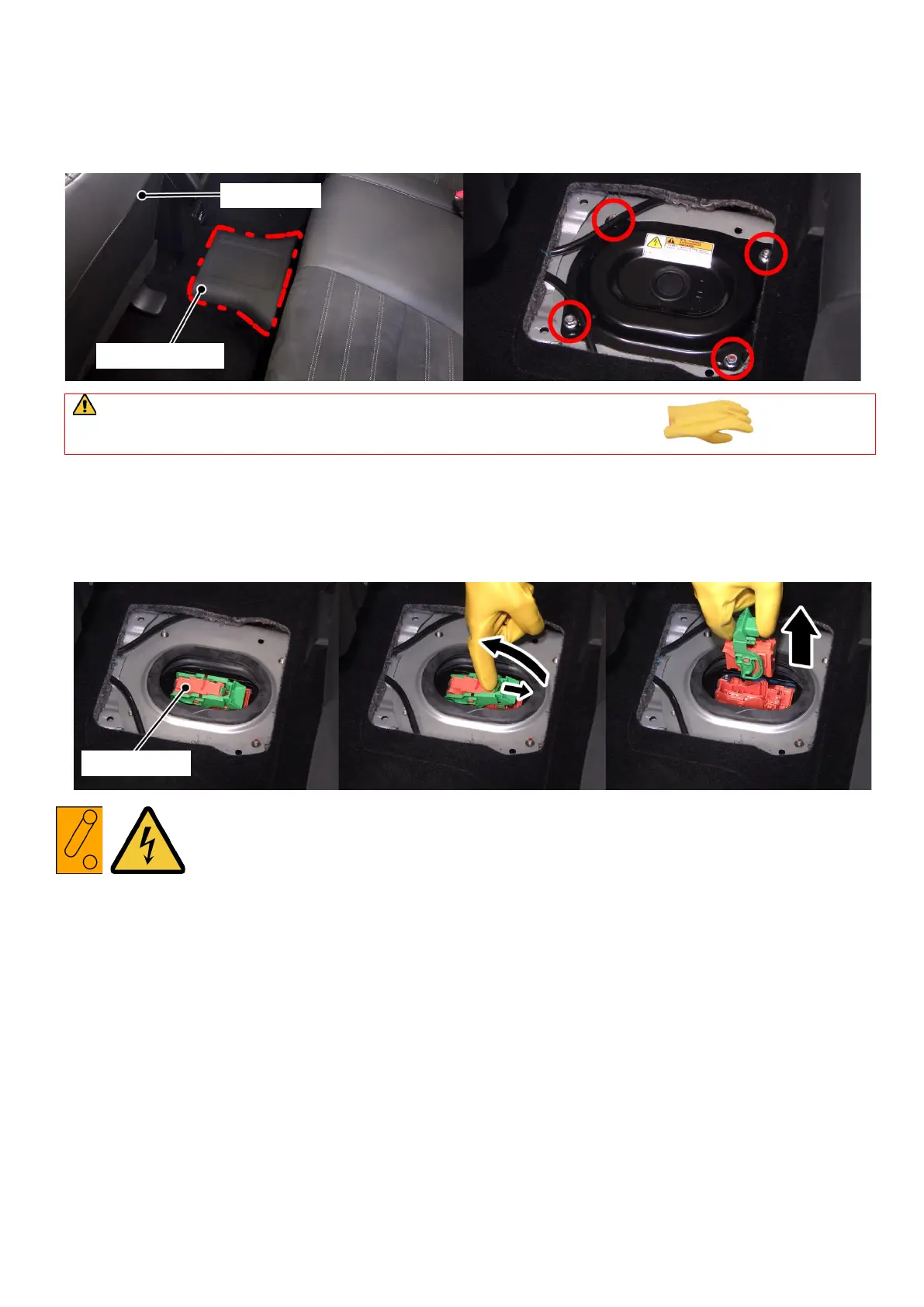

1) Wear Personal Protective Equipment (PPE) and observe the procedure below to remove the service plug.
Pulling out the service plug will shut down the high voltage circuit in the drive battery.
2) Remove the service lid cover in the footwall under the middle of the second seat. (four clips)
Use an open end wrench (10mm) to remove the service lid. (four nuts)
3) Wear Personal Protective Equipment (PPE) and remove the service plug.
1. Release the lock lever on the service plug.
2. Raise the service plug lever.
3. Remove the service plug by pulling it upward.
*: Refer to "10" for the explanation of pictogram
WARNING;
Always wear Personal Protective Equipment (PPE) when pulling out the service plug.
Service lid cover
Driver’s ｓｅａｔ
Service plug
1
2
3
