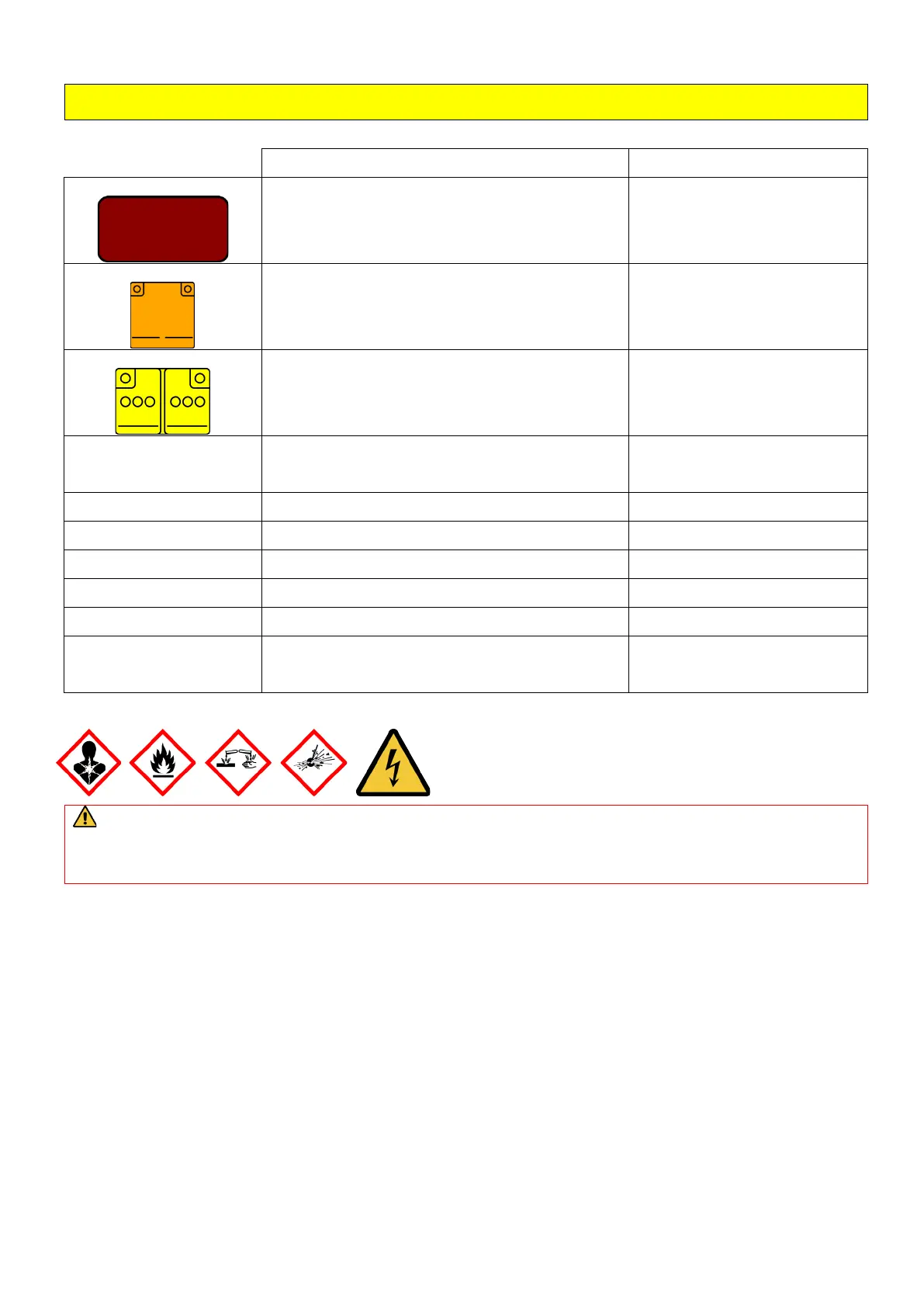

5.Stored energy / liquids / gases / solids
Fluids / gases used in this vehicle
Capacity & Type Colour
45 liters Light orange
13.8 kWh Clear & colourless
36 Ah Clear & colourless
Engine oil 4.3 liters (Oil pan)
0.3 liters (Oil filter)
Dark brown
Engine coolant 6.5 – 7.5 liters Blue-green
Rear Motor coolant 6.5 liters Blue-green
Brake fluid As required Clear & colourless
Front Motor fluid 2.2 liters Red
Transaxle fluid 4.31 liters (Front : 3.46 liters / Rear : 0.85 liters) Red
Refrigerant
(air conditioner)
HFC-134a* : 520 – 560g
HFO-1234yf : 495 – 535g
Non colour
* : Vehicles for Ukraine
The battery assembly cover should never be breached or removed under any circumstances, including fire. Doing
so might result in severe electrical burns, shock or electrocution.
*: Refer to "10" for the explanation of pictogram
Drive Battery information
Drive battery
It is the battery to operate the motor and the air conditioning. In addition to the drive battery,
OUTLANDER PHEV has the auxiliary battery to operate lamps, wipers, etc.
Compact, light-weight lithium ion battery with high energy density is used for the drive battery.
The risk in normally use
The Plug-in Hybrid EV System uses high voltage up to DC 300V. The system can be hot during and after
starting and when the vehicle is shut off. Be careful of both the high-voltage and the high temperature.
Follow the warning labels that are attached to the vehicle.
Always assume the high voltage battery and associated components are energized and fully charged.
Never perform servicing and rescue when READY indicator is illuminating or when the charging indicator
is illuminating or flashing because the high-voltage system is operating.
In case of a collision
If you detect leaking fluids, sparks, smoke, flames, gurgling, popping or hissing noises originating from the
high-voltage battery component, contact emergency services immediately. This may result in a fire.
